Magtrol DSP7000 User Manual

25
Magtrol Model DSP7000 Dynamometer Controller
Chapter 3 – Installation/Configuration
SETUP
5.b. If using a Powder Brake Dynamometer, press SHIFT. The display should appear as follows:
POWER
BRAKE STATUS SET POINT SET POINT PID
TORQUE SPEED USER DISPLAY
TSC2 MAX TORQUE
X.XXX
Figure 3–14 TSC2 Powder Brake Setup Menu
Press the TORQUE UNITS button and use  and  buttons and Decrease/Increase dial to
set desired max torque. Press SHIFT 3 times to complete the initial setup and return to the
main menu.
3.2.5 eDDy-CurrenT or powDer Brake DynaMoMeTer SeTup
3.2.5.1 Hardware Connection
USB
PC
M-TEST
Excitation
Torque
TSC 401
Torque-Speed
Conditioner
DES Power Supply
Speed
Eddy-Current (WB)
OR Powder Brake (PB)
Dynamometer
DSP
7001 Dynamometer Controller

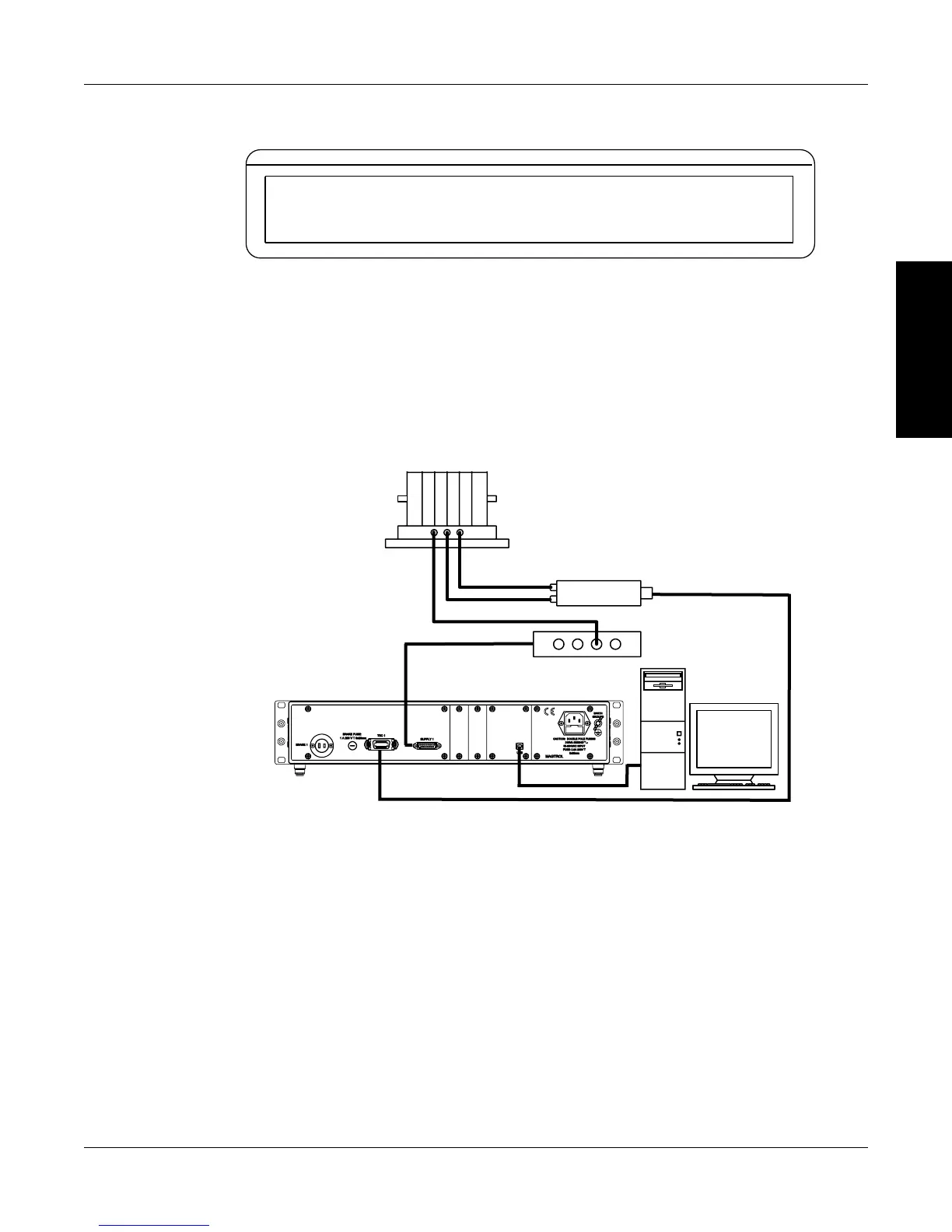

Figure 3–15 Eddy-Current or Powder Brake Dynamometer Setup
3.2.5.2 Software Conguration
1. Turn on the DSP7000 and proceed to the dynamometer configuration menu. See Section
3.2.1 – Dynamometer Configuration Menu.
2. Press POWER UNITS until WB or PB is reached.
3. Press the MAX SPEED button and use  and  buttons and Decrease/Increase dial to set
desired scale factor. Press SCALE I to add a filter if desired.
