Magtrol Model DSP7000 Dynamometer ControllerChapter 8 – Optional Equipment
operation
8.3.3 CoMMuniCaTion paraMeTerS
• Noparity
• 8databits
• 1stopbit
• Noprotocol
8.3.4
BauD raTe
There are eight different baud rates to choose from including 300, 600, 1200, 2400, 4800, 9600,
19200 and 115200. To set up the desired baud rate, follow the instructions below.
1. Press SHIFT and release.
2. Press the SETUP button. The display will appear as shown in Figure 3–5 Setup Menu.
3. Press SCALE P button to select system.
3. Press MAX SPEED button until the desired baud rate is reached.
4. Press SHIFT 2 times to exit and return to main menu.
8.4 CHECKING THE DSP7000-TO-PC CONNECTION
8.4.1 gpiB CoMMuniCaTion CHeCk
1. Launch the application Measurement and Automation Explorer in PC desktop.

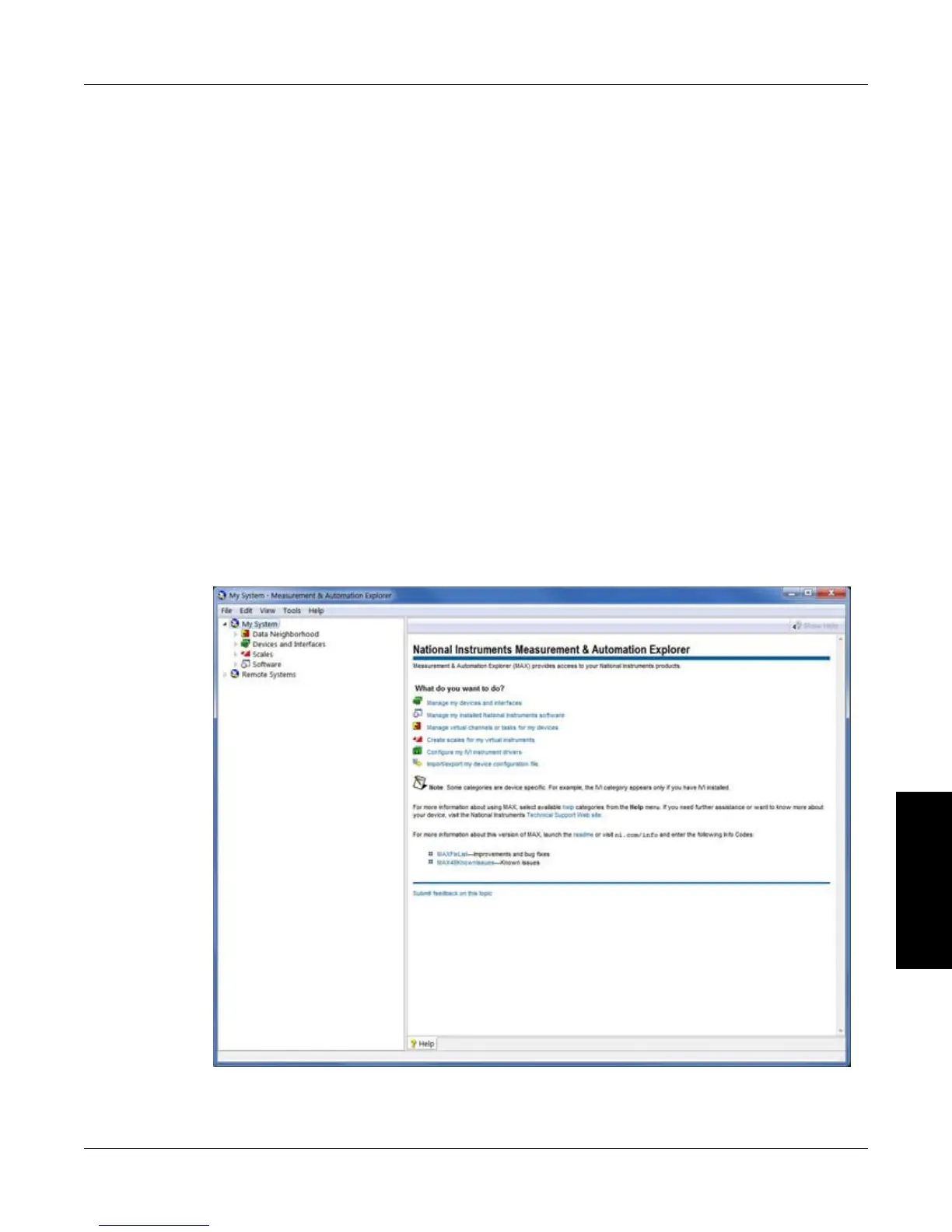

Figure 8–16 Measurement and Automation Explorer Window
