Magtrol DSP7000 User Manual

32
Magtrol Model DSP7000 Dynamometer ControllerChapter 3 – Installation/Configuration
SETUP
14. Select TANDEM. The display will appear as shown in Figure 3-22 Tandem Configuration
Menu.
14. Press the SCALE I button until the menu says “YES”.
15. Press SHIFT once to reach the Maximum Speed Excited Menu as shown below.
POWER
BRAKE STATUS SET POINT SET POINT PID
TORQUE SPEED USER DISPLAY
MAXIMUM SPEED EXCITED OF PB
(CLUTCH DEACTIVATION)
XXXXX
Figure 3–24 Maximum Speed Excited Menu
16. Press the SCALE P button and use  and  buttons and Decrease/Increase dial to set
maximum speed excited of PB.
17. Press SHIFT 3 times to complete initial setup and return to the main menu.
Note: The TSC key is disabled in tandem configuration.
3.2.10 in-line Torque TranSDuCer wiTH Brake
3.2.10.1 Hardware Connection
Torque Transducer
(TM)
DES Power Supply
Hysteresis
Brake
(<1 Amp)
Hysteresis Brake
(<5 Amp)/
Eddy-Current/
Powder Brake
OR
DSP7001
DYNAMOMETER
CONTROLLER
USB
M-TEST
PC

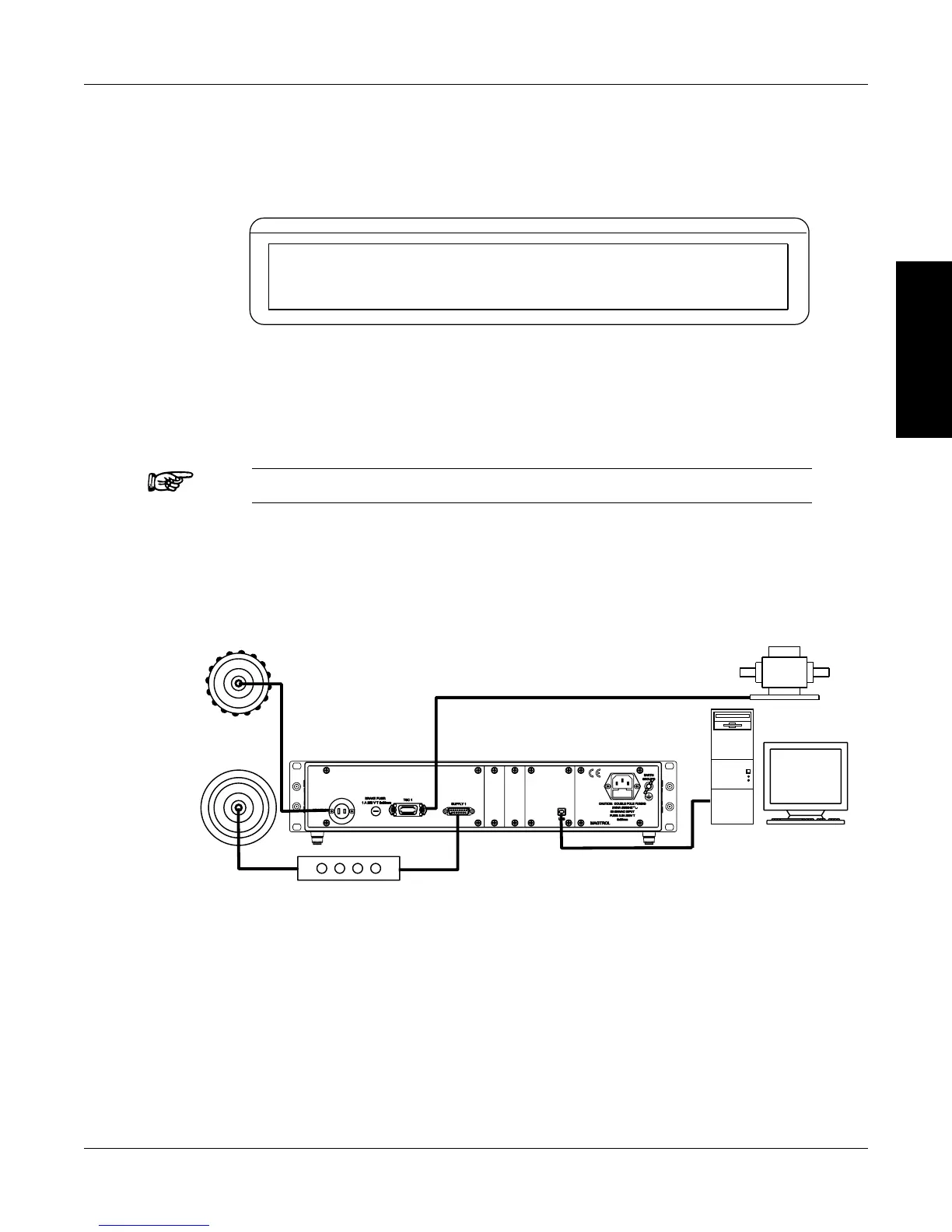

Figure 3-25 In-Line Torque Transducer with Brake
3.2.10.2 Software Conguration
1. Turn on the DSP7000 and proceed to the dynamometer configuration menu. See Section
3.2.1 – Dynamometer Configuration Menu.
2. Press POWER UNITS until TM/TF is reached.
3. Press TORQUE UNITS until the desired brake is selected.
4. Press MAX SPEED button and use  and  buttons and Decrease/Increase dial to set the
Scale Factor.
