Magtrol DSP7000 User Manual

1
GENERAL
INFORMATION
Calibration Certificate
1. Introduction
1.2 NEW FEATURES OF THE DSP7000
Magtrol’s new Model DSP7000 Dynamometer Controller is an upgraded version of the DSP6001,
providing superior motor testing capabilities by using state-of-the-art digital signal processing
technology. Designed for use with any Magtrol Hysteresis, Eddy-Current or Powder Brake
Dynamometer, Magtrol In-Line Torque Transducer or auxiliary instrumentation, the DSP7000 both
controls the dynamometer and provides digital readouts on the front panel. The features that make
the DSP7000 unique include:
• TwoChannels-Enablesunittosupportacombinationofuptotwotestinginstrumentswith
independent or tandem configurations.
• Built-InAlarm System -To caution the user when problems occur,there are automatic
electrical and temperature alarms programmed into the unit. Also inherent to the unit are
optional power, speed, torque, air flow, water flow and external input alarms that become
active when enabled by the user.
• Torque/SpeedAnalogOutputs-Abletointerfacewithadataacquisitionsystem
• DigitalFilter-Removesundesirednoisefromtorquesignals.
• Saving-Allowsusertosaveprogrammedvalueswithintheircongurations.
1.1 UNPACKING YOUR DSP7000
Your DSP7000 was packaged carefully for shipping. Please notify your carrier and Magtrol Customer
Service if you believe your unit was damaged in shipping.
1. Save all shipping cartons and packaging material until you inspect the DSP7000.
2. Inspect the DSP7000 for any evidence of damage in shipping.

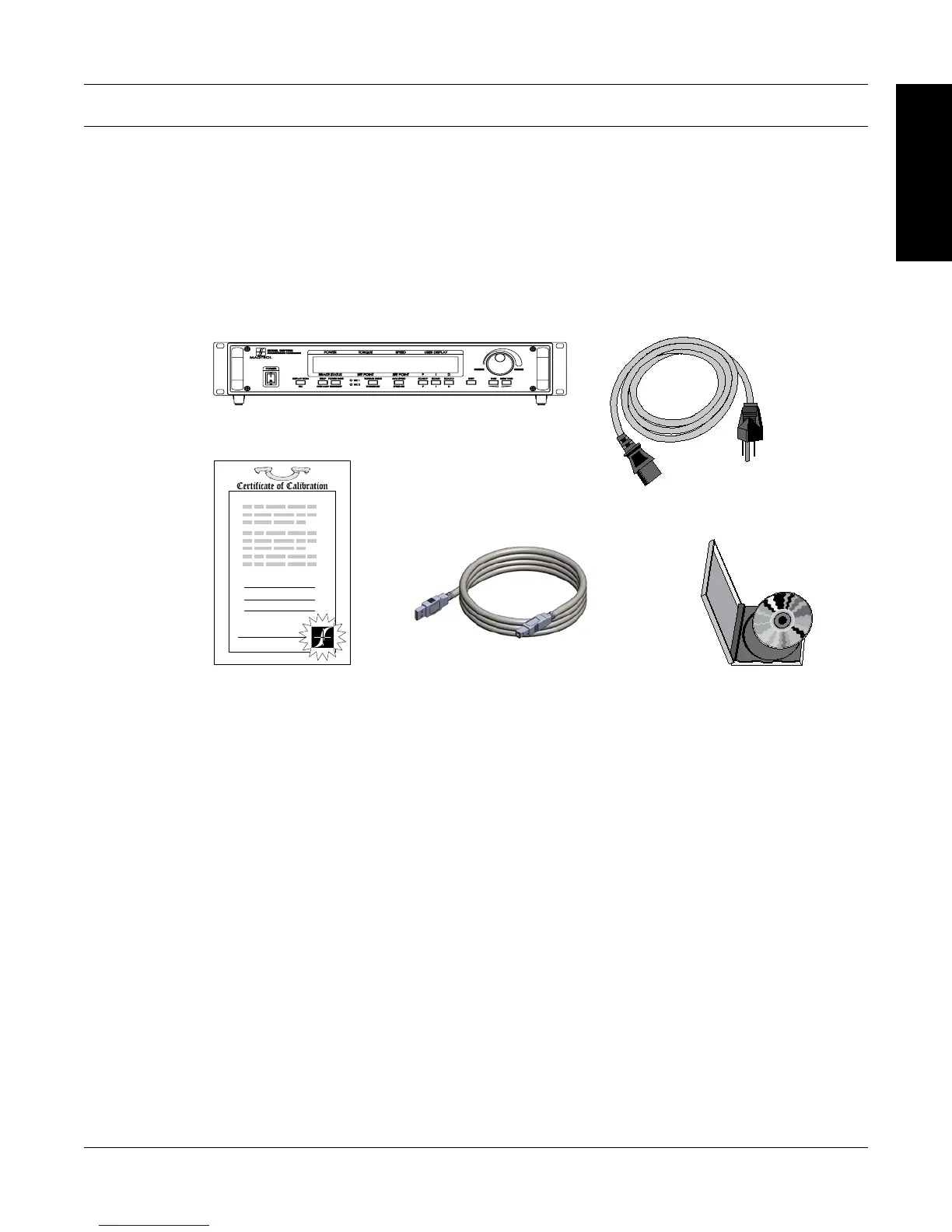

3. Make sure the carton contains the following:
DSP7000 Dynamometer Controller
Line cord
Magtrol User Manual CD-Rom
USB Cord

Magtrol DSP7000 Specifications

General

Brand	Magtrol
Model	DSP7000
Category	Controller
Language	English
