16000 SERVICE/MAINTENANCE MANUAL ELECTRIC SYSTEM
3
Circuit
Breaker
Amps Description of Items Protected
Cold Weather Package Circuit Breakers (Past Production)
1 50 Cold Weather Package Main Load Center Circuit Breaker
2 20 Engine Coolant Heater, Engine Oil Heater
3 15 Hydraulic Reservoir Heaters – Left or Right
415
Hydraulic Reservoir – Left or Right, Cab Console
and Battery Pad Heaters
1
2
3
4

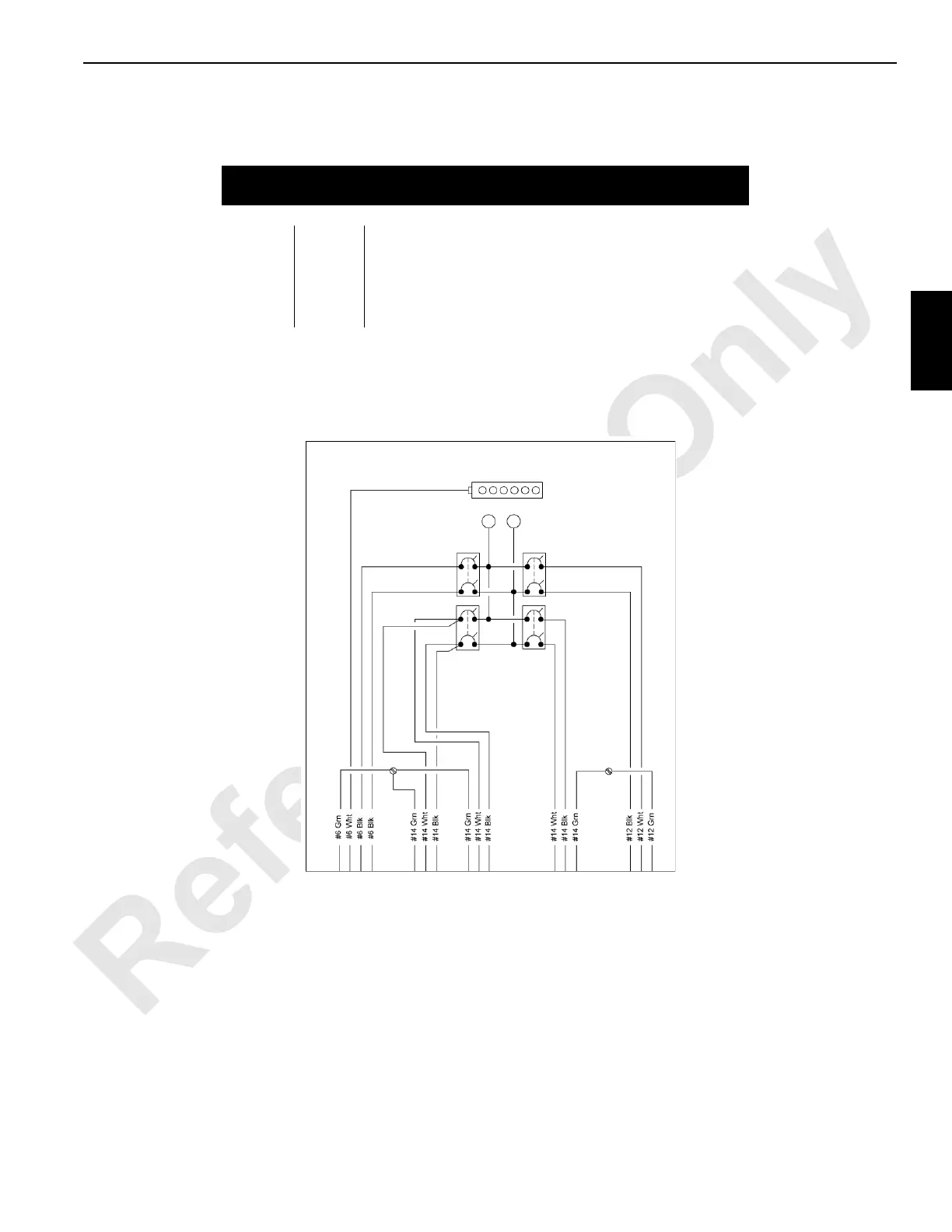

Circuit Breaker Load Center
A17735
FIGURE 3-2
