Operating elements for driving
3.2 Short description of the operating elements
3 - 40 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

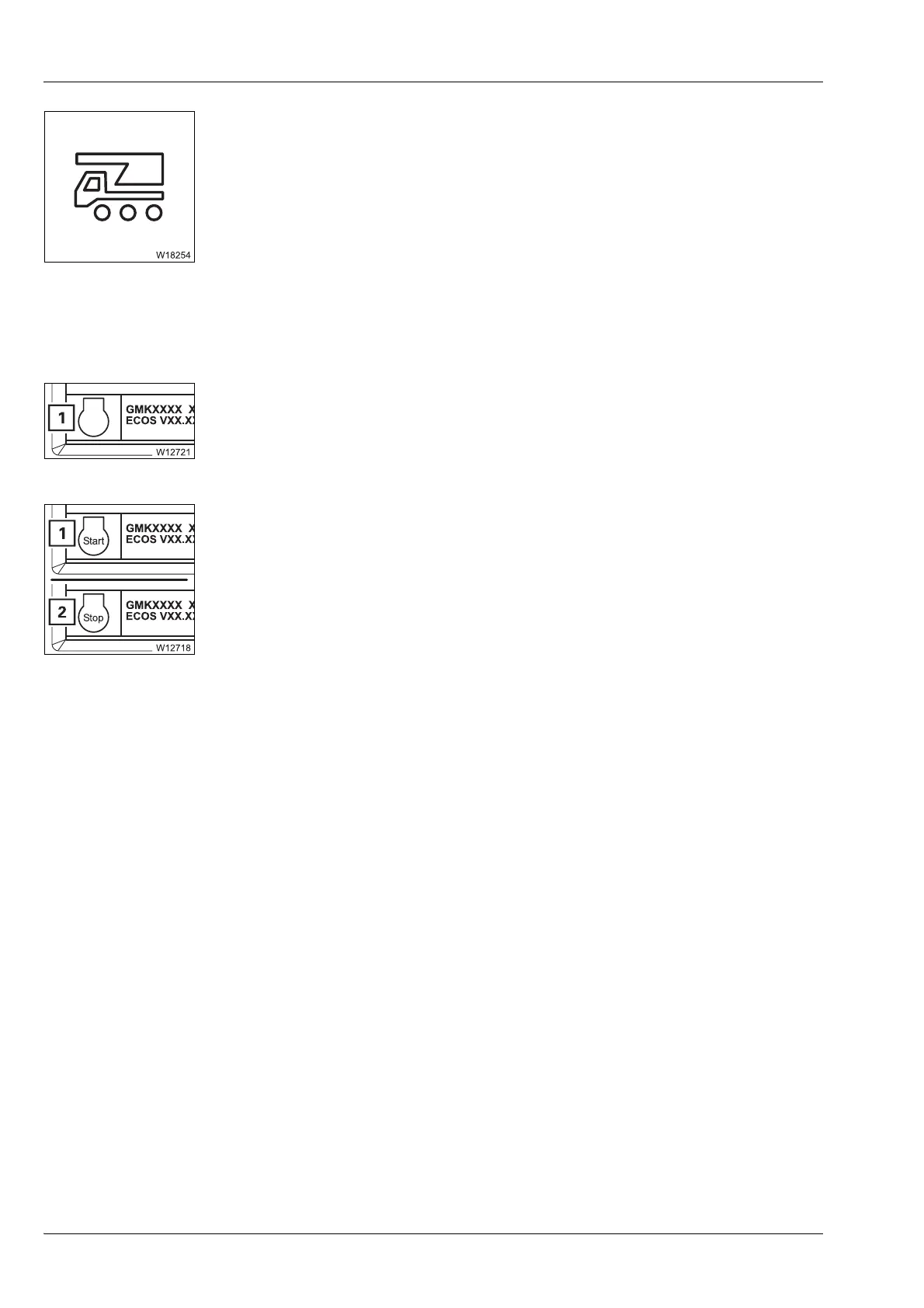

Superstructure ignition indicator lamp
Main menu
Combined operation display off
Combined operation display on
Combined operation switched on – starting/turning off the engine only via
button (1) and (2)
à Driving in combined operation, p. 13 - 10
–On: Ignition in the crane cab on,
engine for driving cannot be started
– Off: Ignition in the crane cab off,
engine for driving can be started
à p. 4 - 15
1 Grey: Combined operation switched off –
Starting/turning off the engine only via ignition lock
1 Green: Press button once – Engine for driving starts,
Symbol (2) displayed
2Red: Press button once – Engine for driving is turned off,
Symbol (1) displayed
