Driving modes
6.2 Weighing the truck crane
Operating Manual GMK6300L 3 112 xxx en 6 - 9
xx.xx.xxxx
Weighing
procedure
Perform the weighing procedure only with the crane truck standing on
solid and horizontal ground! All scales must be at the same height!

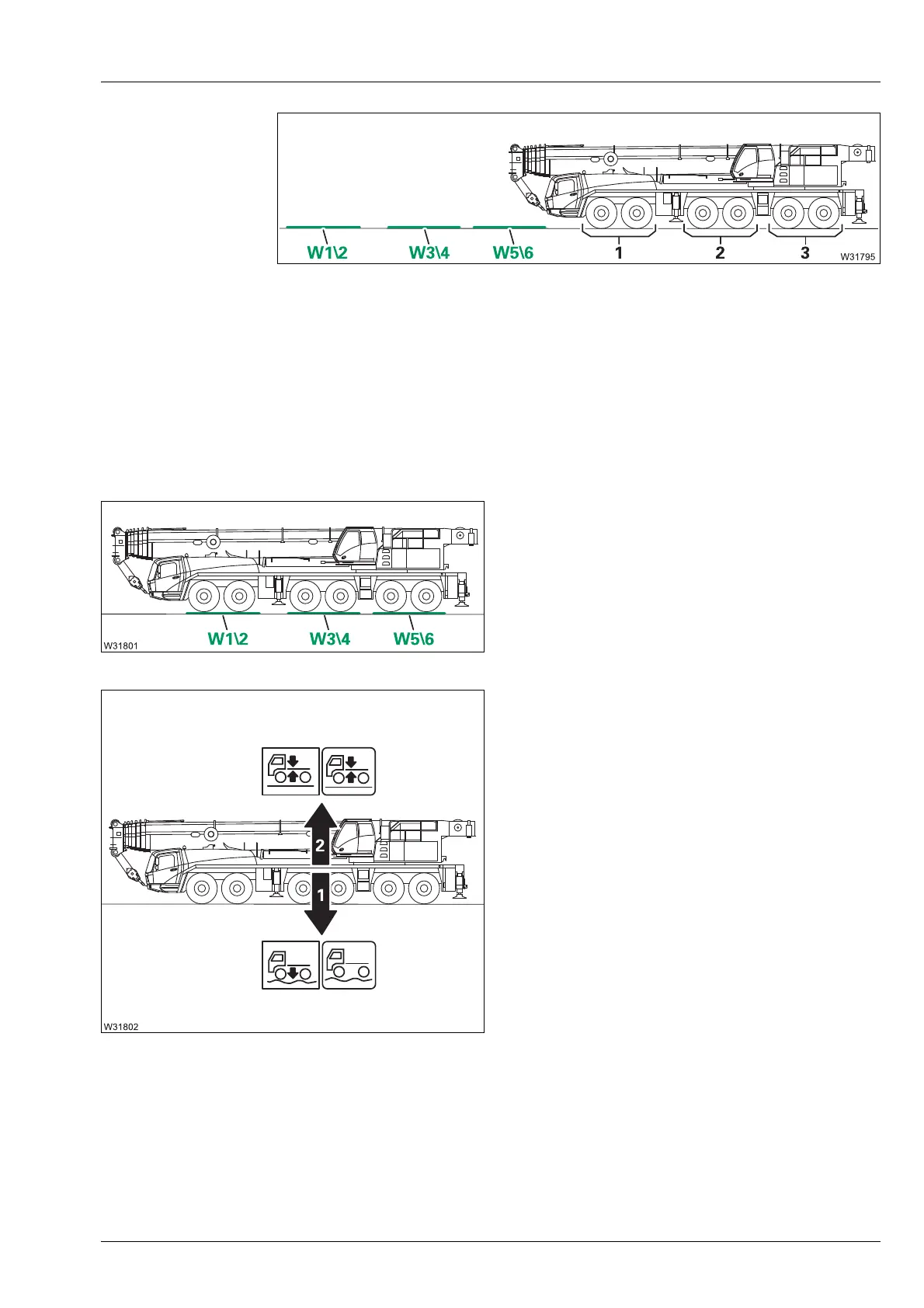

• Position the scales W1 to W6 (or the necessary support plate) directly in
front of the truck crane, so that the distances between the scales are
exactly the same as the distances between the axle groups 1 to 3.
In the next step, drive steadily at a very low speed without any steering
movements, and brake only very gently.
• Drive the truck crane on to the scales W1 to
W6 (or on to the necessary support plate), so
that the axle groups stand centrally on the
scales.
• Do not apply the parking brake.
• If the truck crane has to be braked while
changing the level, only use the service
brake very gently.
• (1) – Use the level adjustment system to
lower the truck crane to its lowest position;
à p. 5 - 64.
• (2) – Use the automatic function to set the
level for on-road driving. If you move the
axle groups individually the weighing result
will be falsified.
• Read the scales and make a note of the
results.
s
