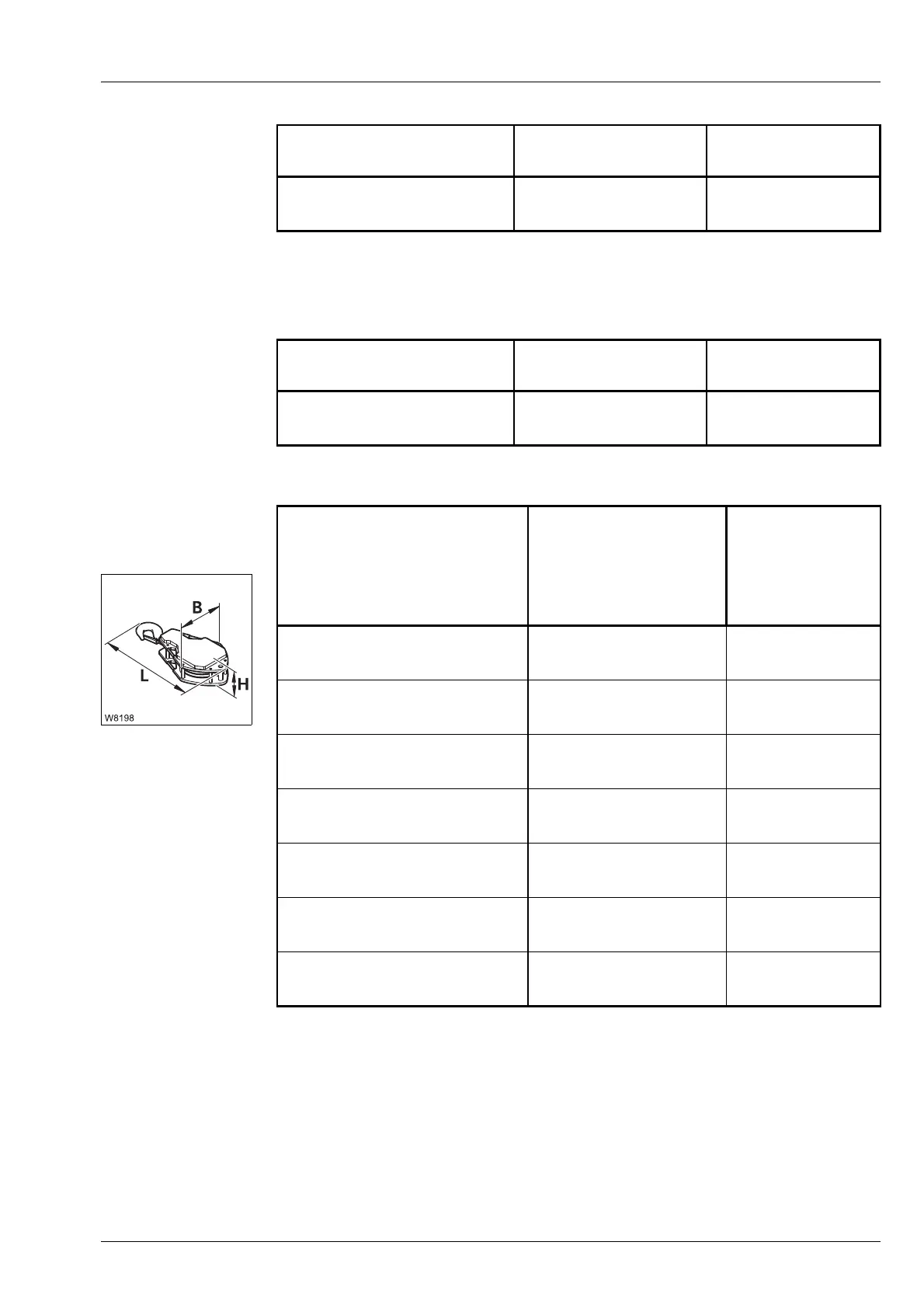

1.5 Technical data
Operating Manual GMK6300L 3 112 xxx en 1 - 11
xx.xx.xxxx
Driver's safety
guard
Hose drum
Hook blocks and
hook tackle
Lifting capacity of the hook blocks;
à Lifting capacity table
s
Name Length x width x
height in m (ft)
Weight in kg (lbs)
Rear bumper for versions
with ROB
1)
3.0 x 0.4 x 1.2
(9.8 x 1.31 x 3.9)
120
(265)
1)
Additional equipment
Name Diameter x width
in m (ft)
Weight in kg (lbs)
Hose drum, complete with
hose
1.55 x 0.4
(5.1 x 1.31)
275
(606)
Name
Length x width x
height
(L) x (W) x (H)
in m
(ft)
Weight
In kg
(lbs)
Double hook, 9 sheaves 2.30 x 0.95 x 0.85
(7.55 x 3.12 x 2.79)
3,000
(6,615)
Double hook, 7 sheaves 2.00 x 0.80 x 0.70
(6.56 x 2.62 x 2.30)
1,750
(3,858)
Double hook, 5 sheaves 1.85 x 0.70 x 0.60
(6.07 x 2.30 x 1.97)
1,650
(3,650)
Single hook, 3 sheaves 1.95 x 0.65 x 0.40
(6.40 x 2.13 x 1.31)
1,125
(2,480)
Double hook, 3 sheaves 1.75 x 0.65 x 0.40
(5.74 x 2.13 x 1.31)
1,125
(2,480)
Single hook, 1 sheave 1.50 x 0.65 x 0.35
(4.92 x 2.13 x 1.15)
620
(1,370)
Hook tackle 0.91 x 0.35 x 0.35
(2.99 x 1.15 x 1.15)
300
(660)
