6.4 Main boom, removing/installing
Operating Manual GMK6300L 3 112 xxx en 6 - 45
xx.xx.xxxx

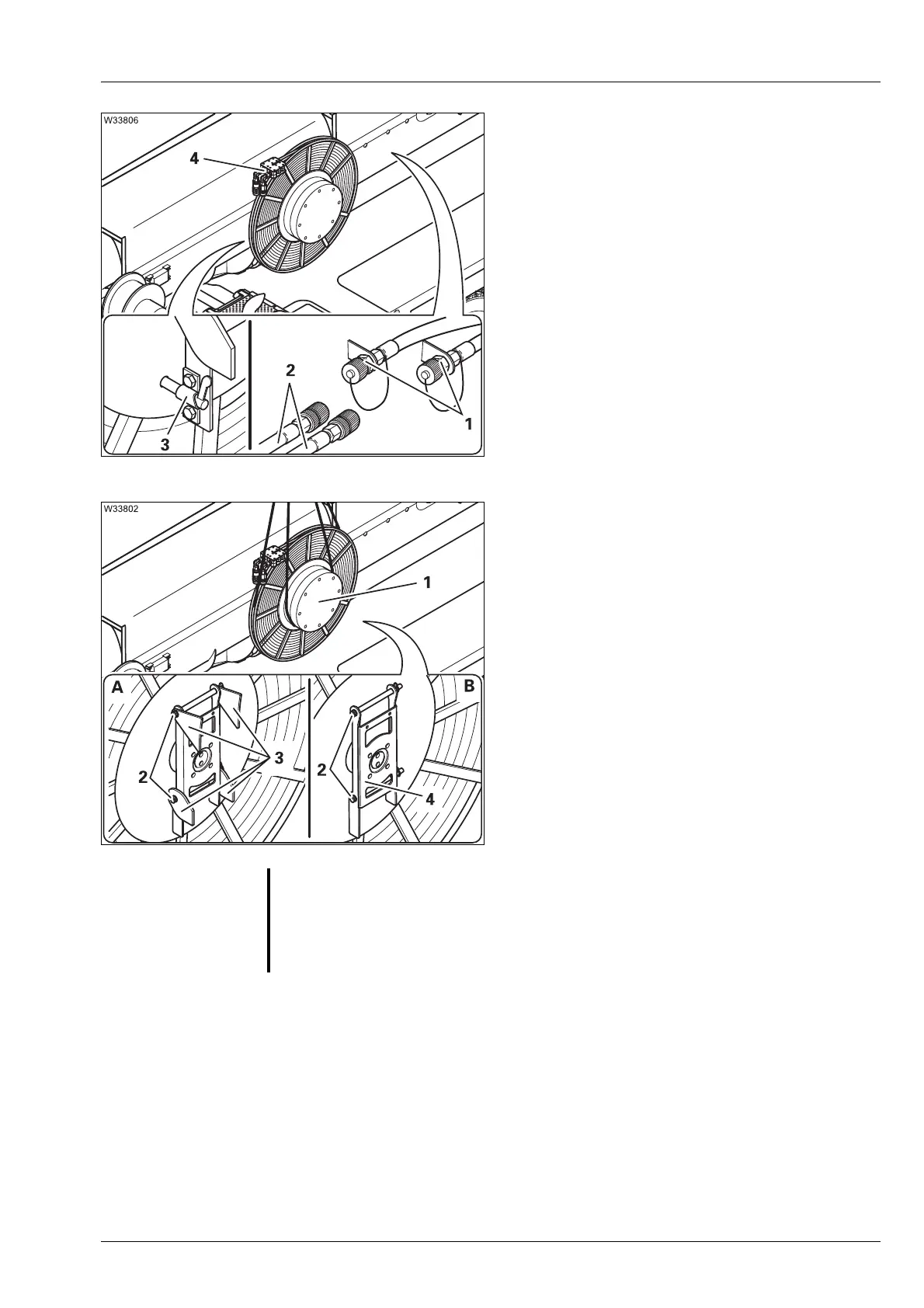

• Engage the locking device (3).
• Place the hoses (4) on the hose drum.
• Remove the hoses (2) from the connec-
tions (1).
• Close the hoses and the connections (1) with
the caps.
• Attach the hose drum (1) using a strap sling
of sufficient load bearing capacity.
• (A) – Remove the pins (2) from the holder (3).
• Hoist the hose drum (1) out of the holder (3).
• (B) – Insert the pin (2) into the holder (4).
• Secure the pin.
• Stow the hose drum (1) safely for trans-
portation.
S
Risk of damaging the hose drum!
When the hose drum is transported on a separate vehicle, always secure it
by strapping it down with suitable belts or by placing it in a transport cradle.
This prevents the hose drum from tipping over and becoming damaged
during transportation.
