Driving modes
6.6 Installing/removing the supporting box
6 - 68 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

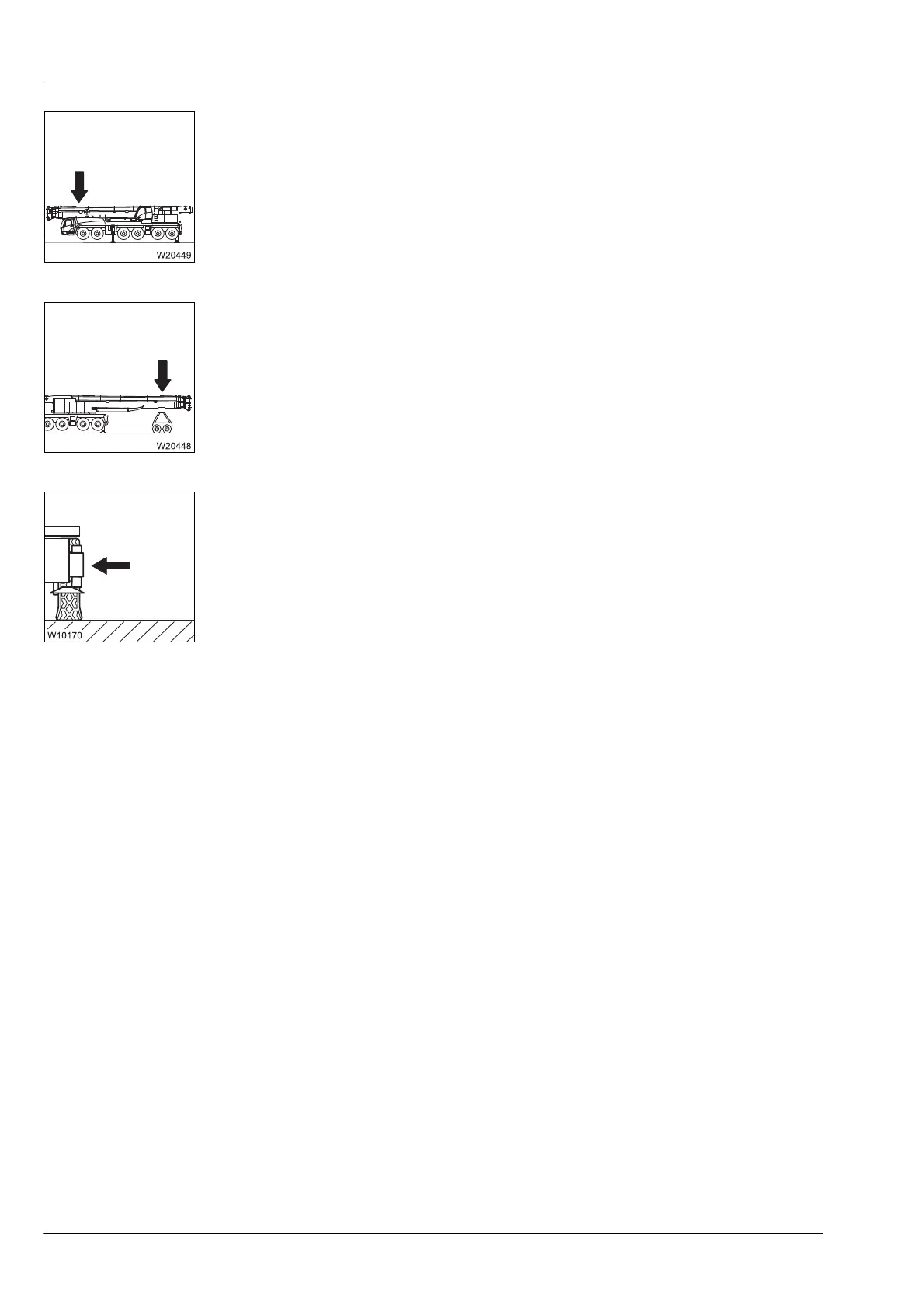

11. If the main boom is to be set down on the boom rest:
– With the RCL set accordingly, slew the superstructure to the front
and set down the main boom;
à After the removal, p. 6 - 81.
12. If the main boom is to be set down on a trailer:
With the RCL set accordingly, slew the superstructure to the rear and
lower the main boom
à Crane movements during installation and removal, p. 6 - 81.
13. On the outrigger:
– Retract the front outrigger cylinders and outrigger beams and secure;
à CHECKLIST: Retracting the outriggers, p. 12 - 29,
– Retract auxiliary support;
à Auxiliary supports, p. 6 - 72.
