Operating elements for crane operation

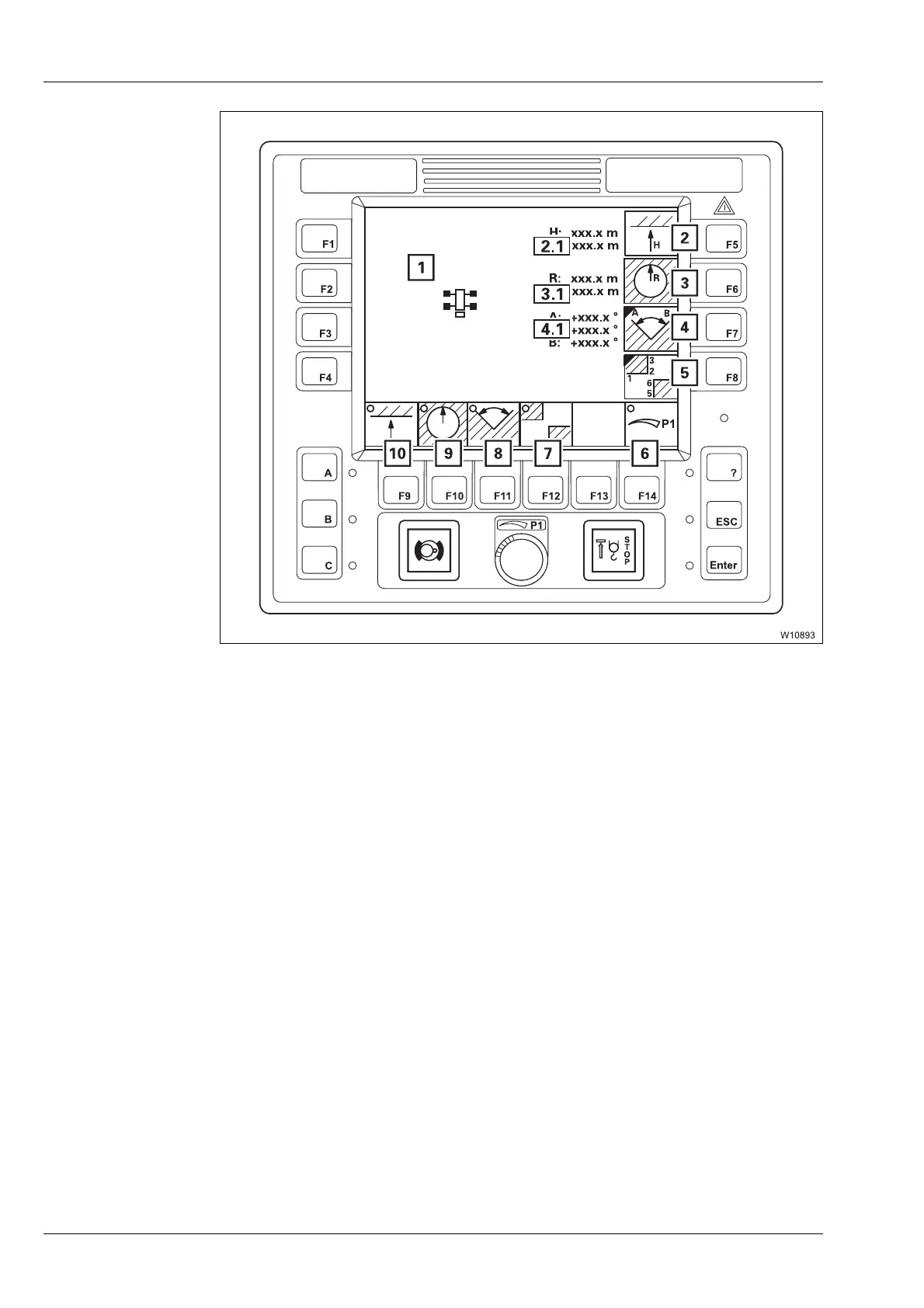

9.1 Overview of the operating elements
9 - 38 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
Working range
limiter submenu
1 Working range limiter display
à p. 11 - 126
2 Input maximum overall height
à p. 11 - 118
2.1 Maximum overall height display
à p. 11 - 118
3 Input maximum working radius
à p. 11 - 118
3.1 Maximum/current working radius display
à p. 11 - 118
4 Enter slewing angle submenu
à p. 11 - 119
4.1 Maximum/current slewing angle display
à p. 11 - 119
5 Enter objects submenu
à p. 11 - 121
6 Manual input on/off
à p. 11 - 124
7 Object monitoring on/off
à p. 11 - 126
8 Slewing angle monitoring on/off
à p. 11 - 126
9 Working radius monitoring on/off
à p. 11 - 126
10 Overall height monitoring on/off
à p. 11 - 126
