Operating elements for crane operation
9.1 Overview of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 39
xx.xx.xxxx
Enter slewing angle submenu
à Slewing angle, p. 11 - 119.
Enter objects submenu
à Entering objects, p. 11 - 121.
s

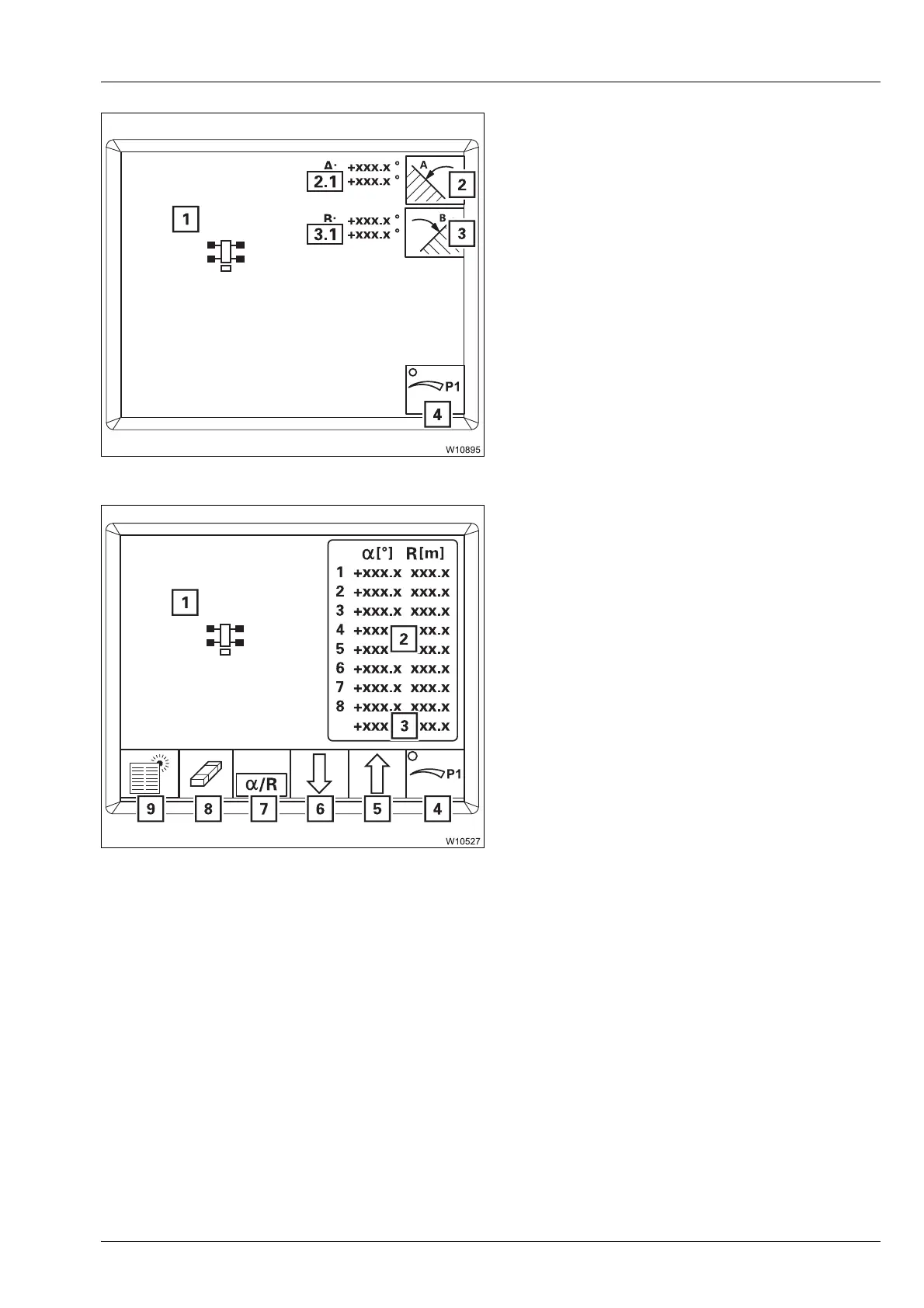

1 Limited slewing angle display
2 Select slewing angle A
2.1 Maximum/current slewing angle A
display
3 Select slewing angle B
3.1 Maximum/current slewing angle B
display
4 Manual input on/off
1 Limitation by object display
2 Point data display
3 Current point data display
4 Manual input on/off
5 Select previous point
6 Select next point
7 Select angle/working radius
8 Delete selected point data
9 Delete all point data
