Operating elements for crane operation
9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 87
xx.xx.xxxx

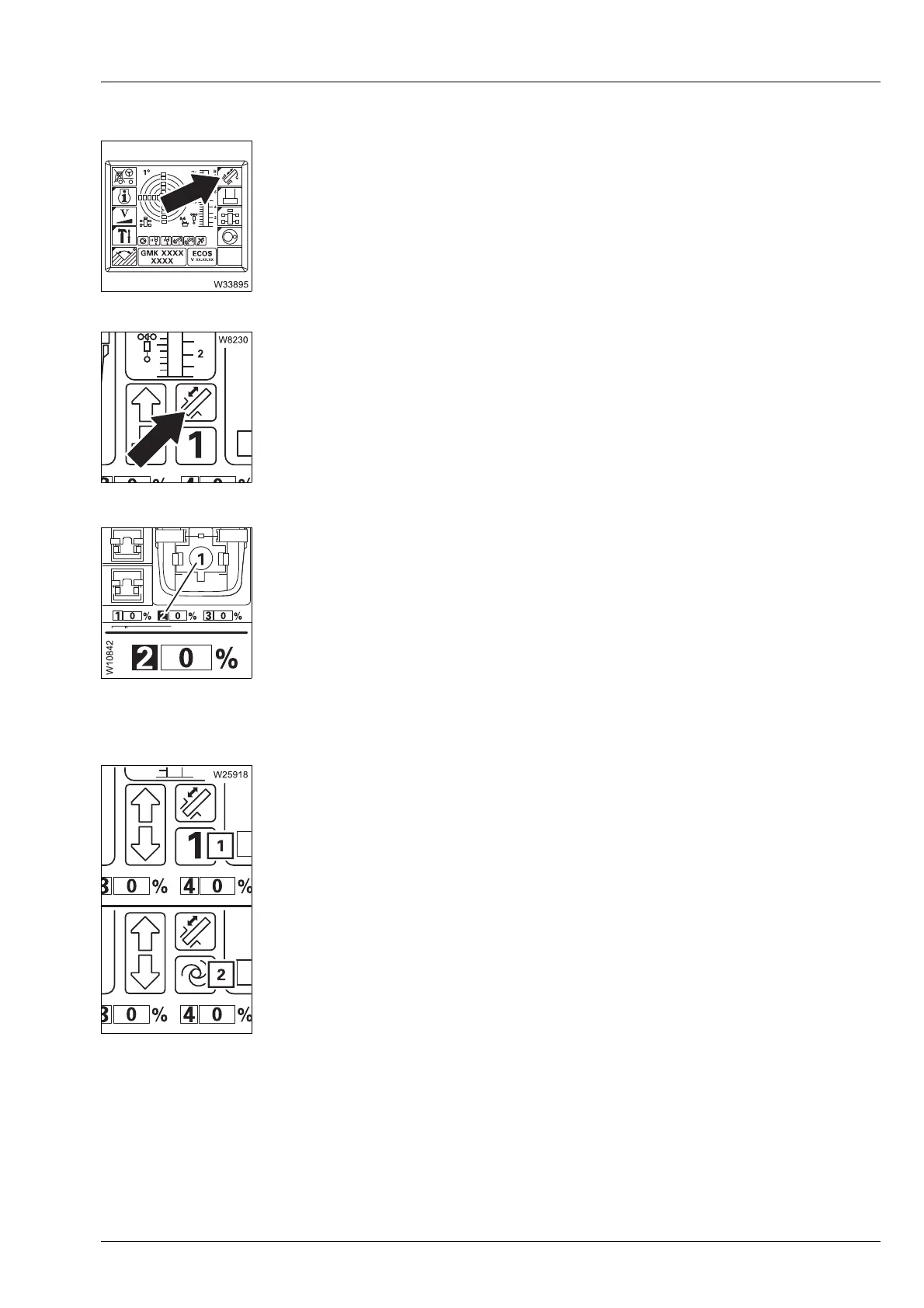

Submenu
Telescoping submenu
Display for telescoping mechanism on/off
Current telescope status display
Telescoping cylinder in the telescopic section display
Displayed telescopic section, e.g. telescopic section
I:
s
– To open: Press button once – submenu opens
– Green: Telescoping mechanism on
–Red: Telescoping mechanism off
à p. 11 - 77
1 Extended length of the telescopic sections in per cent (%)
2 Telescopic section display is green
–On: Telescoping cylinder is locked here
– Flashing: Next possibility for locking telescoping cylinder
à p. 11 - 78
1–On: Telescoping cylinder is locked here
1 – Flashing: Next possibility for locking telescoping cylinder
1 – Off: Telescoping cylinder in this telescopic section – dis-
tance to the locking point greater than 1 m (3.3 ft)
or
Teleautomation on – symbol (2) is displayed
à p. 11 - 78
