Operating elements for crane operation
9.2 Short description of the operating elements
9 - 88 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

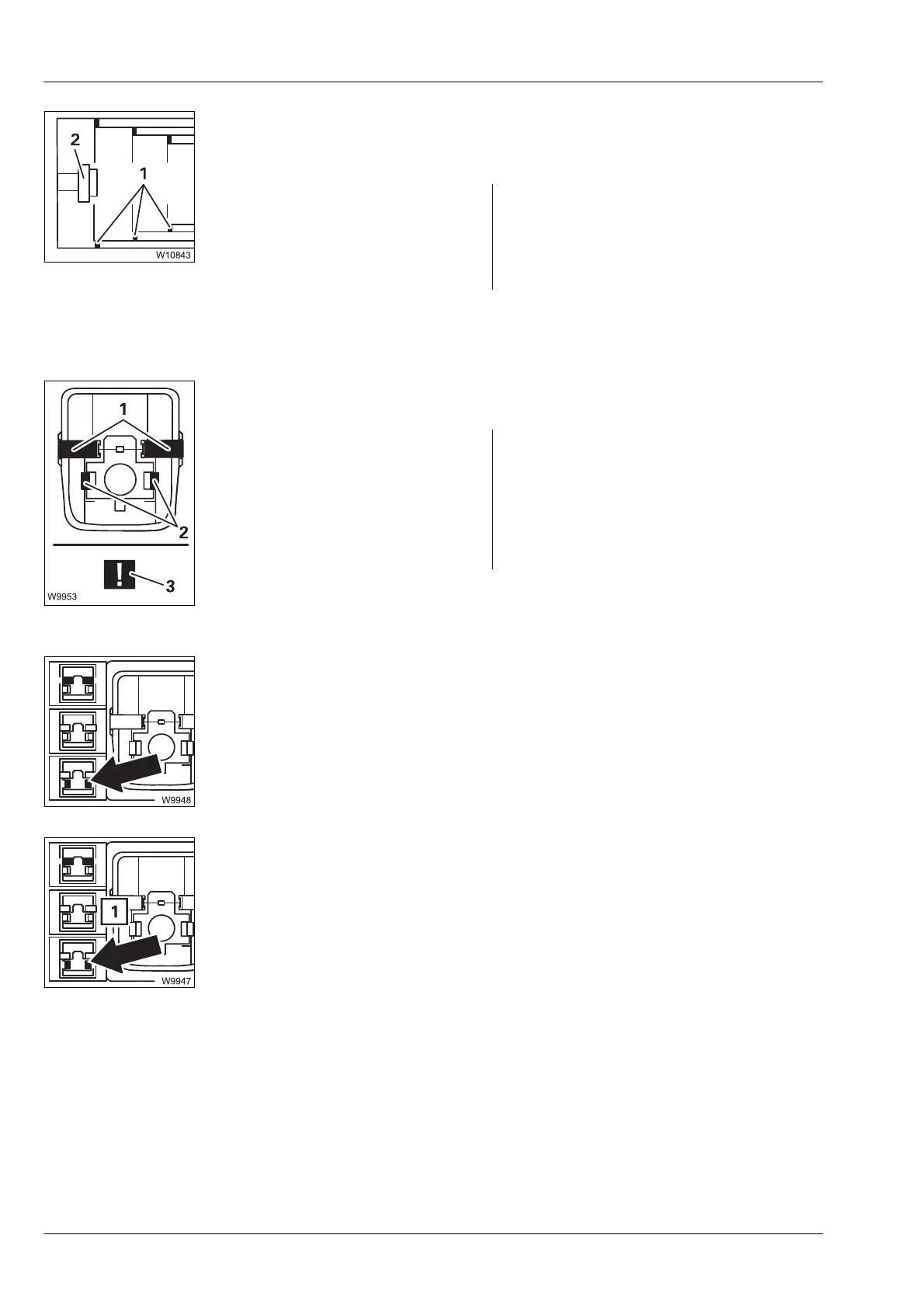

Telescope diagram display
Current relation of the telescopic sections to each other – section of top
view.
Locking status display
The locking pins change the position and colour
Unlock telescoping cylinder selection
Locking pin Display 1 and 2
1 On the telescopic section – Green: Locked
2 On the telescoping cylinder – None: Unlocked or intermediate
position
à p. 11 - 78
Locking pin Display 1 and 2
1 On the telescopic section – Green: Locked
2 On the telescoping cylinder –Red: Unlocked
–Yellow: Intermediate position
–Violet: Error – symbol (3)
à p. 11 - 79
– Display Yellow: Telescoping cylinder unlocked
Grey: Telescoping cylinder locked
Flashing:
(yellow/grey)
Unlock selected
– To select: Press button once
– Telescopic section locked:
Unlock selected – is executed after moving the control
lever
– Telescopic section unlocked:
Unlock not selected – symbol (1) flashes yellow/grey as
a prompt to
Lock telescoping cylinder
à p. 11 - 79
