Operating elements for crane operation
9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 97
xx.xx.xxxx

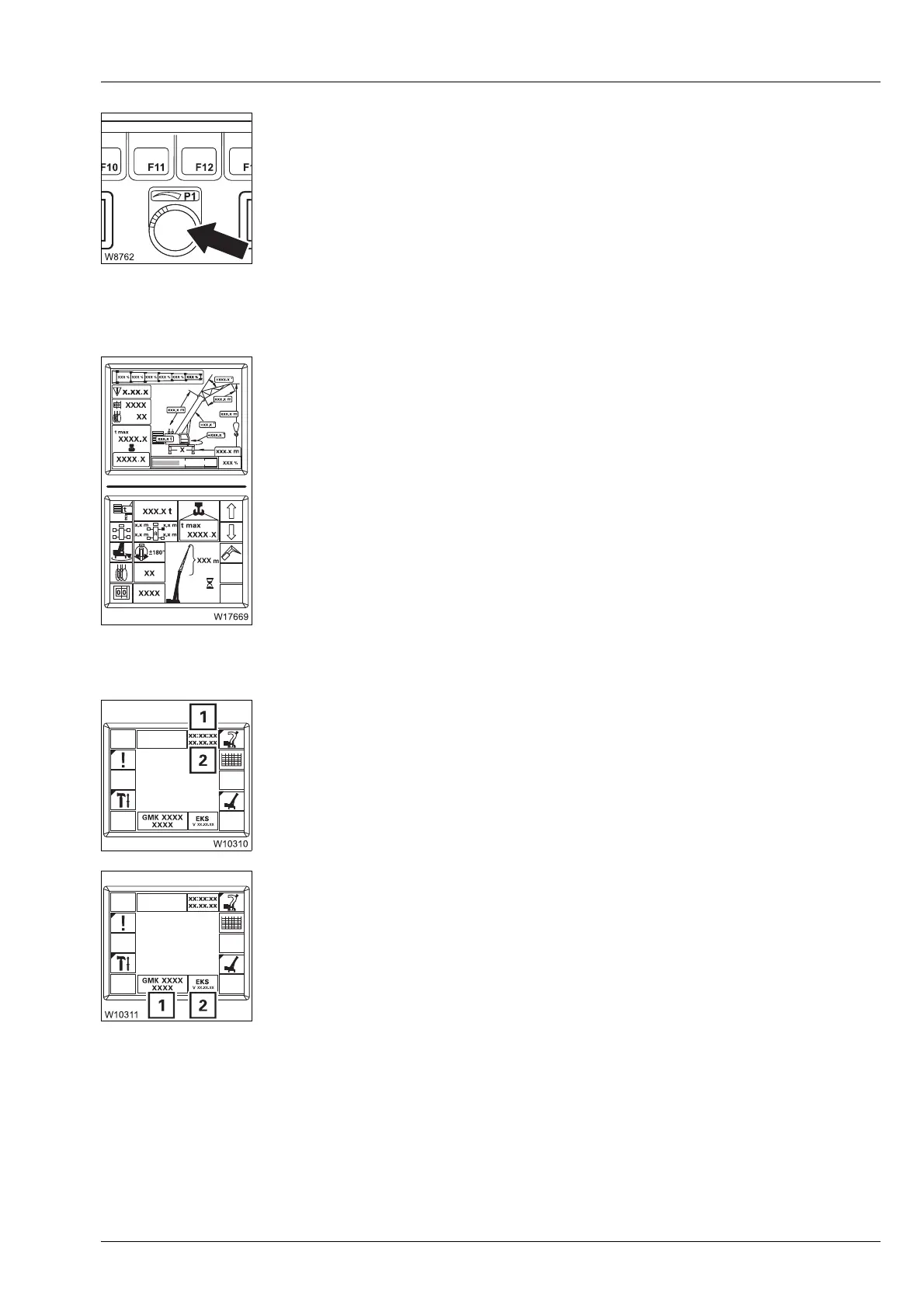

Entering values
The input mode for the RCL code is switched on.
Display RCL
– After a standstill of up to 48 hours
Ignition on –
Monitoring submenu opens; à p. 11 - 21
– After a standstill of more than 48 hours
Ignition on –
Enter rigging mode submenu opens; à p. 11 - 22
Main menu
Date/time display
à Entering the time/date, p. 11 - 49
Serial number and program version displays
s
– To the right: Next greater value
– To the left: Next smaller value
Slowly turning – changes the value gradually
Quickly turning – changes the value quickly
à p. 11 - 28
1 Time
2 Date
1 Truck crane serial number
2 RCL program version – always state in the event of malfunctions;
à p. 14 - 26
