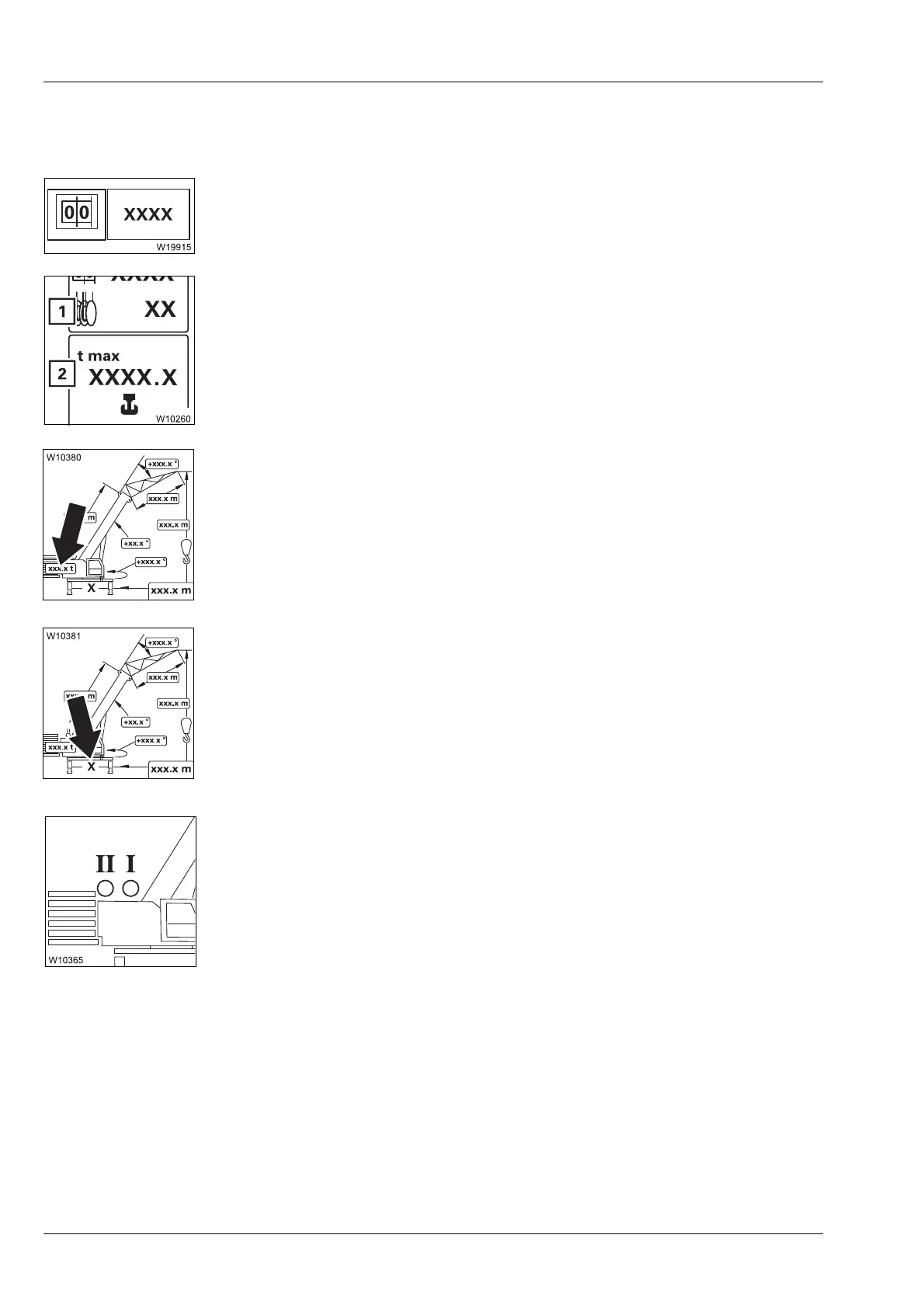

Operating elements for crane operation

9.2 Short description of the operating elements

9 - 102 3 112 xxx en Operating Manual GMK6300L

xx.xx.xxxx

Monitoring

submenu

Displays – depend on rigging mode; à Checks before operating the crane,

p. 11 - 31.

Display RCL code

RCL code, four digits

Reeving display

Counterweight display

Required counterweight combination in tons (t) – for displayed RCL code.

Outrigger span display

Required outrigger span for displayed RCL code – displayed in letters – over-

view of outrigger spans;

à p. 9 - 100.

Hoists display

1 Required quantity of reeved ropes for displayed, maximum load (2)

–

I on: Main hoist switched on first –

displayed reeving applies to main hoist

–

II on: Auxiliary hoist switched on first –

displayed reeving applies to auxiliary hoist

–

I or II flashing: Corresponding hoist switched on as well –

displayed reeving applies to the other hoist

–

I or II out: Corresponding hoist switched off
