Operating elements for crane operation
9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 101
xx.xx.xxxx

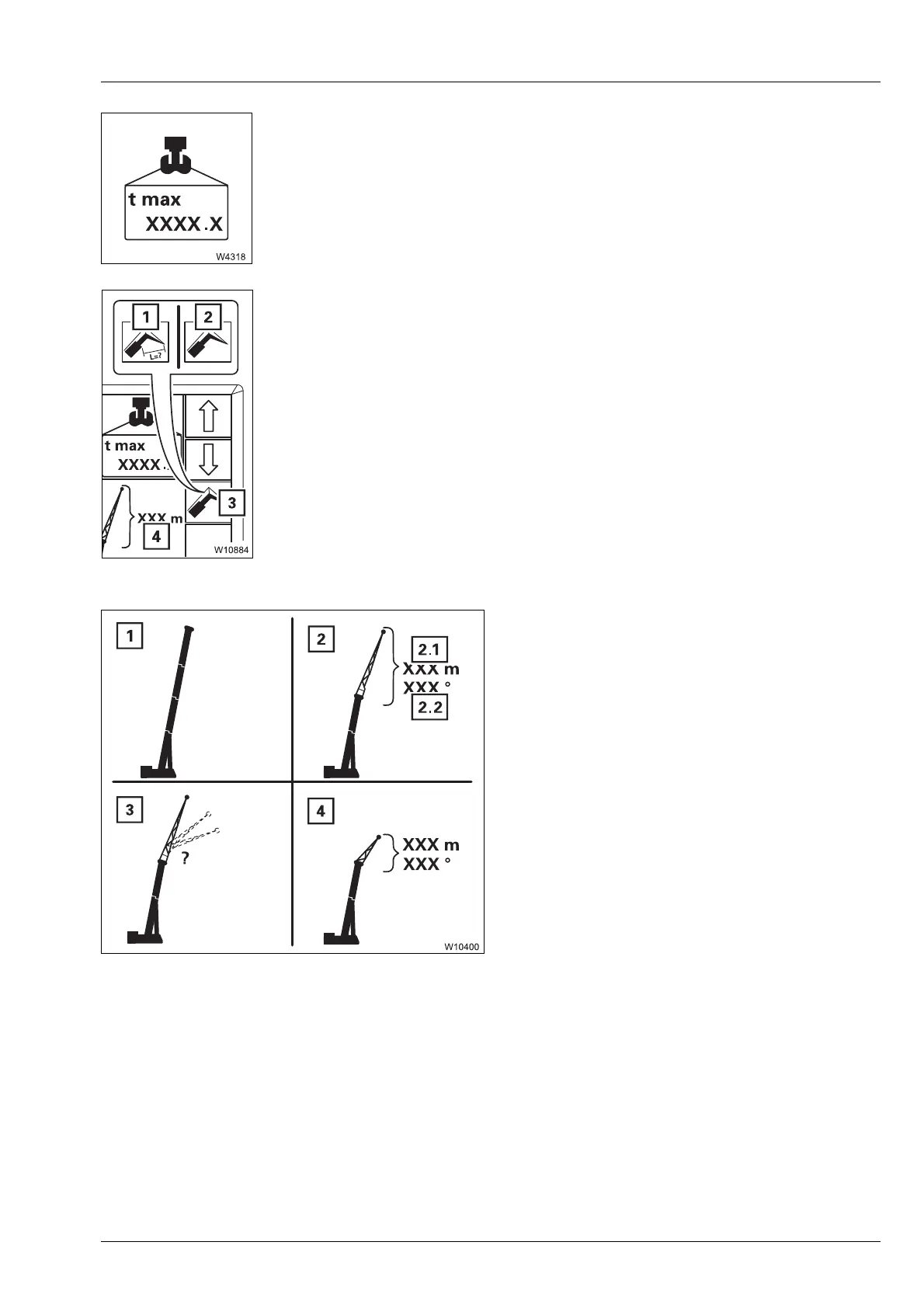

Maximum load display
Short description with
Monitoring submenu; à p. 9 - 104.
Boom system entry
Boom system display
Boom system for displayed RCL code,
s
– Input mode on: – For boom system:
Press button (3) until symbol (2) is green
– For length and angle of lattice extension
1)
:
Press button (3) until symbol (1) is green
– Input: In input mode, press button (3) once – next length on
display (4)
à p. 11 - 24
1)
Lattice extension – inclinable
1 Main boom/auxiliary single-sheave boom
top
2 Lattice extension
2.1 Length
2.2 Angle
1)
3 RCL rigging code for angling
entered
1)
4 Heavy load lattice extension
à p. 11 - 26
1)
Lattice extension – inclinable
