Operating elements for crane operation
9.2 Short description of the operating elements
9 - 104 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

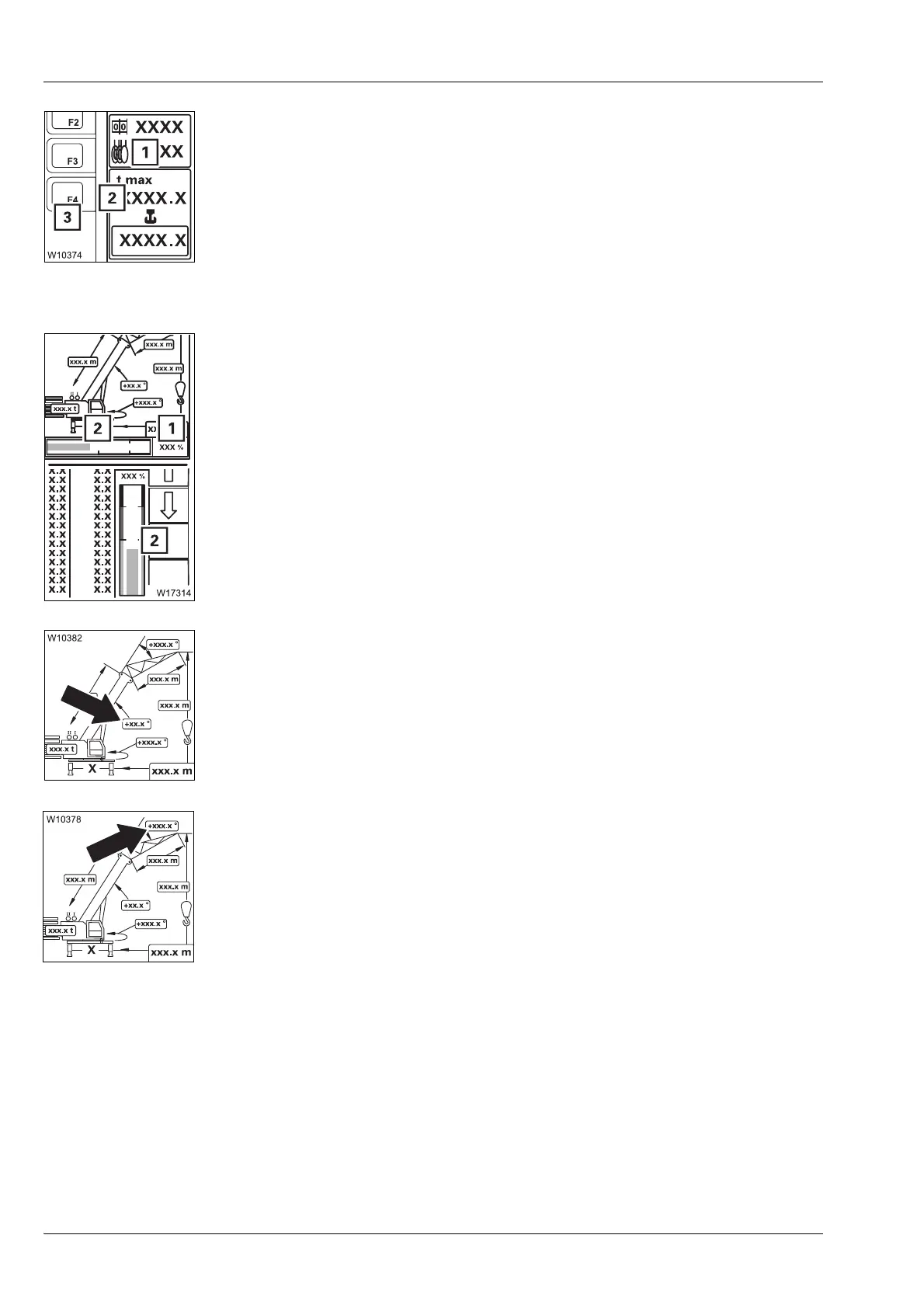

Maximum load display
Current degree of utilisation display
Degree of utilisation = 100 x current load/maximum load
Current main boom angle display
Lattice extension inclination display
The luffing jib is connected.
– Display: Maximum load in tons (t) or kilopounds (klbs) for the
displayed RCL code
– Symbol (1) is red – maximum load reduced by reeving
Press button (3) once – display (2) briefly shows
maximum load for displayed RCL code
à p. 11 - 36
1 Display in percentage
2 Colour display:
–Blue: 0 – 90%
–Yellow:approx. 90 – 100% – early warning
–Red: greater than 100% – shutdown
à p. 11 - 36
– Display: Current angle between main boom and horizontal
position in degrees (°)
à p. 11 - 35
– Display: Current angle between the lattice extension and main
boom in degrees (°)
à p. 11 - 35
