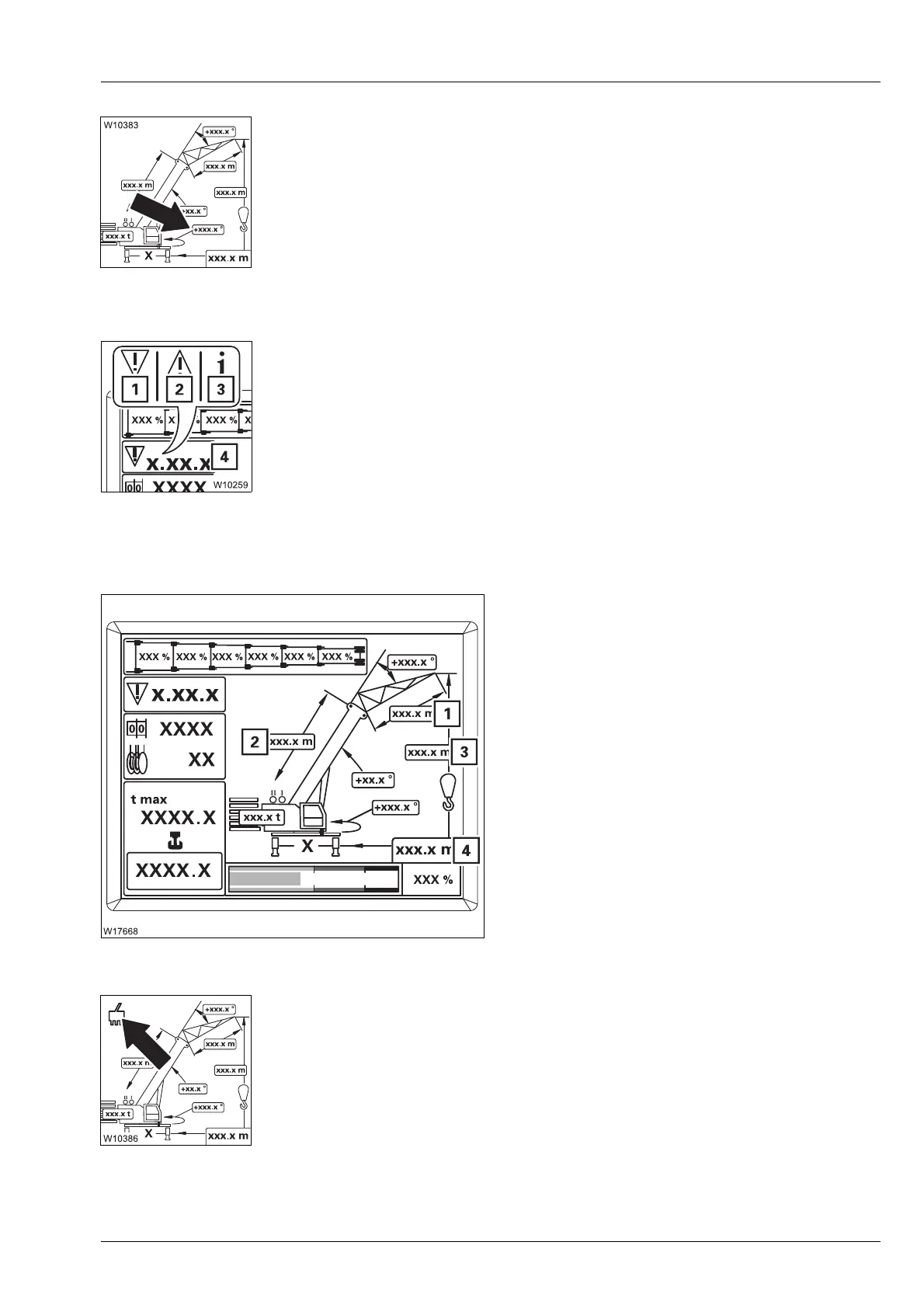

Operating elements for crane operation
9.2 Short description of the operating elements
Operating Manual GMK6300L 3 112 xxx en 9 - 105
xx.xx.xxxx
Current slewing angle display
Error display
Other displays
Display in metres (m) or feet (ft)
à p. 11 - 34
Service symbol display
Symbol displayed – service device connected
s
0°: Position 0° to the rear
180°: Position 180° to the front
+ 0.1 to +180.0°: Turned to the right from 0°
- 0.1 to -179.9°: Turned to the left from 0°
à p. 11 - 35
1 Error
2 Warning
3 Information
4 Corresponding number code,
press button
@ once – next available number code
à p. 11 - 39
1 Current length of lattice extension
2 Current main boom length
3 Current overall height
4 Current working radius
