Crane operation
11.3 Crane operation with main boom
11 - 84 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
Unlocking the
telescopic section
Unlocking a telescopic section is required for the telescopic section to be
telescoped.
The telescoping cylinder and the telescopic section cannot be unlocked
simultaneously.
Prerequisites
– Telescoping mechanism on – symbol (2)
is green
– Telescopic section locked – symbol (1)
is grey

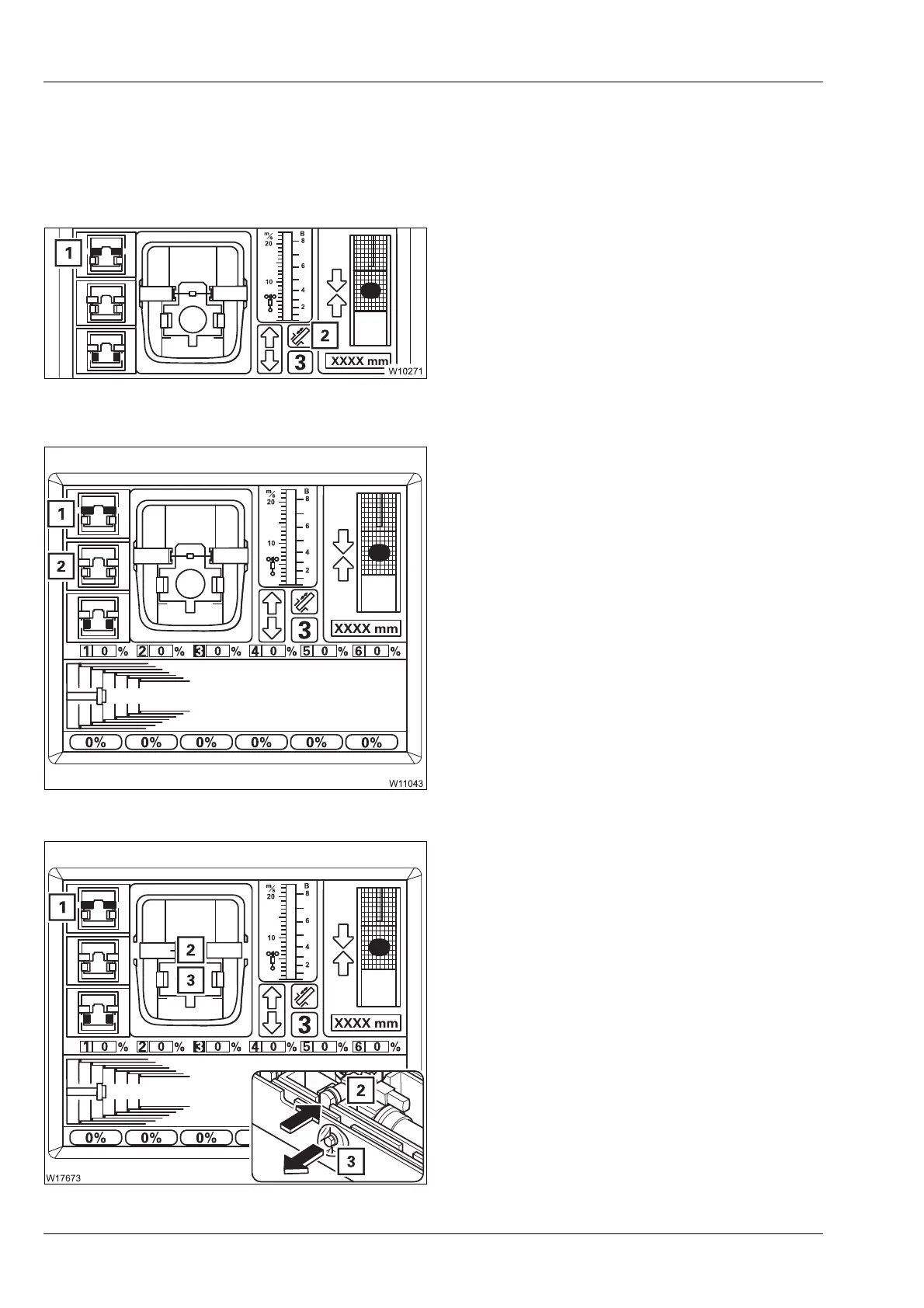

To select unlock
• Press the button (1) once.
– If the telescoping cylinder is locked:
Symbol (1) will flash –
Unlock telescopic
section
is selected.
– If the telescoping cylinder is unlocked:
Symbol (2) will flash – the following is
selected:
In the next step, both selections are carried
out one directly after the other.
Unlocking the telescopic section
• Move the control lever for telescoping.
If required, extend the locking pins (3) first.
The locking pins (2) retract.
In the
Unlocked position, symbol (1) will be
yellow.
If the control lever is moved, the telescopic
section will immediately be telescoped.
1.
Lock the telescoping cylinder
2.
Unlocking the telescopic section
–Yellow: Intermediate position
–Red: Unlocked
