Rigging work
12.7 Rigging/unrigging the counterweight
Operating Manual GMK6300L 3 112 xxx en 12 - 71
xx.xx.xxxx
Combinations for
the additional
equipment in
version B
Depending on the additional equipment, other counterweight sections are
available. This section shows how to assemble the additional counter-
weight combinations.

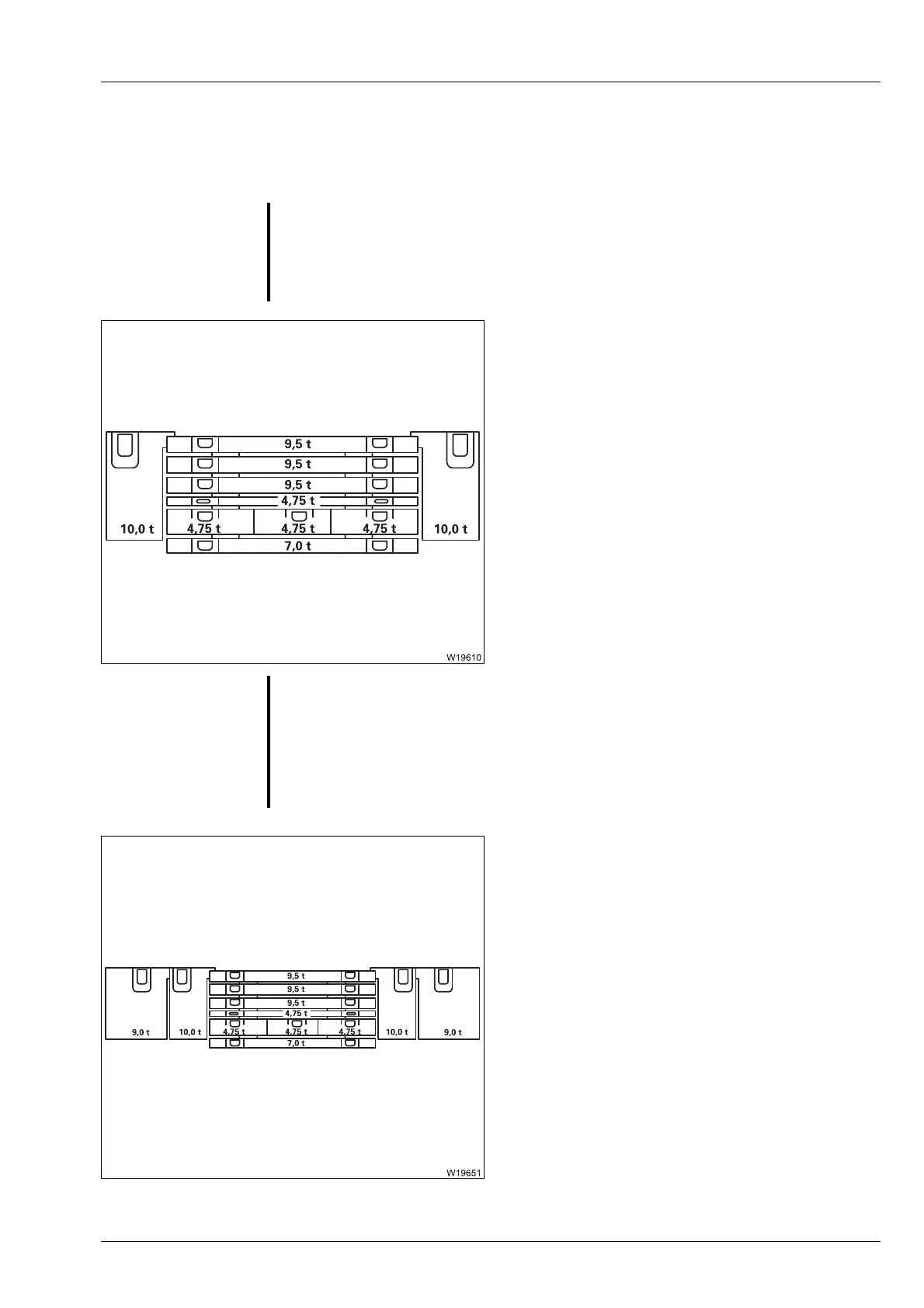

74.5 t (164,244 lbs)
– 7 t base plate
– four 4.75 t sections
– three 9.5 t sections
– two 10 t blocks
1)
92.5 t (203,928 lbs)
– 7 t base plate
– four 4.75 t sections
– three 9.5 t sections
– two 10 t blocks
1)
–two 9 t blocks
1)
s
G
Risk of accident due to an incorrect counterweight mass!
Only combine the counterweights in such a manner that the counterweight
mass corresponds to the specifications in this section and in the
Lifting
capacity table
. Other combinations are not permitted.
1)
Additional equipment
S
Risk of overturning if counterweight rigging sequence is incorrect!
When installing, always attach both 10-t counterweight blocks before you
attach a 9-t counterweight block and, during removal, always remove both
9-t counterweight blocks before you remove a 10-t counterweight block. If
you attach both blocks on one side first, the entire counterweight will fall
off the carrier and may cause injury to you or other persons.
1)
Additional equipment
