Rigging work
12.7 Rigging/unrigging the counterweight
12 - 76 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

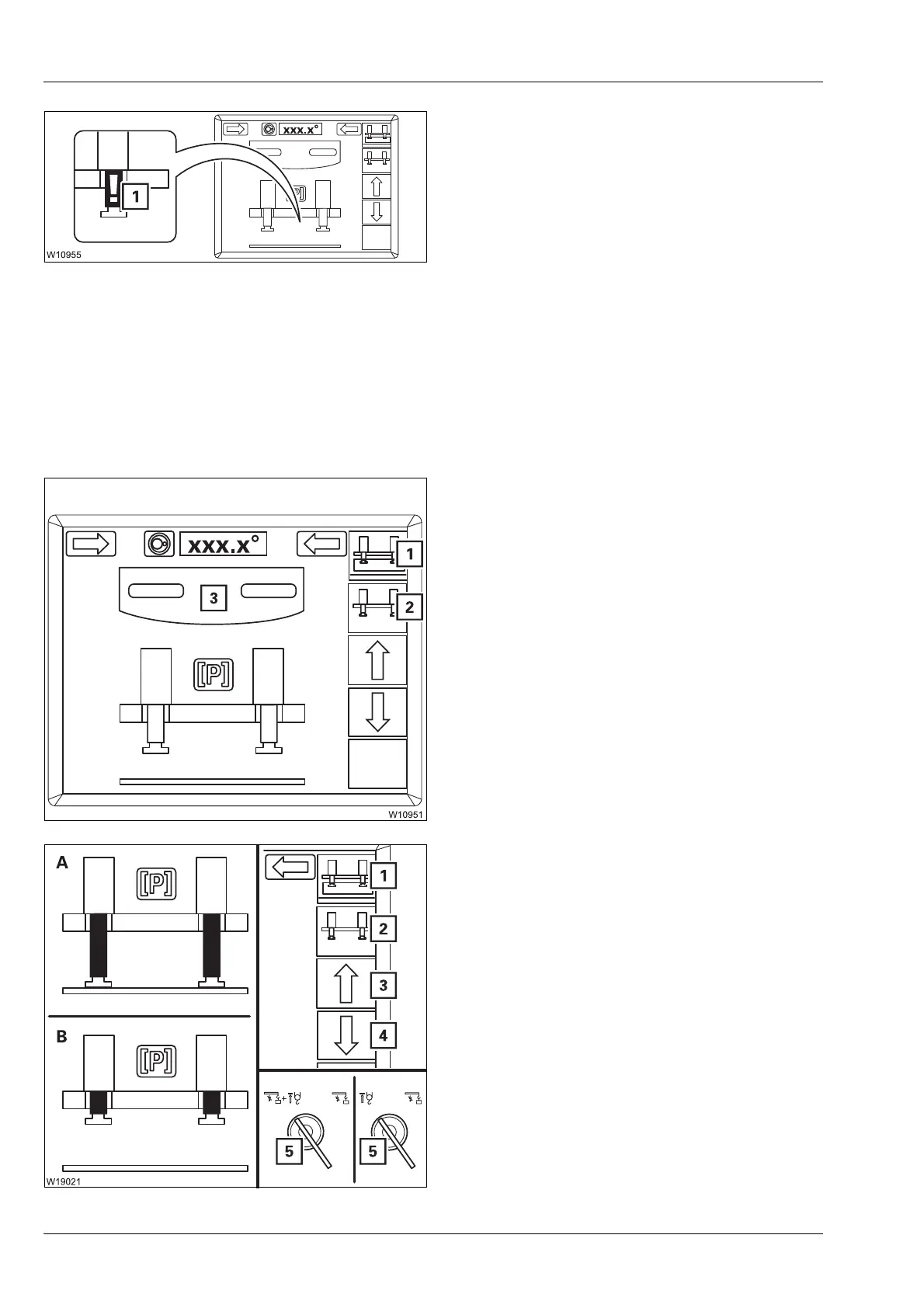

The Counterweight submenu opens.
If an error symbol (1) is displayed during
subsequent operation, please contact
Manitowoc Crane Care.
Extending/retract-
ing the lifting
cylinders
This section describes how to operate the lifting cylinders manually,
– for correcting the displayed rigging mode and
– for pre-charging the counterweight afterwards.
H
Always lift and lower the counterweight in automatic mode, otherwise slew-
ing with extended lifting cylinders will be blocked;
à Automatic mode
rigging
, p. 12 - 77, à Automatic mode unrigging, p. 12 - 78.
Correct the rigging mode
• You can use the automatic mode only if the
current rigging mode is displayed.
If necessary, correct the displayed rigging
mode as follows:
• Slew the superstructure out of the rigging
range – display (3) – so that the lifting cylin-
ders can be freely extended.
Assuming the symbol (1) is yellow with the
counterweight unrigged.
• Turn the key-operated switch (5) to the left.
• (A) Fully extend the lifting cylinders –
button (4).
• Let go of the key-operated switch (5).
• (B) – Fully retract the lifting cylinders –
button (3).
The symbol (2) turns yellow – counterweight
unrigged.
You can now use the automatic mode.
1 Yellow – counterweight rigged
2 Yellow – counterweight unrigged
