12.7 Rigging/unrigging the counterweight
12 - 78 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx

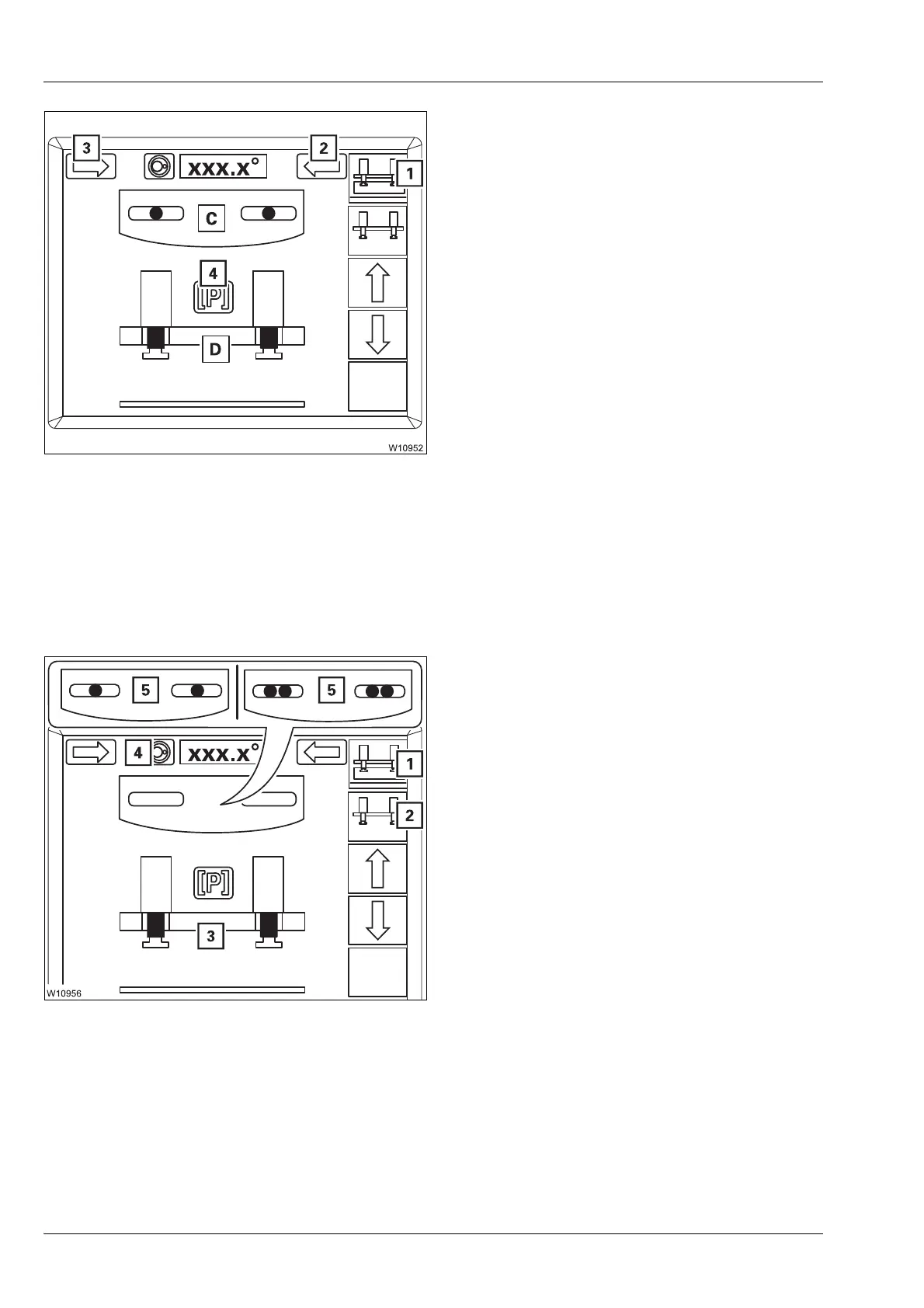

• To slew, move the control lever in the dis-
played direction (2) or (3) – the automatic
mode continues.
– The superstructure turns into position (C).
– The lifting cylinders are retracted (D).
– The counterweight is pre-charged –
symbol (4) green.
The symbol (1) is yellow and no longer
flashes, the rigging process is complete.
• Release the control lever.
Automatic mode
unrigging
While the automatic mode is being executed, you can always
– cancel the automatic mode;
à Cancel automatic mode, p. 12 - 80.
– interrupt the automatic mode by letting go of the control lever. After mov-
ing the lever in the displayed direction once more, the automatic mode is
continued.
Prerequisites
– Symbol (1) is yellow. If the symbol (2) is yel-
low;
à Correct the rigging mode, p. 12 - 76.
– The lifting cylinders are fully retracted – dis-
play (3).
– The slewing gear must be switched on –
symbol (4) green.
– The superstructure is in the rigging range –
one display (5) green.
