Rigging work
12.7 Rigging/unrigging the counterweight
Operating Manual GMK6300L 3 112 xxx en 12 - 79
xx.xx.xxxx
Switch on automatic mode
• Press the button (2) once – the symbol
flashes.

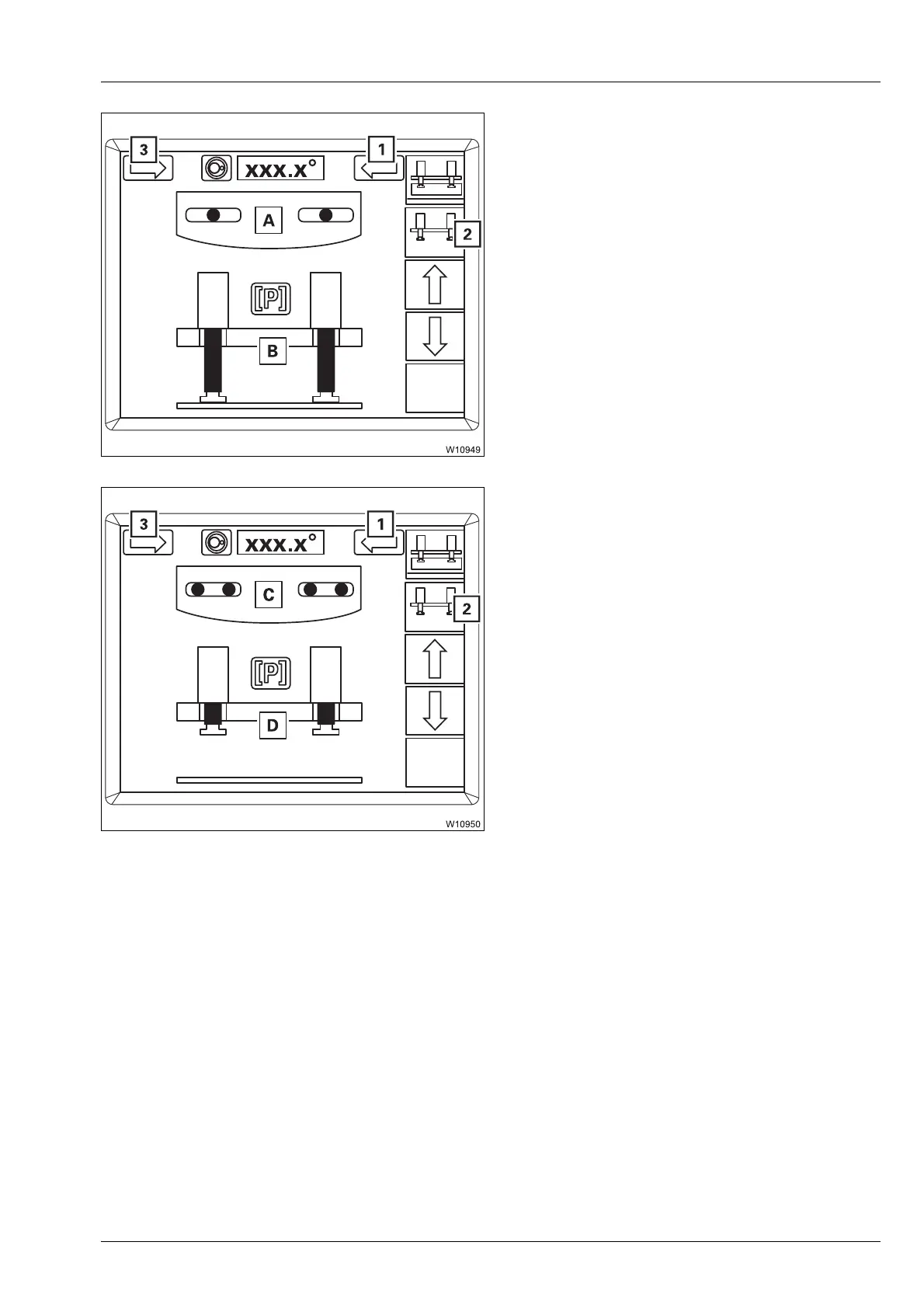

Execute automatic mode
• To slew, move the control lever in the dis-
played direction (1) or (3) – the automatic
mode starts.
– The superstructure turns into position (A).
– The lifting cylinders are extended (B).
• Release the control lever.
• To slew, move the control lever in the dis-
played direction (1) or (3) – the automatic
mode continues.
– The superstructure turns into position (C).
– The lifting cylinders are retracted (D).
The symbol (2) is yellow and no longer
flashes, the rigging process is complete.
• Release the control lever.
