OPERATING CONTROLS AND FEATURES GRT8120 OPERATOR MANUAL
3-34 Published 3-22-2021, Control # 702-02
CONTROLS AND FEATURES AT REAR OF
CAB

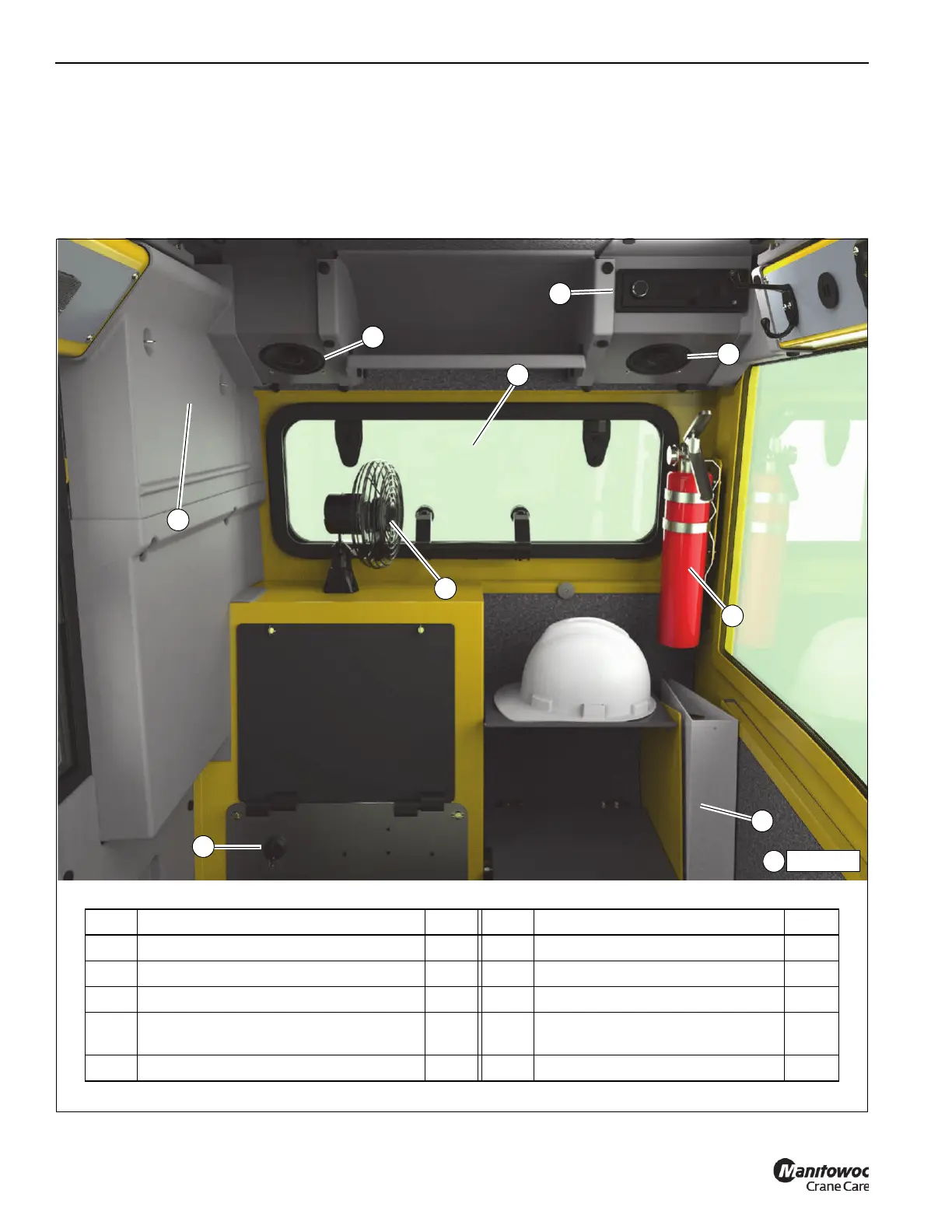

Controls and features located at rear of the cab (Figure 3-17)
include the radio, fan, fire extinguisher, user manual holder,
fuse and relay panel, and limit bypass switch for non-CE
certified cranes.
FIGURE 3-17
Item Description Page Item Description Page
1 Radio (Optional) 3-35 6 User Manual Holder 3-35
2 Speakers (Optional) 3-35 7 Fuse and Relay Panel 3-36
3 Rear Window 3-35 8 Buzzer (Not Shown) 3-37
4Fan 3-35 9
Maintained Limit Bypass Switch
(Non-CE Certified Cranes)
3-37
5 Fire Extinguisher 3-35
9838-16a
9
1
2
8
Not shown
4
7
2
3
5
6
