GRT8120 OPERATOR MANUAL OPERATING CONTROLS AND FEATURES
Ladders and Grab Handles

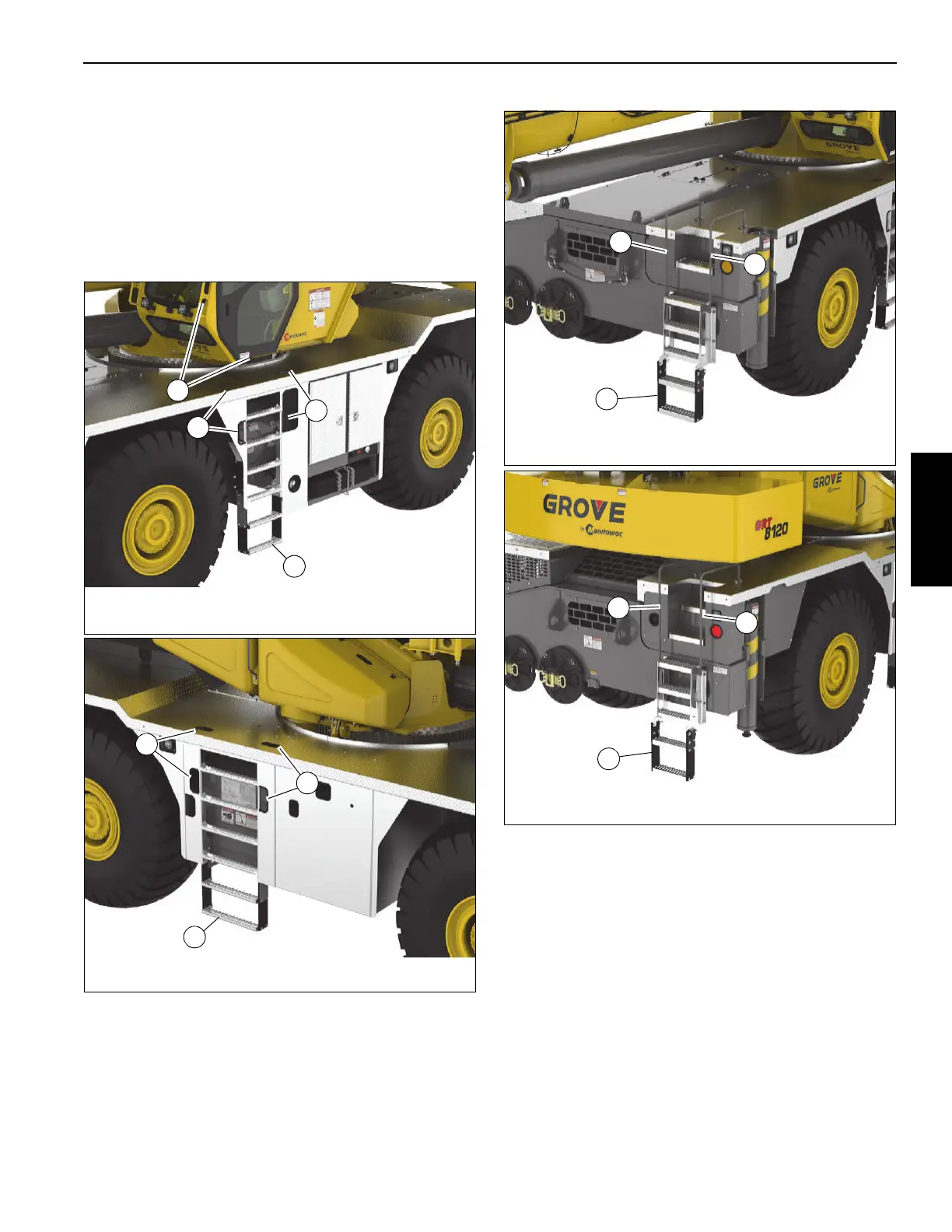

Ladders (1, Figure 3-33 to Figure 3-36) and grab handles (2)
are located at the left and right sides of the crane as well as
at the front and rear of the crane.
Use these ladders and grab handles to climb and access the
carrier deck or the cab.
Always maintain a three-point contact to the crane when
using the ladders and grab handles.
FIGURE 3-33
9838-32
2
2
2
1
LEFT SIDE
FIGURE 3-34
9838-33
RIGHT SIDE
2
2
1
FIGURE 3-35
9838-34
FRONT
1
2
2
FIGURE 3-36
9838-35
REAR
1
2
2
