5-6 Published 3-22-2021, Control # 702-02
SET-UP AND INSTALLATION GRT8120 OPERATOR MANUAL
Cab Mirrors

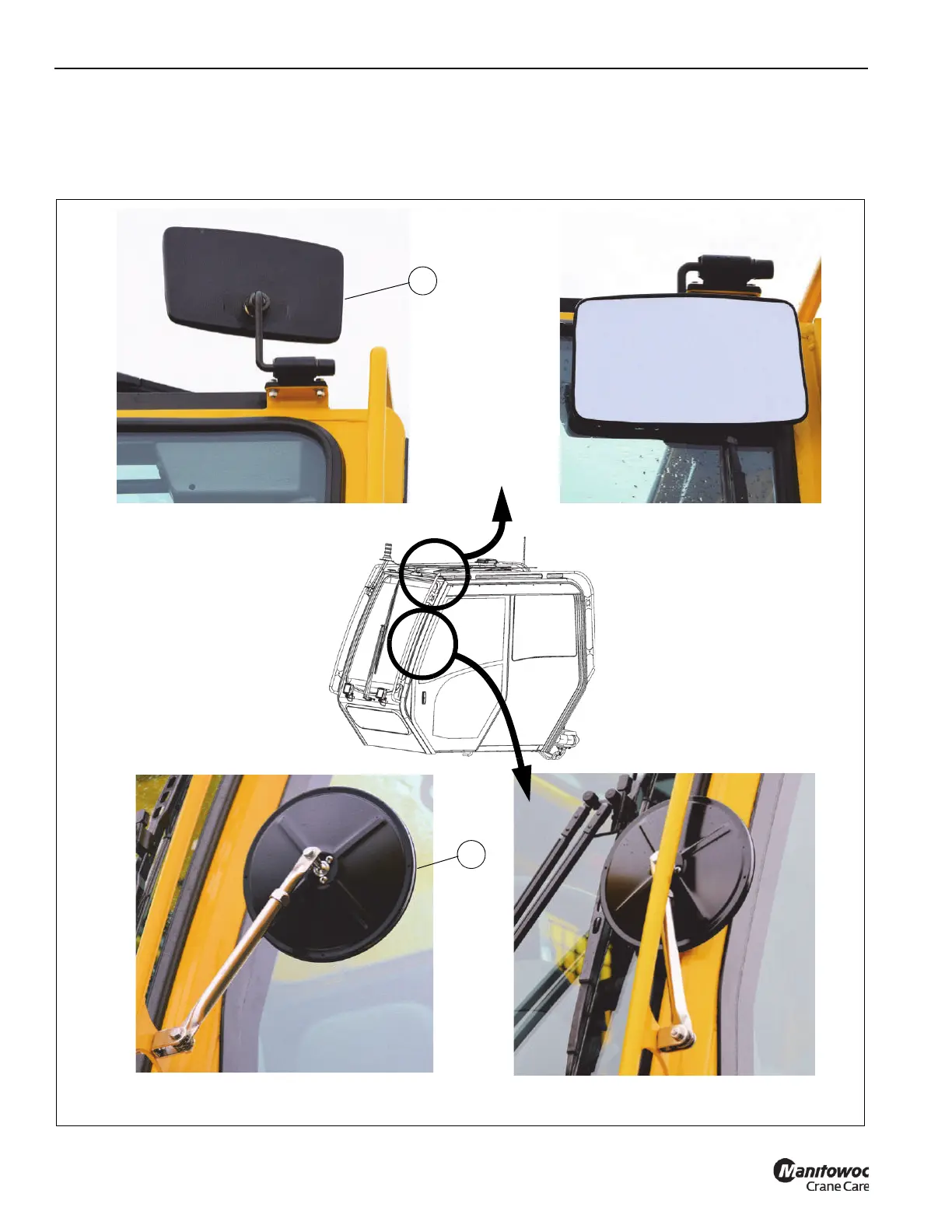

Figure 5-5 shows the working and transport positions for the
top (1) and side (2) cab mirrors. The operator can use the top
cab mirror to view the hoists and the side mirror to view
behind the left side of the cab. The cab mirrors must be
retracted for stowed and moved to working position for
operation.
Working Position
Transport Position
Working Position
Transport Position
1
2
FIGURE 5-5
9930
9929
9931
9932
