OPERATING CONTROLS AND FEATURES GRT8120 OPERATOR MANUAL
3-48 Published 3-22-2021, Control # 702-02

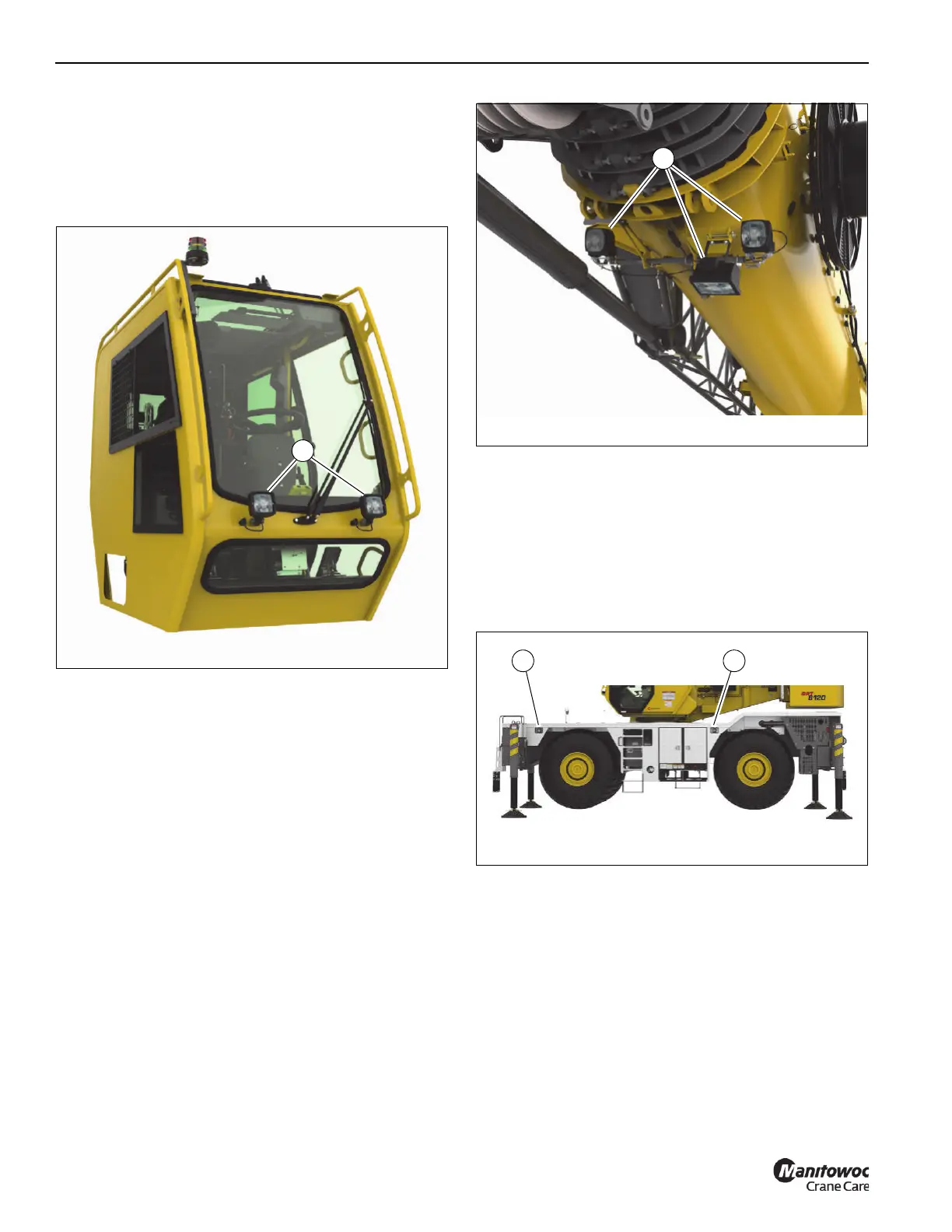

Cab Mounted Work Lights
Adjustable Cab Mounted Work Lights (1, Figure 3-30) are
located on the front of the cab.
The lights are controlled by the Cab-Mounted Lights Switch,
page 3-8.
Boom Mounted Work Lights (Optional)
Boom-Mounted Work Lights (1, Figure 3-31) are optional
crane equipment and mounted to the bottom of the boom.
The Boom-Mounted Work Lights are controlled by the
Boom-Mounted Lights Switch (Optional), page 3-8.
Optional motorized Boom-Mounted Work Lights are adjusted
by the Boom-Mounted Lights Motor Switch (Optional), page
3-8.
Side Mounted Carrier Work Lights
Two carrier work lights (1, Figure 3-32) are located on each
side of the carrier. These four lights can be adjusted by hand
to illuminate the desired area around the crane during low
light or nighttime ground work. The four lights are toggled on
and off in the Outrigger Extend/Retract function screen of the
Operator Display Module (ODM) (refer to Operating the Side
Mounted Carrier Work Lights, page 4-105).
