Grove Published 3-22-2021, Control # 702-02 4-69
GRT8120 OPERATOR MANUAL OPERATING PROCEDURES
Main Screen

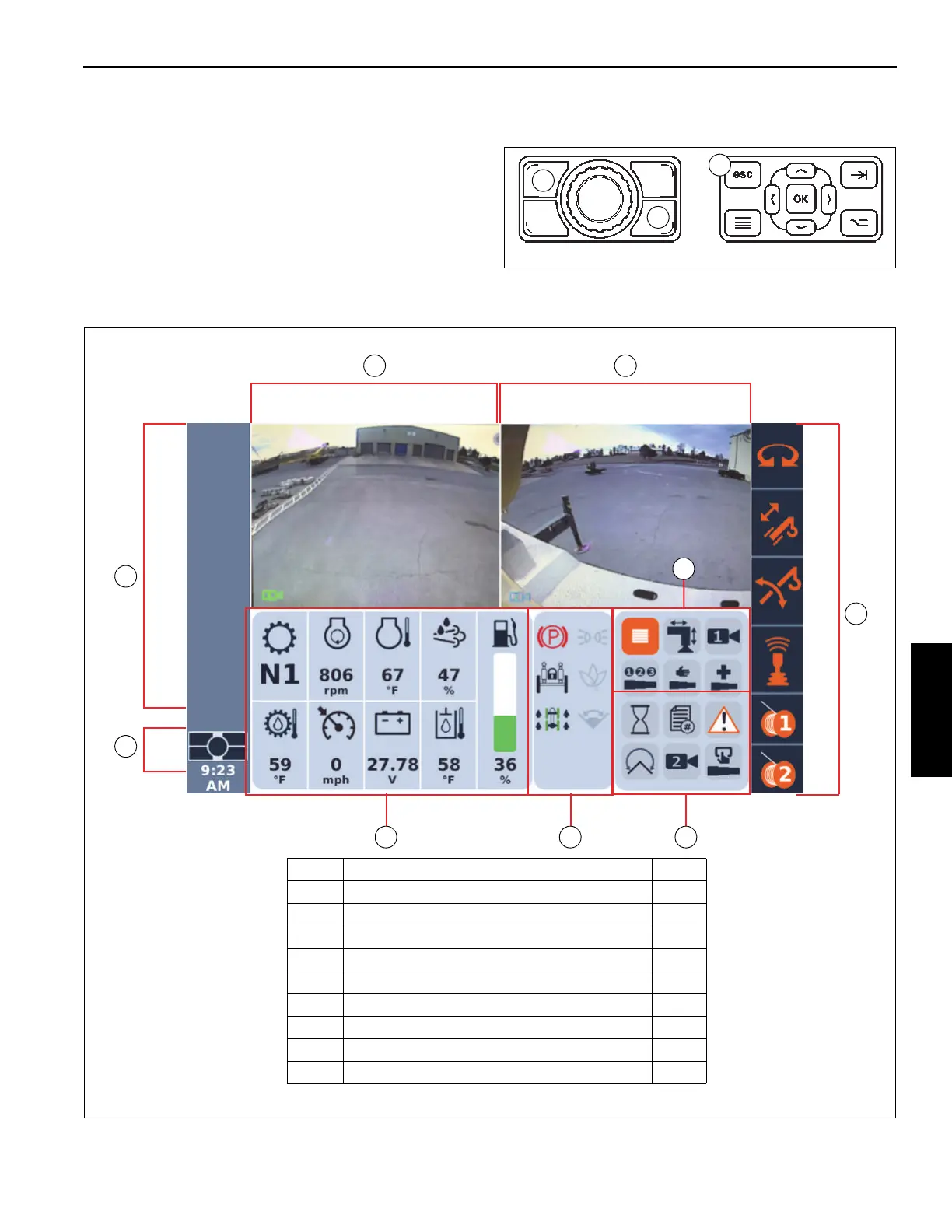

The Main Screen (Figure 4-67) appears on the ODM (lower
screen) when the key switch is initially set to the ON position.
Navigating back to the Main Screen can be accomplished by
doing one of the following procedures:
• Press the Screen Toggle Button (1, Figure 4-66) at the
Jog Dial to select the ODM screen control, then press
the Escape Button (2).
- or -
• Press the Escape Button (3, Figure 4-66) on the
Navigation Control Pad at the ODM.
The Main Screen is separated into seven areas as shown in
Figure 4-67.
FIGURE 4-67
1
10254-39a
5
6
7
2
3
Item Description Page
1Alerts Area 4-70
2 Active Screen Indicator Area 4-76
3 Crane Information Area 4-77
4 Crane Status Area 4-80
5 Frequently Used Quick Select Menu Area 4-85
6 Status Bar 4-86
7 Permanent Quick Select Menu Area 4-88
8 Camera 2 - Right Side View
9 Camera 1 - Rear View
4
9 8
