OPERATING CONTROLS AND FEATURES GRT8120 OPERATOR MANUAL
3-4 Published 3-22-2021, Control # 702-02
STEERING WHEEL AND COLUMN
The steering wheel and column assembly is a pedestal style
tilt and telescoping steering column. It can tilt rearward 30° or
telescope 60 mm (2.3 in). The steering column includes the
ignition switch as well as levers and switches for operating
the crane (Figure 3-2).
Item Description Page
1 Steering Wheel 3-5
2 Turn Signal Lever and Horn Controls 3-5
3 Parking Brake Switch 3-5
4 Headlights Switch 3-5
5 Drive Axle Selector Switch 3-5
6 Hazard Lights Switch 3-6
7 Transmission Shift Lever 3-6
8 Ignition Switch 3-6
9 Steering Column Tilt and Telescope Lock Lever 3-6
9838-6

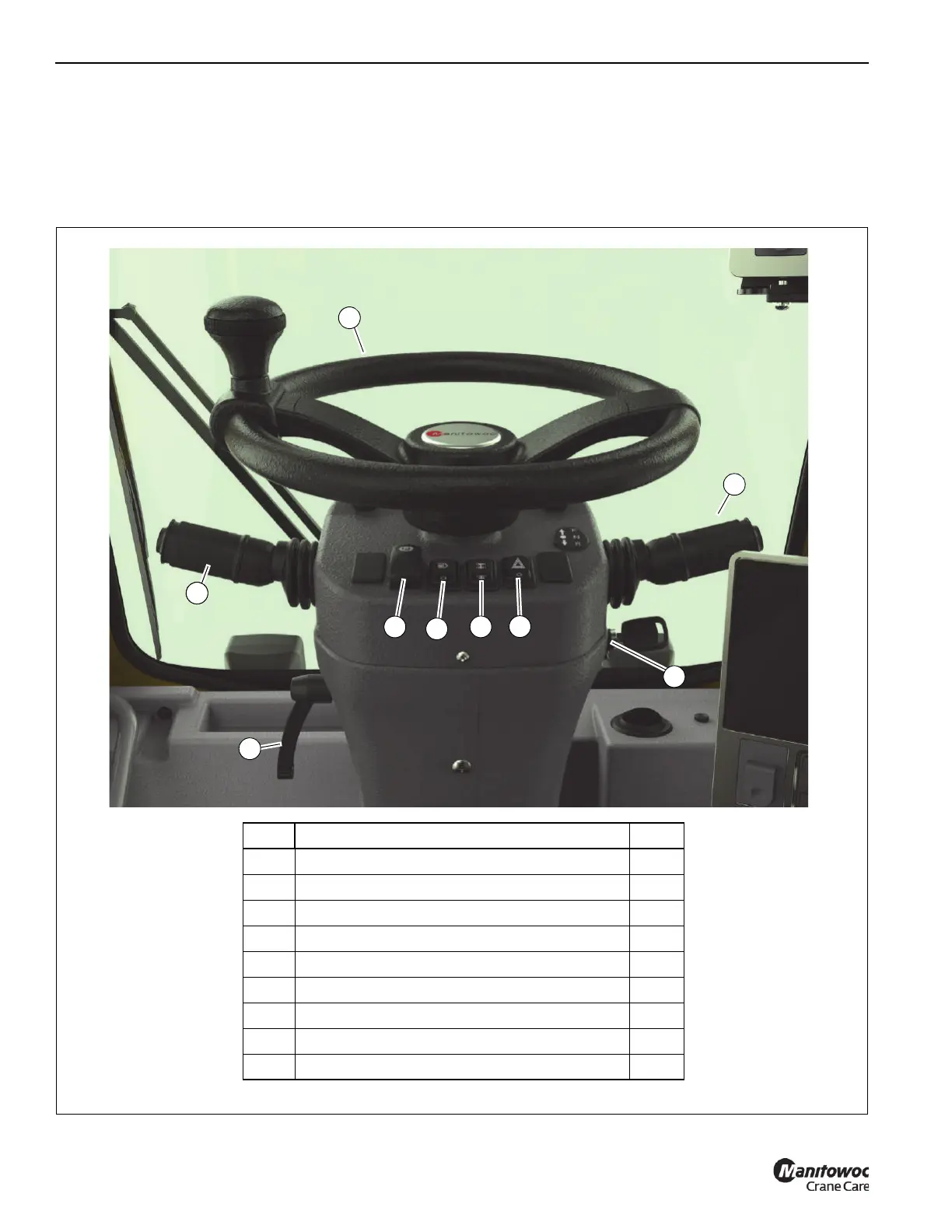

FIGURE 3-2
4
3
65
7
1
9
2
1
8
