Manitowoc Grove GRT8120 - Crane Information Area

Grove Published 3-22-2021, Control # 702-02 4-77
GRT8120 OPERATOR MANUAL OPERATING PROCEDURES
4
Crane Information Area
The following indicators make up the Crane Information Area

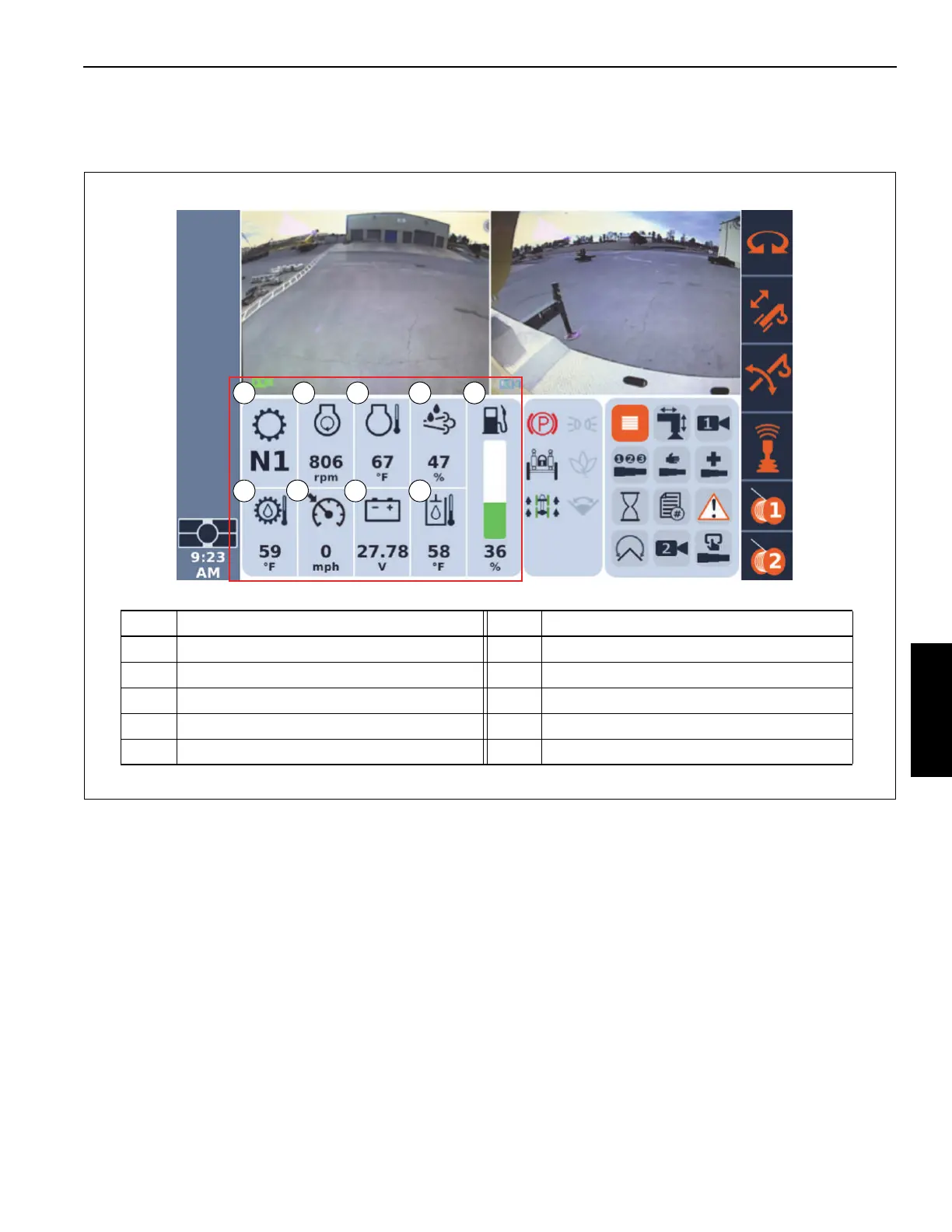

(Figure 4-70) of the ODM Main Screen.
10254-39a
FIGURE 4-70
1 3
7
8 96
42 5
Item Description Item Description
1 Direction/Gear Indicator 6 Transmission Oil Temperature Indicator
2 Engine Speed Indicator 7 Speedometer
3 Engine Coolant Temperature Indicator 8 Battery/Charging Voltage Indicator
4 Diesel Exhaust Fluid (DEF) Level Indicator 9 Hydraulic Oil Temperature Indicator
5 Diesel Fuel Level Indicator
