5-2 Published 3-22-2021, Control # 702-02
SET-UP AND INSTALLATION GRT8120 OPERATOR MANUAL
SETUP OF CRANE BEFORE AND AFTER
TRANSPORTING

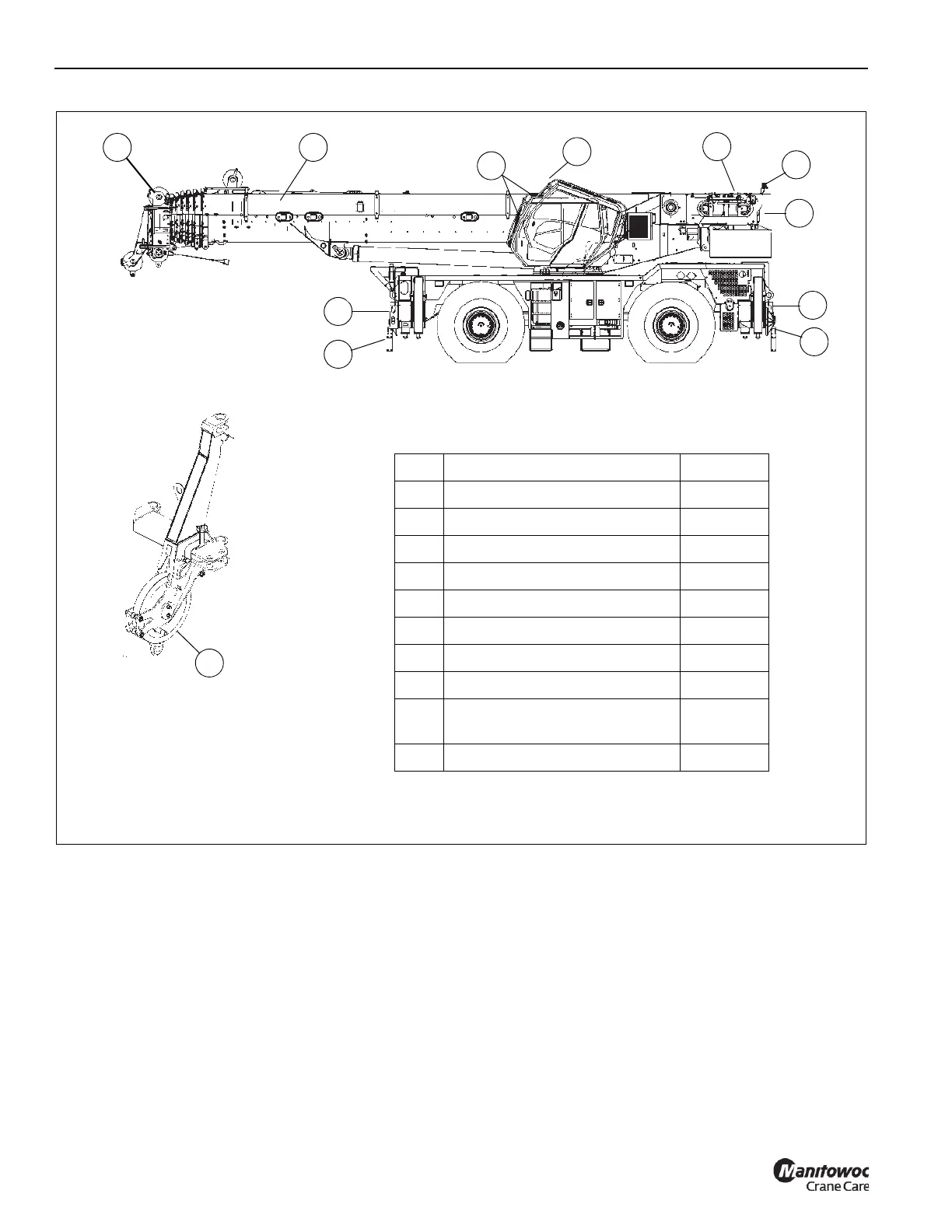

Figure 5-1 shows the components that must be placed in to
their transport positions before transporting the crane.
Securing all valve cover latches with tie-straps is
recommended to prevent accidental opening during
transportation. After transporting the crane, place these
components into their working positions.
10086-1
3
2
4
6
6
7
7
8
FIGURE 5-1
5
10
Item Description Page
1 Hoist Camera page 5-3
2 Hoist Platform page 5-4
3 Beacon Lights (Optional) page 5-5
4 Cab Mirrors page 5-6
5 RCL Light Tower (Optional) page 5-7
6 Access Ladders page 5-8
7 Outrigger Floats page 5-9
8 Hydraulic Hose Drum (Optional) page 5-9
9
Boom Position Indicator Light
and Anemometer (Optional)
page 5-9
10 Auxiliary Boom Nose page 5-9
8994
1
9
To Next Page
