OPERATING PROCEDURES GRT8120 OPERATOR MANUAL
4-30 Published 3-22-2021, Control # 702-02
Assignment for Display

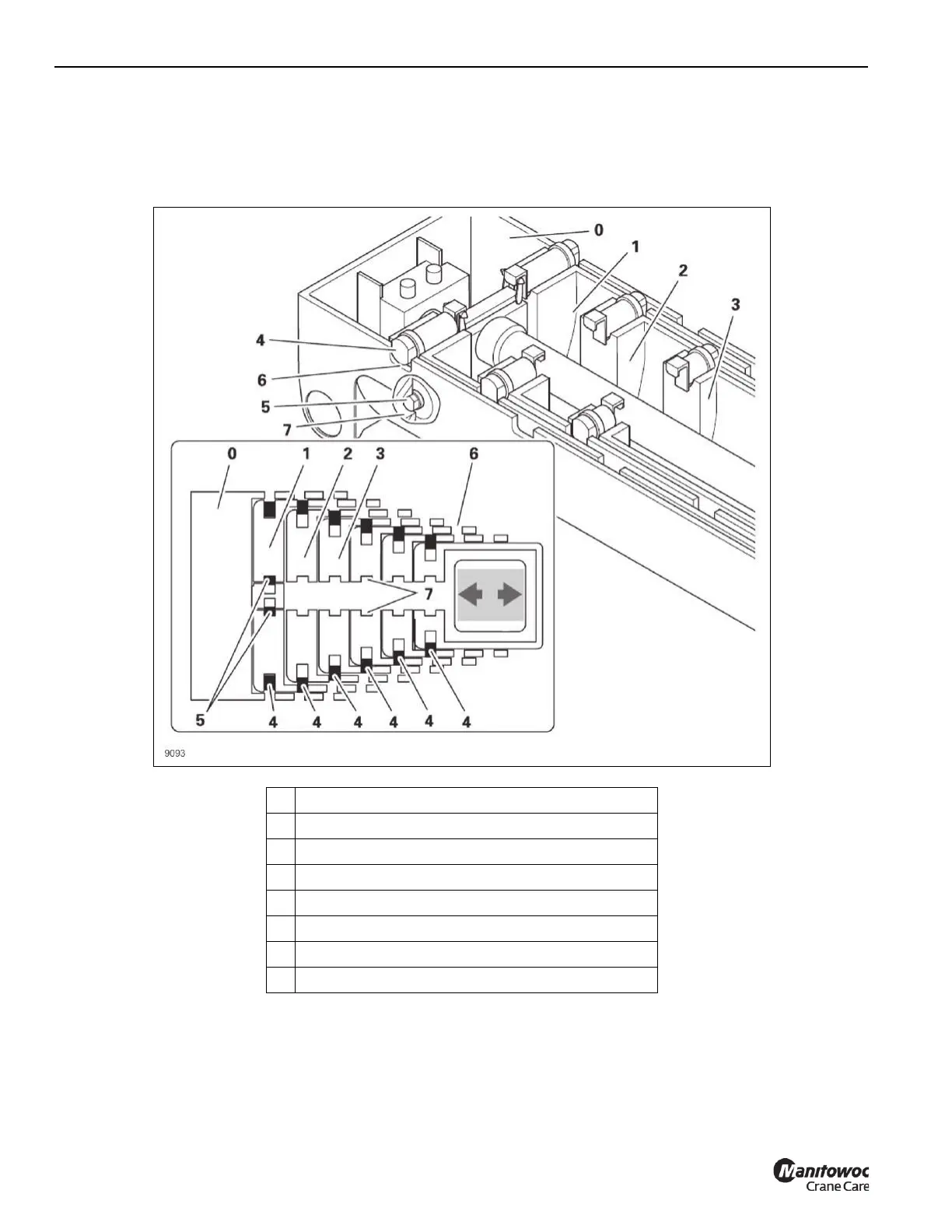

The CCS display shows a sectional view of the main boom in
the menus.
The following elements are displayed Figure 4-11:
0 Base section
1 Telescopic section 1
2 Telescopic section 2
3 Telescopic section 3
4 Section locking pin on the telescopic section
5 Cylinder locking pins on the telescoping cylinder
6 Section pin cutouts (holes)
7 Cylinder pin engagement cutouts (holes)
9093
FIGURE 4-11
