Grove Published 3-22-2021, Control # 702-02 5-9
GRT8120 OPERATOR MANUAL SET-UP AND INSTALLATION
5
Outrigger Floats
The outrigger floats (1, Figure 5-8) are stowed on the
outrigger boxes. The outrigger floats must be stowed prior to
transport.
Stowing an Outrigger Float for Transport
NOTE: An outrigger float weighs approximately 30 kg
(65.0 lbs).
1. Remove pins (3) from stowage posts (2).
2. Lift outrigger float into position using handles (4).
3. Install outrigger float (1) on stowage posts (2) on the
outrigger box.
4. Install pins (3) in posts (2) to secure the outrigger float.
Removing an Outrigger Float from Stowage
NOTE: An outrigger float weighs approximately 30 kg
(65.0 lbs).
1. Hold the handle (4) and remove pins (3) from posts (2).
2. Remove the outrigger float (1) from stowage posts (2) on
the outrigger box.
3. Install pins (3) in stowage posts (2).
Hydraulic Hose Drum (Optional)
If installed on the boom, the hydraulic hose drum must be
secured before transport. For more information, see
Checking the Locking Device on the Hose Drum, page 5-52.
Boom Position Indicator Light and
Anemometer (Optional)
The boom position light and anemometer assembly must be
removed and stowed for transport. For more information, see
Anemometer/Boom Position Light (Optional), page 5-63.
Auxiliary Single-Sheave Boom Nose
The auxiliary single-sheave boom nose must be secured for
transport. For more information, see Rigging in Transport
Position, page 5-62.

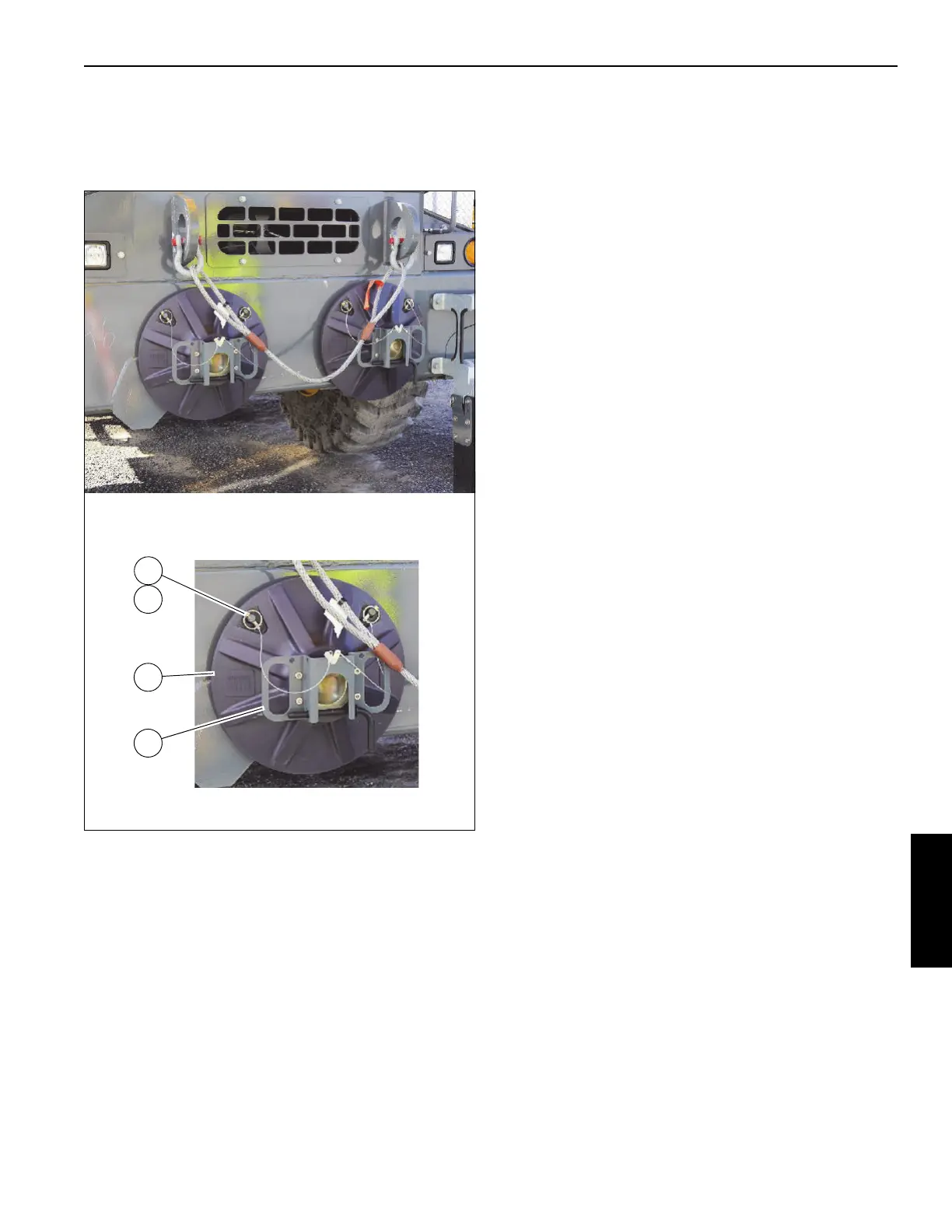

FIGURE 5-8
2 Places
Transport Position
3
9230
2
4
1
