Camera Menu Group

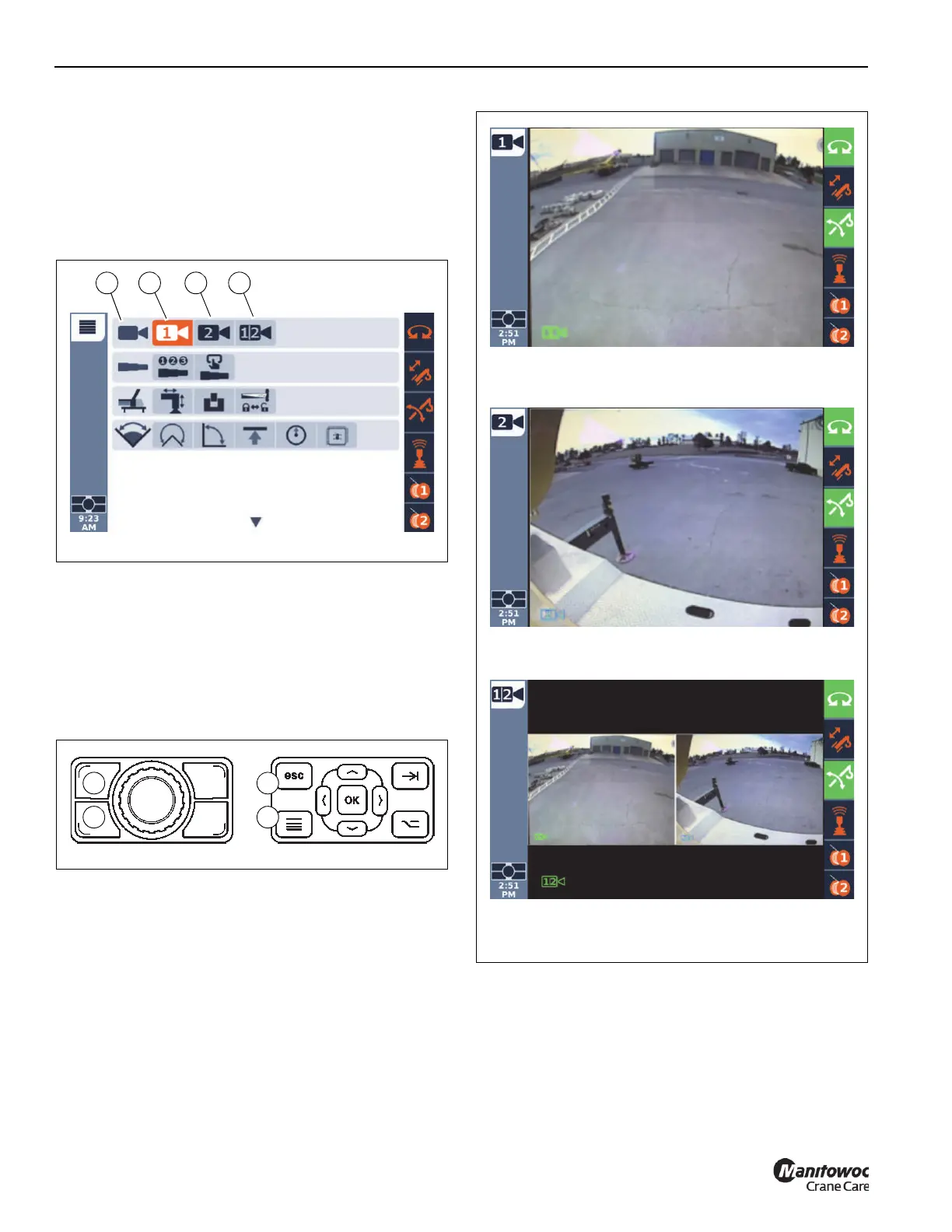

The Camera Menu Group (1, Figure 4-77) includes the
following camera view function icons:
• Camera View 1 – Rear View (2)
• Camera View 2 – Right Side View (3)
• Camera Views 1/2 – Rear / Right Side Views (4)
These camera view function icons are used to select which
camera view is displayed on the Camera View Screen
(Figure 4-79).
Use the Jog Dial or Arrow Buttons on the Navigation Control
Pad to select the desired camera view icon. Press the Jog
Dial or the OK Button to show the Camera View Screen.
To exit the Camera View Screen, press the Main Screen
Button (1, Figure 4-78) or Menu Screen Button (2).
FIGURE 4-77
10254-3
1 2 3 4
FIGURE 4-78
1
2
1
2
FIGURE 4-79
10254-40a thru 10254-42a
Camera 1 - Rear View Screen
Camera 2 - Right Side View Screen
Camera 1/2 - Rear / Right Side View Screen
