Grove Published 3-22-2021, Control # 702-02 4-95
GRT8120 OPERATOR MANUAL OPERATING PROCEDURES
4

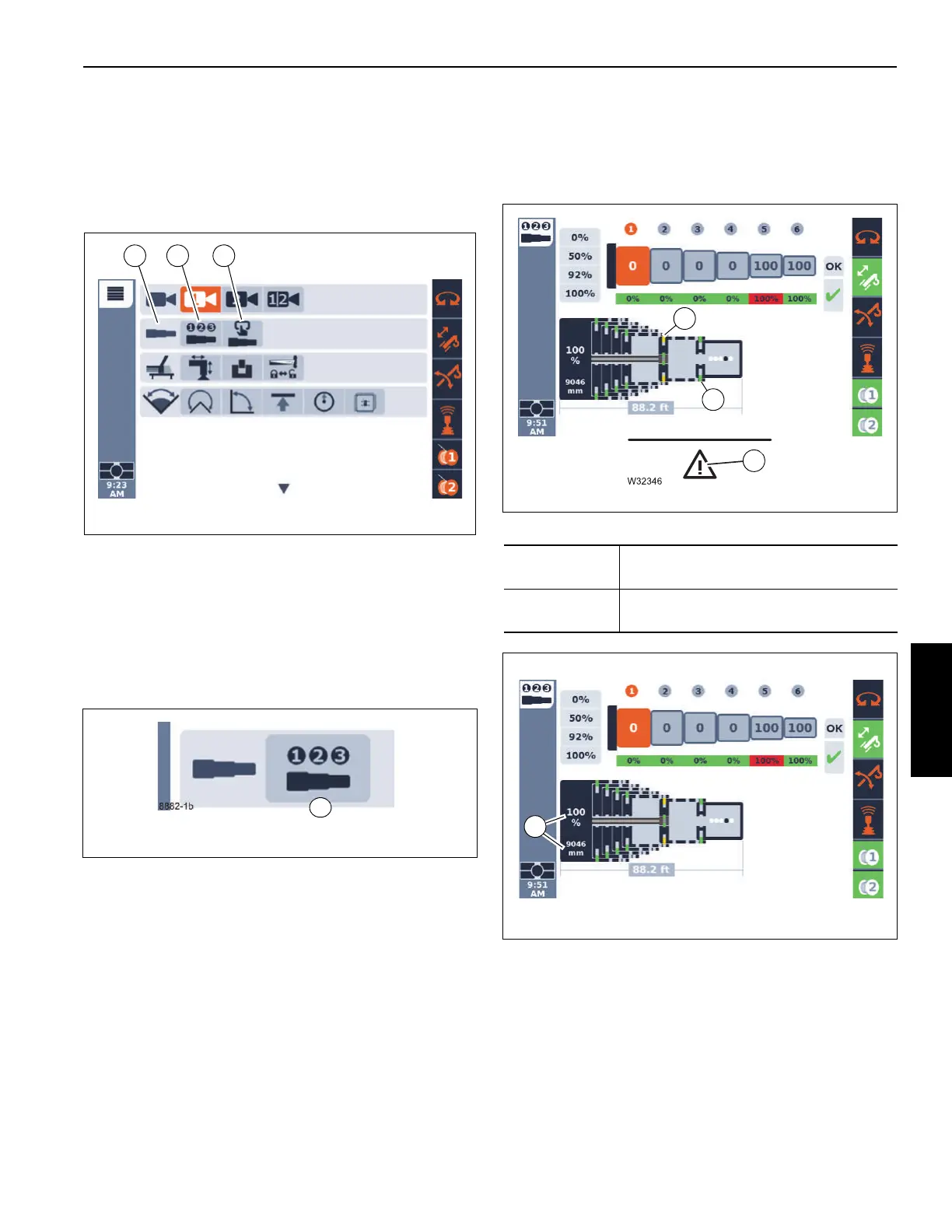

Tele-automation Menu Group
The Tele-automation Menu Group (1, Figure 4-80) includes
the following boom telescoping function icons:
Semi-automatic Telescope Mode (2) (page 4-95)
Boom Configurator (3) (page 4-97)
Semi-automation Telescope Mode
NOTE: For more information about telescoping with
semi-automation refer to Semi-automatic
Telescoping, page 4-26.
Open Menu
To open: Select symbol (1) and confirm – menu is opened
Telescope Diagram Display
Current relation of the telescopic sections to each other –
section of top view Figure 4-82.
The image shown in Figure 4-82 shows the status of the
section and cylinder pins. Green (1) indicates that the pin is
locked, Yellow (2) shows that it is in an intermediate position
and Red is unlocked. Additionally, if the hazard triangle (3) is
present, an error exists.
Telescoping Cylinder Length Display
FIGURE 4-80
10254-3
1 2 3
FIGURE 4-81
8882-1b
1
Display:
Current extended length of the
telescoping cylinder (1, Figure 4-83)
Unit of
measurement:
Displayed depending on setting, mm
(millimeters) or ft (feet) and percent (%)
FIGURE 4-82
10254-13
1
3
1
2
FIGURE 4-83
10254-13
1
