OPERATING PROCEDURES GRT8120 OPERATOR MANUAL
4-96 Published 3-22-2021, Control # 702-02
Main Boom Length Display
Telescopic Sections Display
Current telescope Status Display
Extended length of the telescopic sections in percentage
Pre-selection for all Telescopic Sections
Display:
Current extended length of the main
boom (1, Figure 4-84)
Unit of
measurement:
Displayed depending on setting, m
(meters) or ft (feet)
1 - 6
Display of telescopic sections 1 to 6
(Figure 4-85)

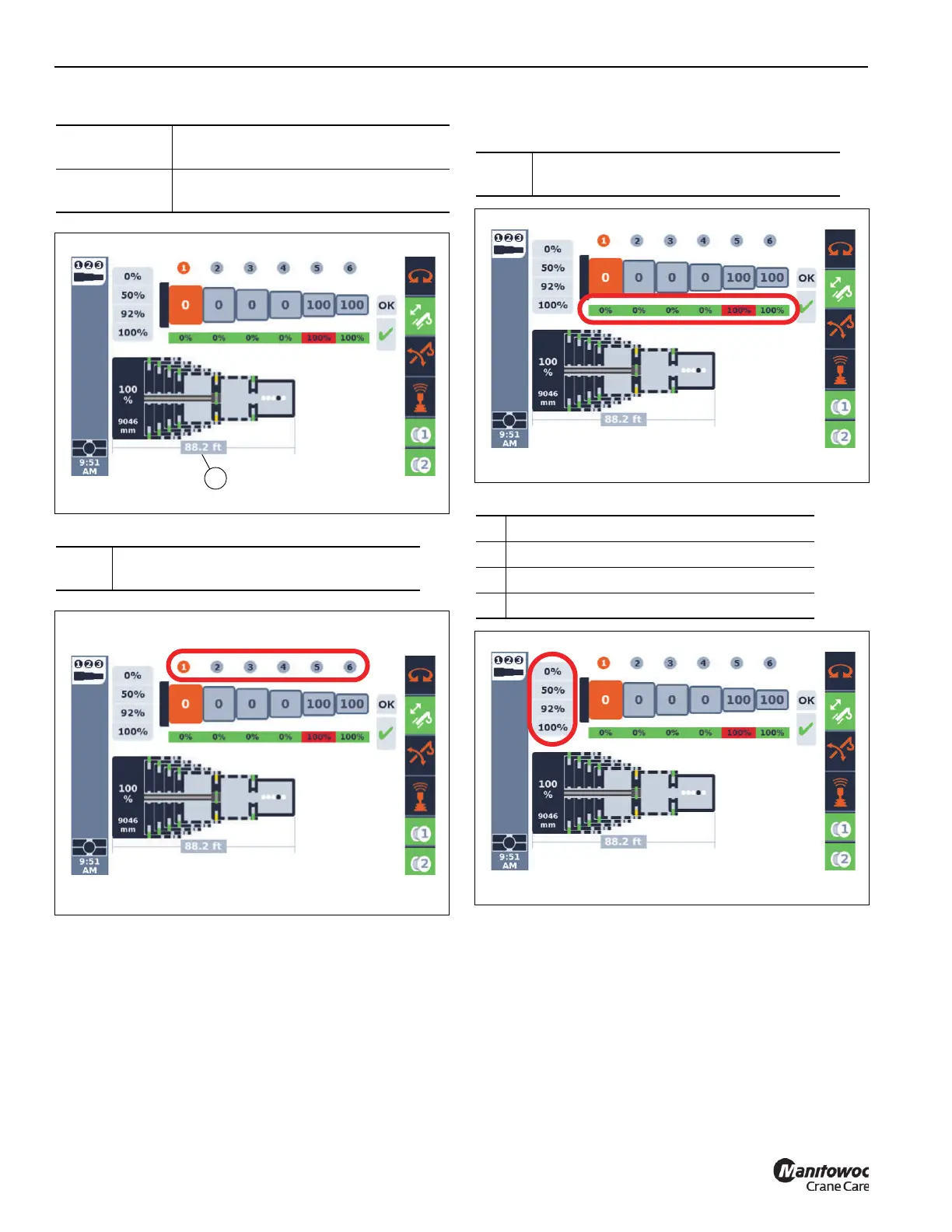

FIGURE 4-84
10254-13
1
FIGURE 4-85
10254-13
1 - 6
Display of telescopic sections 1 to 6
(Figure 4-86)
1 Pre-selection telescoping 0%
2 Pre-selection telescoping 50%
3 Pre-selection telescoping 92%
4 Pre-selection telescoping 100%
10254-13
FIGURE 4-86
10254-13
FIGURE 4-87
