Access Ladders
The access ladders (1, Figure 5-7) are located on the front
and rear outrigger boxes. The access ladders must be raised
for transport and must be lowered during operation.
Raising the Access Ladder for Transport
1. Remove retaining clips (3) and pins (2).
2. Raise the ladder (1) in to transport position.
3. Install pins (2). Install retaining clips (3) to secure the
pins.
Lowering the Access Ladder
1. Remove retaining clips (3) and pins (2).
2. Lower the ladder (1).
3. Install pins (2). Install retaining clips (3) to secure the
pins.
1
3
2
Working Position

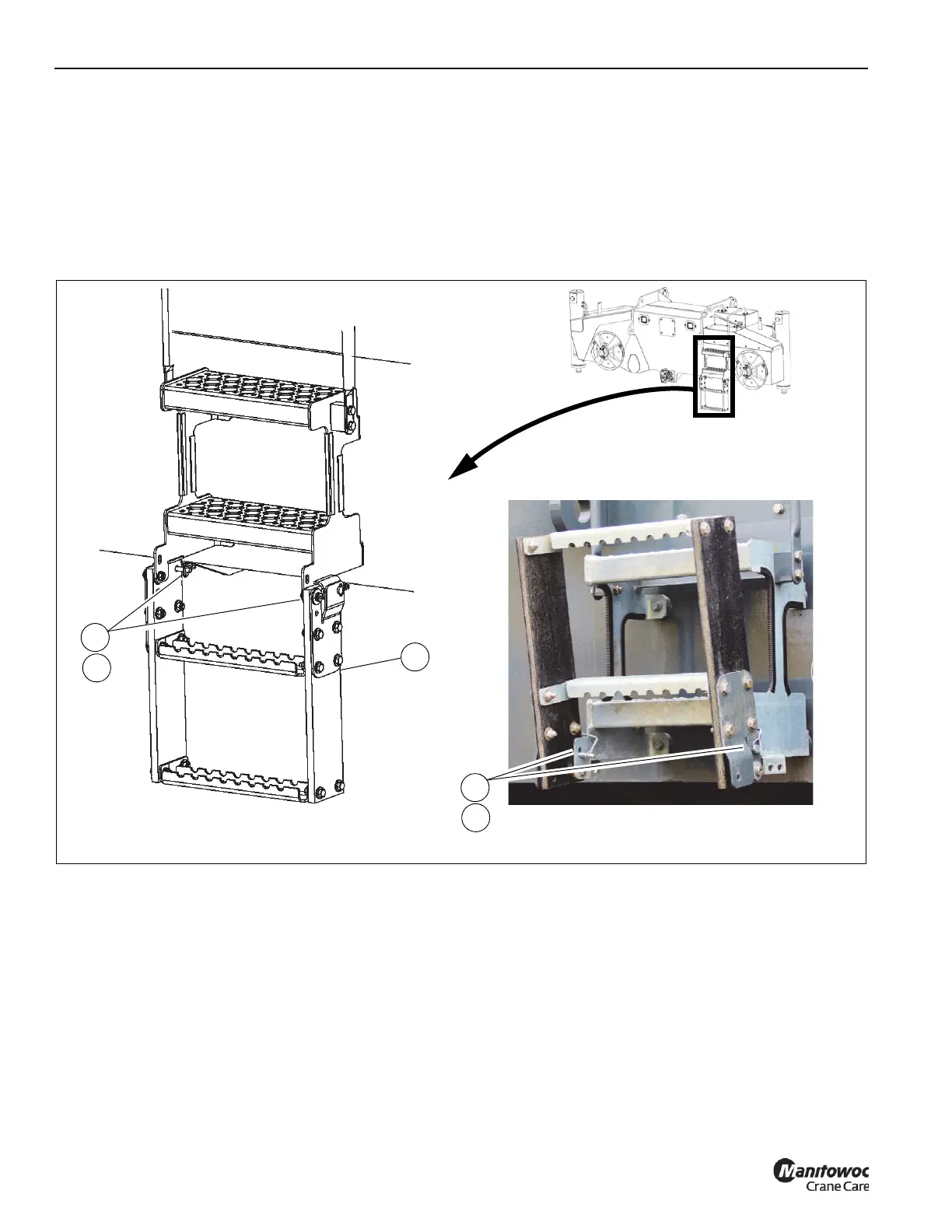

FIGURE 5-7
3
2
Transport Position
9942
9943
9944
