GRT8120 OPERATOR MANUAL OPERATING PROCEDURES
4

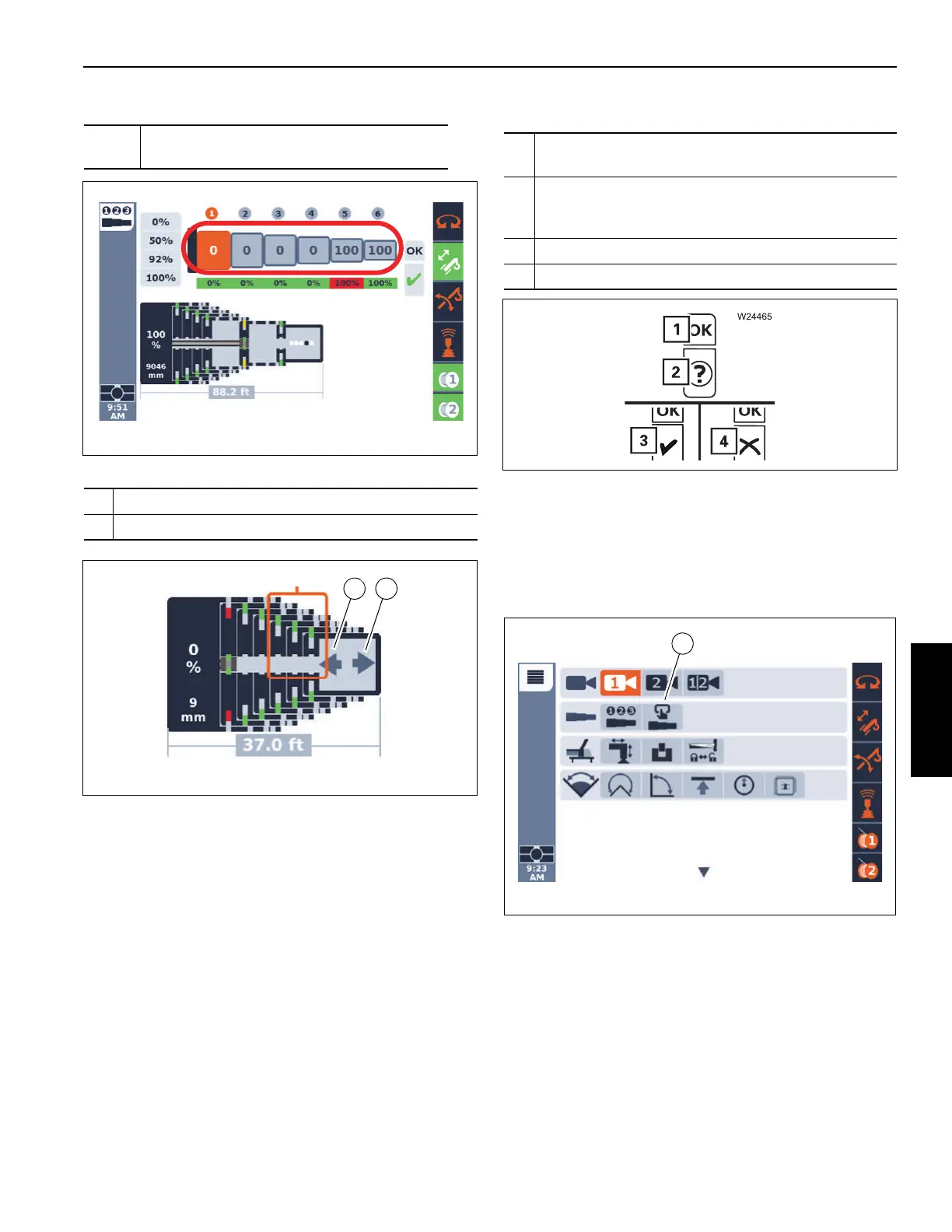

Pre-selection for Individual Telescopic Sections
Tele-automation Direction Display
Confirm Pre-selection
Boom Configurator Mode
NOTE: Refer to Boom Configurator, page 4-45 for more
information on how the Boom Configurator screen
is used in the telescoping operation.
To open: Select symbol (1, Figure 4-91) and confirm – menu
is opened
1 - 6
Display of telescopic sections 1 to 6
(Figure 4-85)
1 Start telescoping with Retract (Figure 4-89)
2 Start telescoping with Extend
10254-13
FIGURE 4-88
FIGURE 4-89
10254-6a
1 2
1
Confirm request to use entered telescoping values
(Figure 4-90)
2
Once a new set of values are entered for telescoping,
the question-mark appears until the OK is confirmed.
Then the check-mark or the red-X is shown
3 Requested telescoping is accepted symbol
4 Requested telescoping not accepted symbol
FIGURE 4-90
8854-169
FIGURE 4-91
10254-3
