OPERATING PROCEDURES GRT8120 OPERATOR MANUAL
4-174 Published 3-22-2021, Control # 702-02
Hoist Camera
The Hoist Camera View can be set to show on the Main
Screen of the Rated Capacity Limiter Display Module (RDM).
When enabled, the Hoist Camera View (1, Figure 4-207) will
automatically show in place of the Outrigger Position
View (2) when the main or optional auxiliary hoist is
operating (reeling in or out). When the hoists are not
operating, the Outrigger Position View will show on the Main
Screen.
Select and confirm the Hoist Camera View Icon
(3, Figure 4-207) to enable or disable the hoist camera view.
The Hoist Camera View can also be set to show continuously
in full screen on the RDM (Figure 4-209).
The full screen view of the hoist camera is enabled in the
Menu Screen of the RDM. The operator can access the
Menu Screen from the Main Screen by selecting and
confirming the Menu Icon (1 Figure 4-208), or by pressing
the Menu Button at the Jog Dial (2) or the RDM Navigation
Control Pad (3).

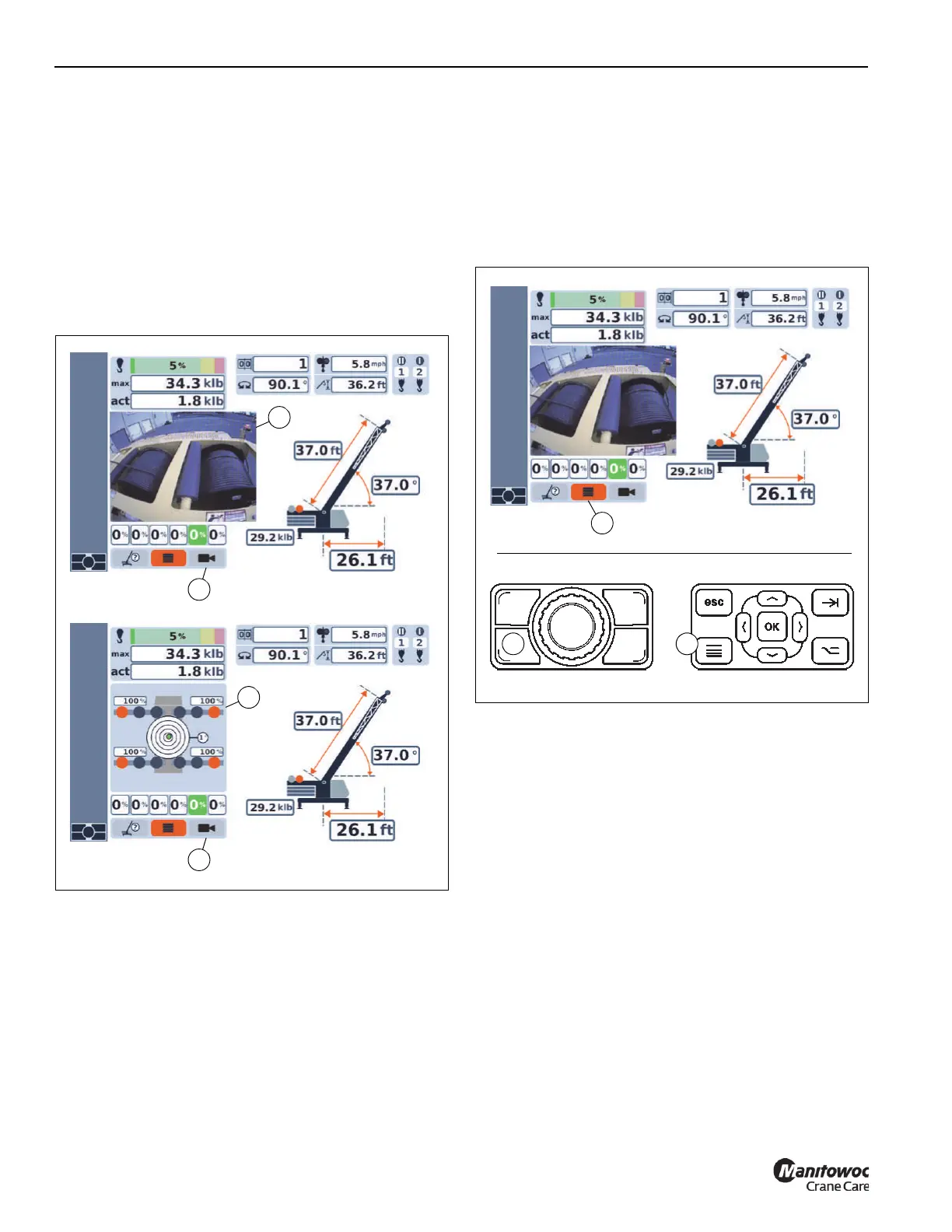

FIGURE 4-207
