Grove
Published 3-22-2021, Control # 702-02
4-175
GRT8120 OPERA
TOR MANUAL
O
PERA
TING PROCEDURES
4

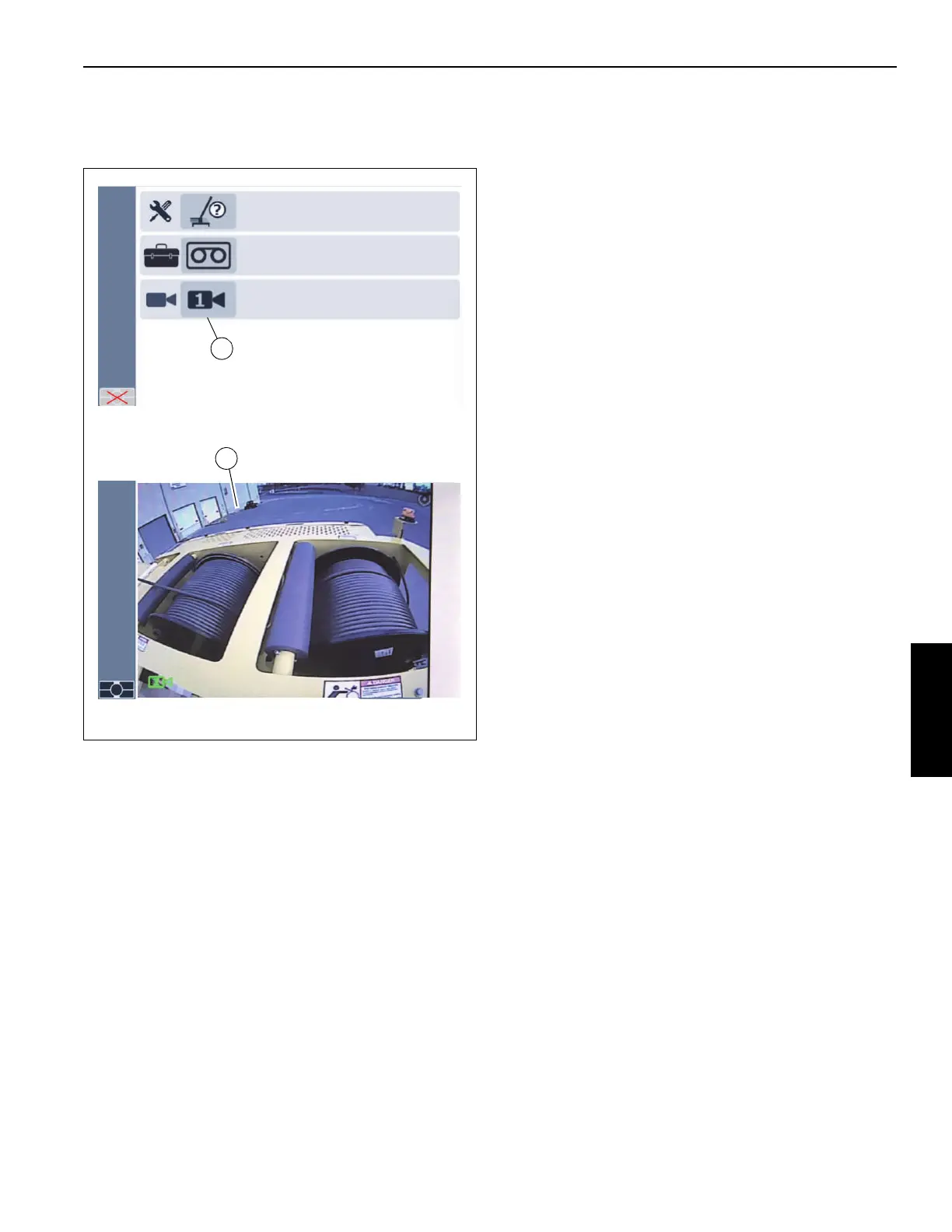

From the Menu Screen, select and confirm the Hoist Camera
Icon (1,
Figure
4-209) to open the f
ull screen view of the
hoist camera (2).
FIGURE
4-209
10254-58a
2
1
304
306
