MI 2893 / MI 2892 / MI 2885 E-Meter recorder (MI 2892/MI 2885)
103

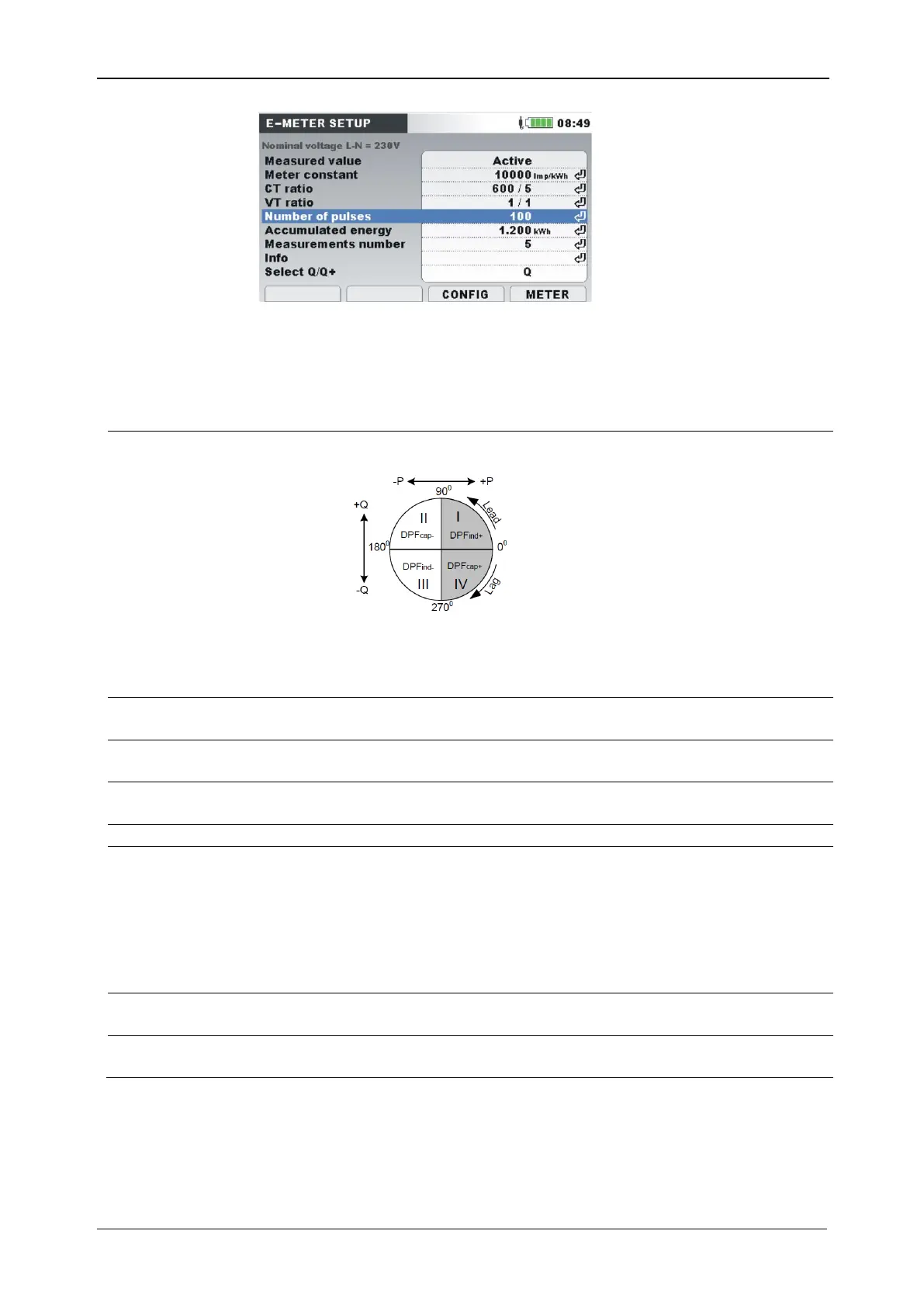

Figure 78: E-Meter Recorder setup menu
Table 83: E-Meter recorder setup settings description
Selection of E-Meter measured value, which is tested
(Active/Reactive).
Active: Q I + Q II + Q III + Q IV (combined)
Reactive: Q I + Q II + Q III + Q IV (QvFund / Qenergy)
Q - fundamental vector reactive power.
Q+ – reactive energy according IEEE 1459
E-Meter metrological constant (LED: imp/kWh; imp/kvarh;
Mechanical meter: Revs/kWh)
Current transformer ratio (applicable, when PQA measure primary
current and e-meter measure secondary current)
Voltage transformer ratio (applicable, when PQA measure primary
voltage and e-meter measure secondary current)
Number of pulses to be captured from E-Meter
Requested registered energy during accuracy measurements
Note: Number of pulses or Accumulated energy should be selected.
If you entered one value, the other one is automatically calculated.
Note: we suggest, that accuracy measurement takes at least 10 – 15
minutes (due to changeable load).
Number of consecutive measurements that are performed
automatically.
Information field for description of measurement place and tested E-
Meter
