MI 2893 / MI 2892 / MI 2885 Connection setup
142

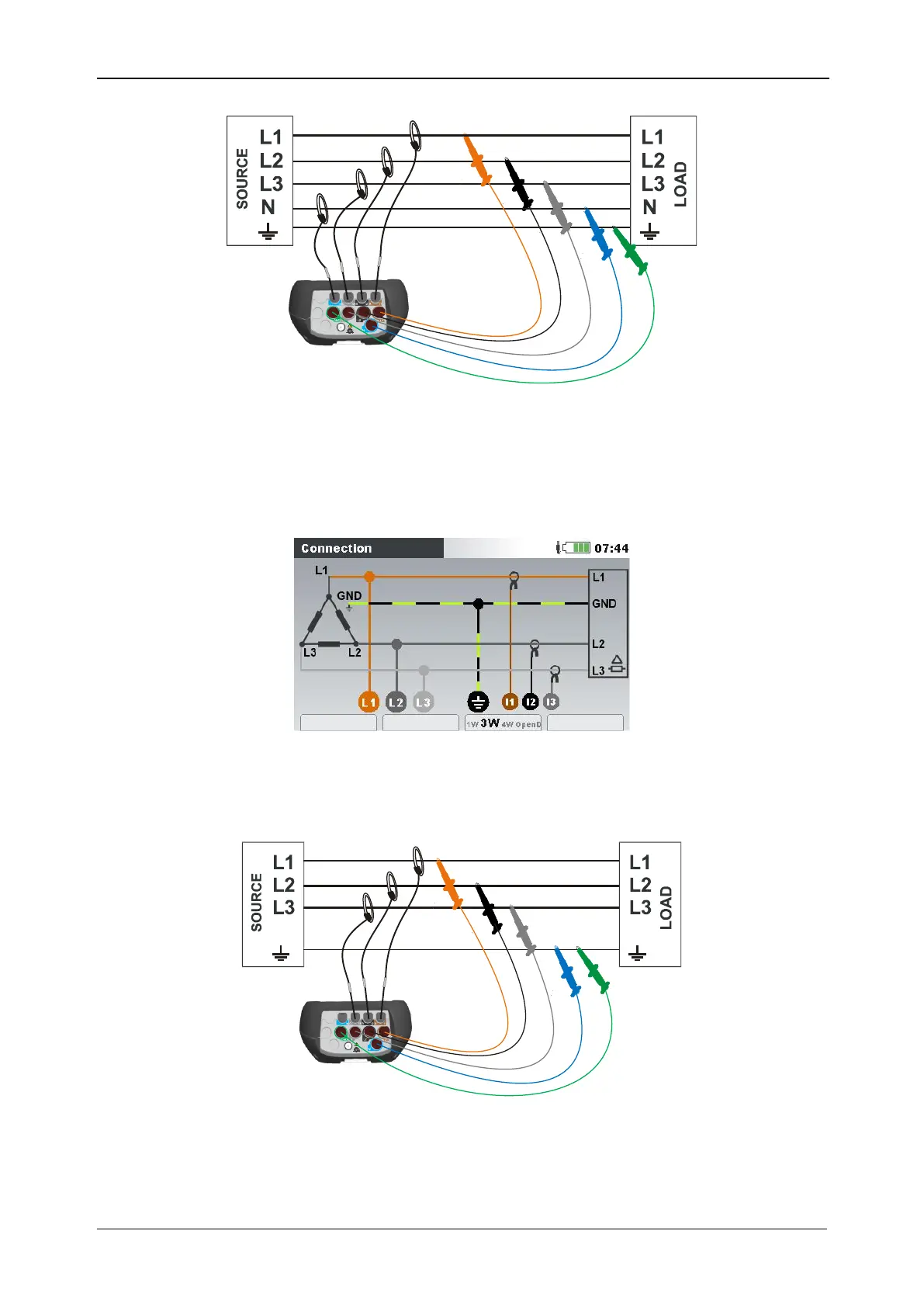

Figure 108: 3-phase 4-wire system
3-phase 3-wire system (3W)
In order to select this connection scheme, choose following connection on the instrument:
Figure 109: Choosing 3-phase 3-wire system on instrument
Instrument should be connected to the network according to figure below.
Figure 110: 3-phase 3-wire system
