MI 2893 / MI 2892 / MI 2885 Connection setup
143
Open Delta (Aaron) 3-wire system (OpenD)
In order to select this connection scheme, choose following connection on the instrument:

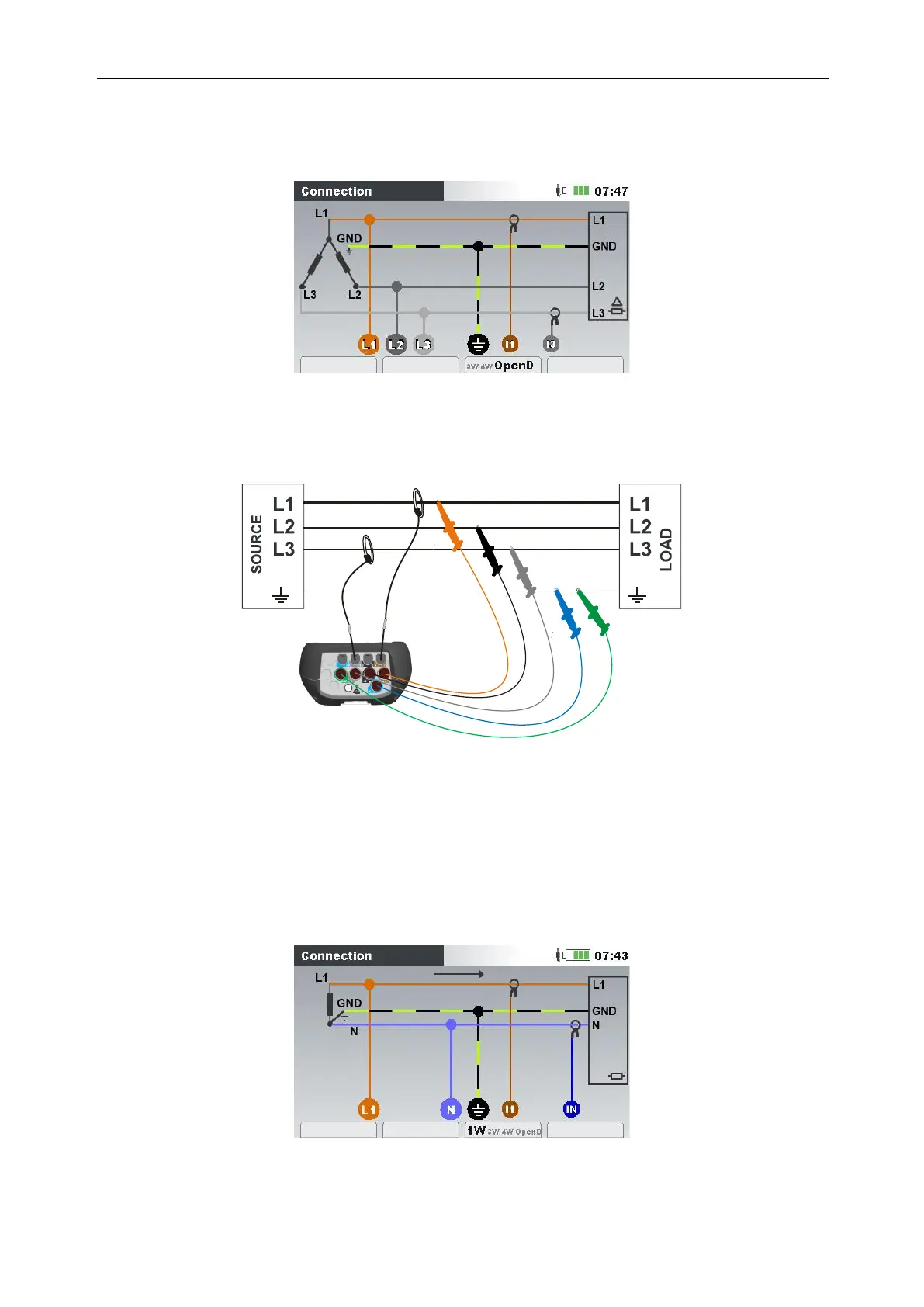

Figure 111: Choosing Open Delta (Aaron) 3-wire system on instrument
Instrument should be connected to the network according to figure below.
Figure 112: Open Delta (Aaron) 3-wire system
1-phase 3-wire system (1W)
In order to select this connection scheme, choose following connection on the instrument:
Figure 113: Choosing 1-phase 3-wire system on instrument
