MI 2893 / MI 2892 / MI 2885 Connection setup
144
Instrument should be connected to the network according to figure below.

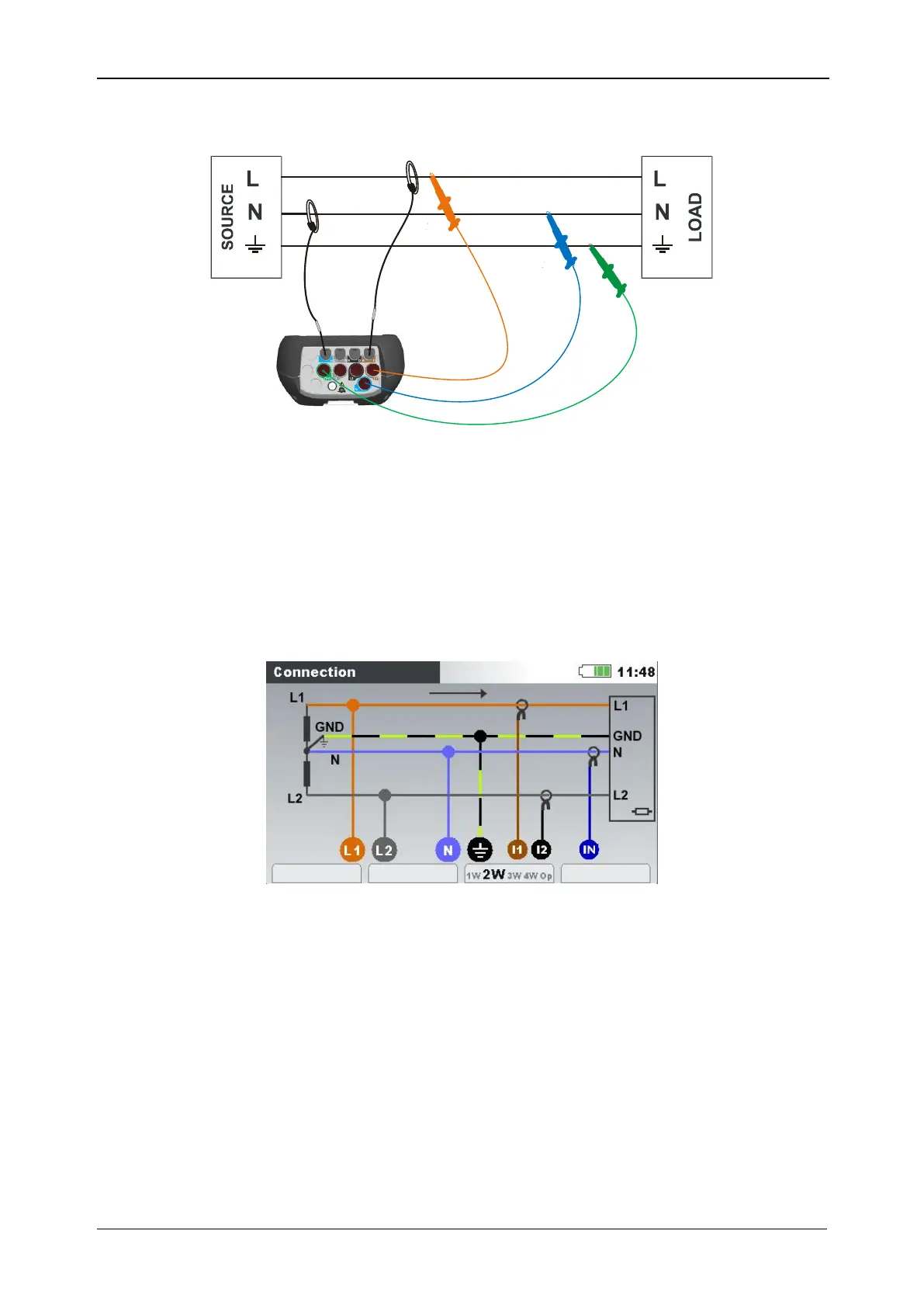

Figure 114: 1-phase 3-wire system
Note: In case of events capturing, it is recommended to connect unused voltage terminals to N voltage
terminal.
2-phase 4-wire system (2W)
In order to select this connection scheme, choose following connection on the instrument:
Figure 115: Choosing 2-phase 4-wire system on instrument
Instrument should be connected to the network according to figure below.
