MI 2893 / MI 2892 / MI 2885 Connection setup
145

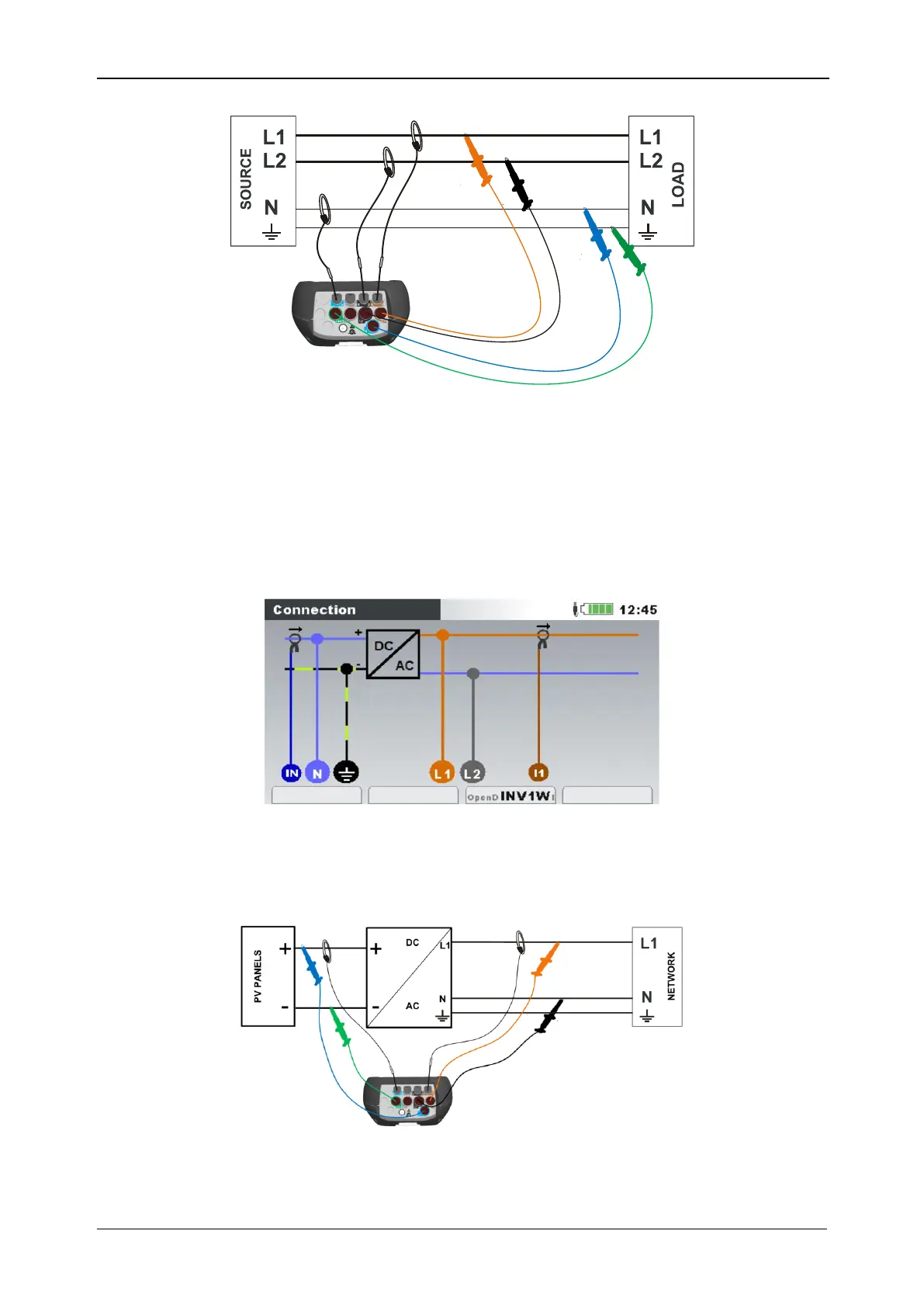

Figure 116: 2-phase 4-wire system
Note: In case of events capturing, it is recommended to connect unused voltage terminal to N voltage
terminal.
Single - phase Inverter (INV1W)
In order to select this connection scheme, choose following connection on the instrument:
Figure 117: Choosing single- phase Inverter system on instrument
Instrument should be connected to the network according to figure below.
Figure 118: Single – phase inverter system
