Minimum value: 0,0055 * U
nom
* sqrt(2)
Maximum value: 1 V
Phase/Neutral current limits:
Minimum value: 0.1 * sqrt(2) * I
nom
Maximum value: 1.5 * sqrt(2) * I
nom
Trigger type
PHASE:
U: Trigger on transients at active voltage (phase/line) channels
I: Trigger on transients at active phase current channels
NEUTRAL:
Un: Trigger on transients at Ground to Neutral voltage channel
In: Trigger on transients at Neutral current channel
Note:
Minimum current trigger selection: 10% *I
nom
* sqrt (2)
Maximum current trigger selection: 150%* I
nom
* sqrt (2)
Store mode
Store mode setup:
 Single – transient recording ends after first trigger
 Continuous (Max. 1500 rec.) – consecutive transient
recording until user stops the measurement or instrument
runs out of storage memory. Every consecutive transient
recording will be treated as a separate record.
By default, 200 records can be recorded. This value can be
changed, if necessary. More than 200 records can slow
down the instrument.
Table 65: Keys in Transient recorder setup screen

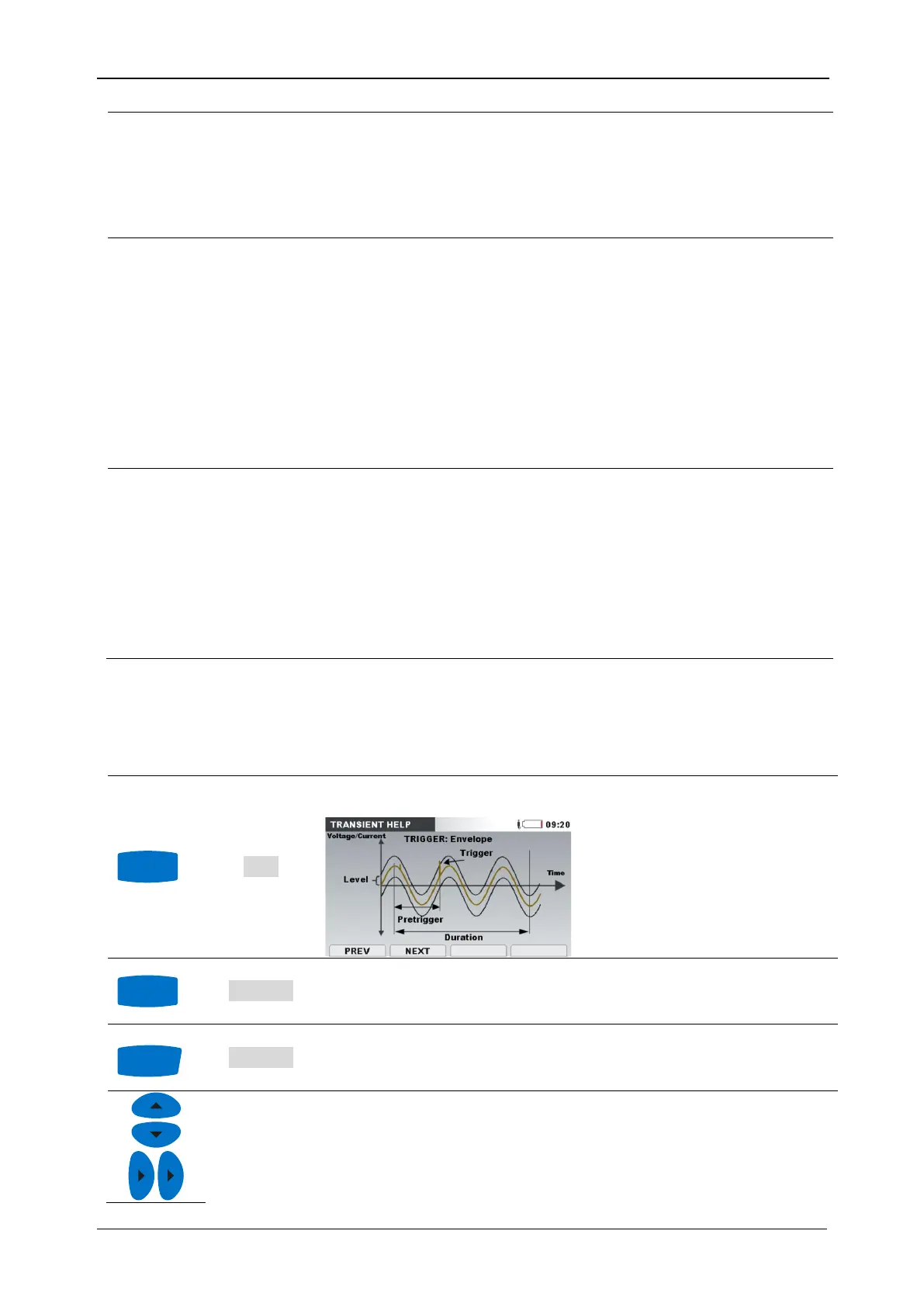

HELP
Show triggering help screens (valid for voltage and current) See 5.1.20
for details.
TRIG OFF
Deleting the trigger selection
CHECK C.
Check connection settings. See 3.23.1 for details.
Selects parameter to be changed.
F2
F3
F4
