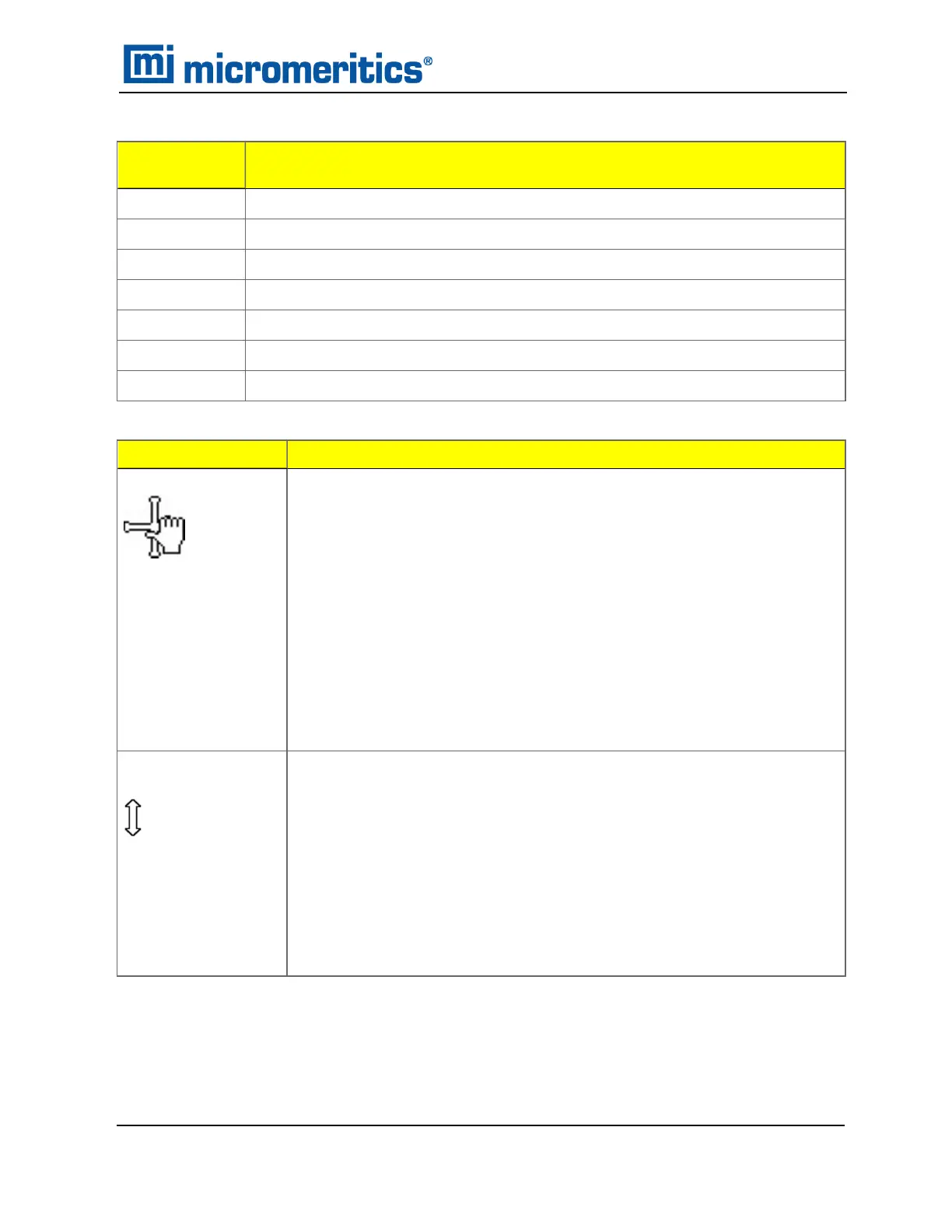

Schematic
Components
Description
1-3
Sample ports
4
P
0
port
5
Servo valve
6
Isolation valve
7,8,9,14
Inlet valves
10
Vacuum
11-13
Unrestricted vacuum sample ports
Analyzer Schematic Components
Icon or Symbol Description
Valve options
Open. Opens the selected valve.
Close. Closes the selected valve.
Pulse. Use to quickly turn the valve on and off allowing the operation to
proceed in small increments.
For Servo valve:
n
Set. Use to set the servo valve target pressure and dose or evacuate.
n
Open. Opens the servo valve. The valve symbol changes to green.
n
Close. Closes the servo valve. The valve symbol changes to solid
black.
Elevator options
Right-click the elevator icon, then select:
Raise. Select Raise to raise the elevator. When it is moving, press the
keyboard space bar to stop the movement (or right-click and select Stop
from the menu).
Lower. Select Lower to lower the elevator. When it is moving, press the
keyboard space bar to stop the movement (or right-click and select Stop
from the menu).
Stop. Stops the elevator from moving.
Schematic Shortcuts
Show Instrument Schematic
TriStar II Plus Operator Manual
303-42800-01 (Rev M ) — Sep 2023
2 - 21
