Pellerin Milnor Corporation
4.7.1.2 Digital Outputs
BNCLDT01.C04 0000248079 E.2 B.3 A.4 1/2/20 1:22 PM Released

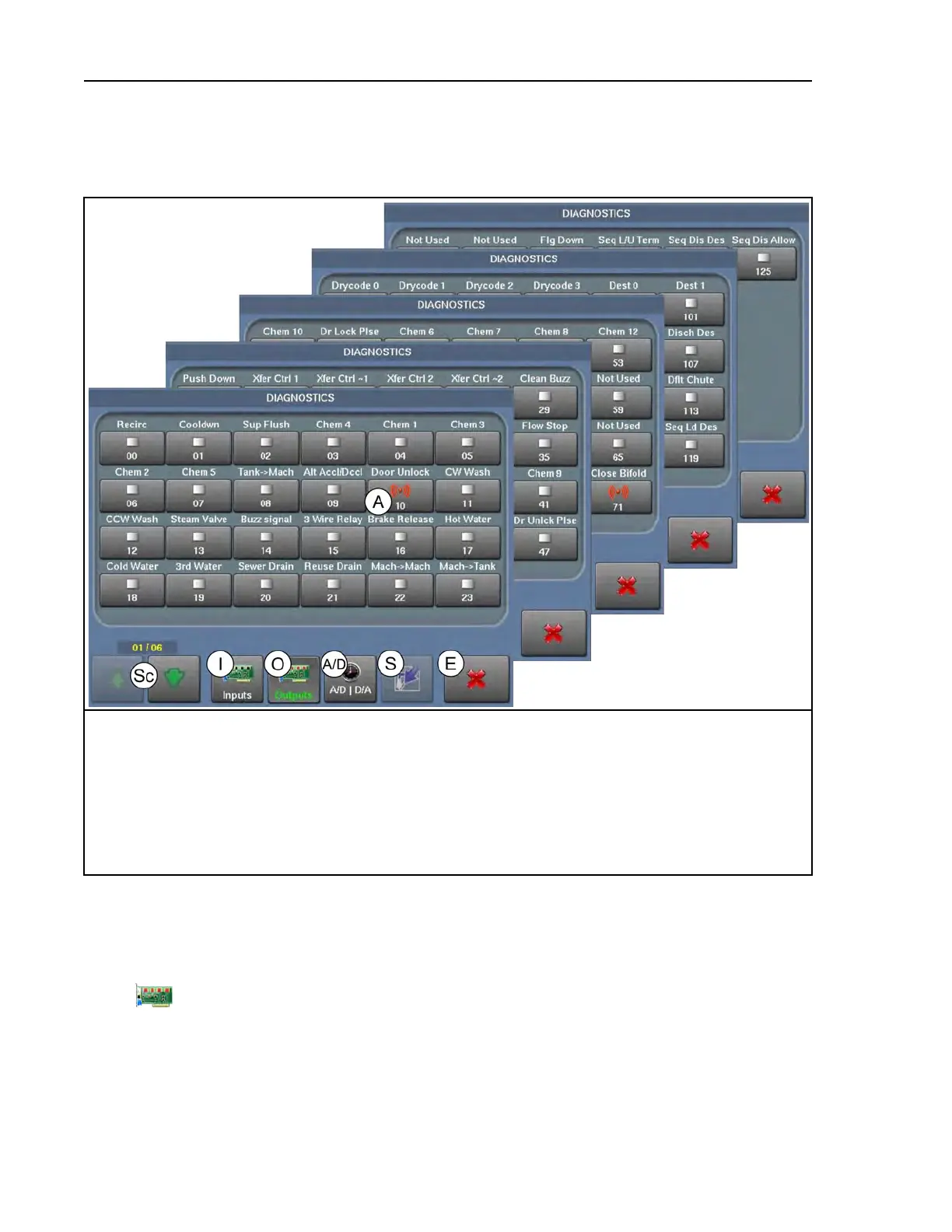

Figure 37. The Outputs Display
Legend
A...Example of an actuated output
A/D.View analog inputs and outputs
E...Exit (return to the Home display)
I...View the digital inputs
O...View the digital outputs (pictured)
S...Spraydown, currently unavailable on WTB machines
Sc..Scroll between pages to see more outputs
There are two ways to use digital outputs:
• When a formula is in progress, view the status of outputs in real time.
• When the machine is idle, manually actuate outputs to test them.
Touch
Outputs to view the digital outputs on the Diagnostics display (Figure 37, page 68).
Troubleshooting
