Pellerin Milnor Corporation 15
Language — Select the language that will appear on the displays. Currently, only the English
language option is available.
Type (Avoid modification) — Select the machine model number. This information is on the
name plate on the rear of the machine.
Speed Unit (Avoid modification) — Select the unit, either G’s or RPM, that the controller
uses to program and display cylinder speed.
Staph Guard
®
(Avoid modification) — Select whether this machine is a Staph Guard
®
pass-
through model.
Comm Port (Avoid modification and see note below) — Select the communications port
used by the processor board to communicate with the peripheral boards.
Port 3—Choose this value if the processor board is earlier than "Rev G."
Port 1—Choose this value if the processor board is "Rev G" or later.

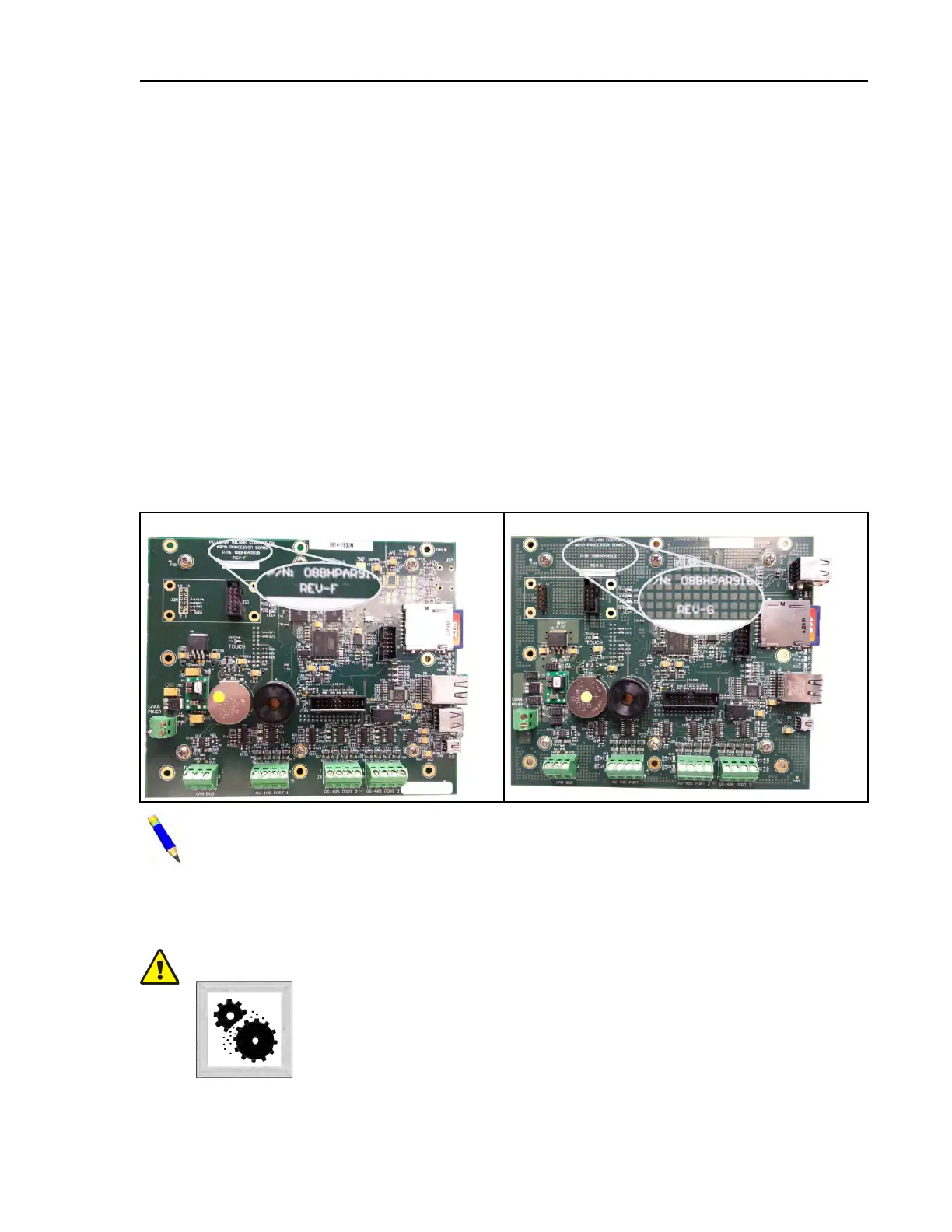

Figure 5. Processor Board Revisions
Revision F Processor Board
Revision G Processor Board
NOTE: This configure decision allows the Milnor
®
factory to support both new and old
machines. Do not change this configure decision from the original factory setting unless
instructed by the factory, if replacing the processor board.
Drain Code (Avoid modification) — Select the time for drain speed between two bath steps
and between a bath step and an extract step.
CAUTION: Inadequate drain time — can cause unnecessary machine wear.
� Do not select a drain code that provides less time at drain speed than
stated on the machine configuration nameplate.
